Material ID: 6AG1151-8AB01-7AB0

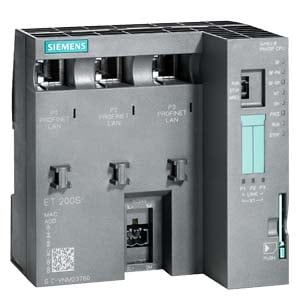

SIPLUS ET 200S IM 151-8 PN/DP CPU

The SIPLUS ET 200S IM 151-8 PN/DP CPU is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine.

Technical Features:

Commercial Benefits:

The SIPLUS ET 200S system offers the following benefits:

With SIPLUS extreme, you can ensure safe and reliable operation of your distributed I/O system, even in challenging environments.

    • Based on 6ES7151-8AB01-0AB0
    • Conformal coating for protection
    • Operating temperature: -40°C to +70°C
    • Start-up temperature: -25°C
    • 192 KB work memory
    • Internal PROFINET interface with three RJ45 ports
    • Can be used as IO Controller
    • Battery MMC not required
    • Modular scalability with up to 64 I/O modules
    • Flexible connection options via PROFINET or PROFIBUS
    • Comprehensive range of modules with various characteristics
    • Improved scalability in terms of functionality and price
    • Easy application with module and terminal box swapping during operation
    • Increased machine availability and productivity with "hot swapping"
    • Reliable operation in harsh ambient conditions with SIPLUS extreme
    • Protection against temperature extremes, humidity, condensation, and active substances
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces serial TTY0
Supporting protocol for PROFINET IOtrue
Input voltage DC28.8 V
Depth75 mm
Front built-in possiblefalse
Radio standard GPRSfalse
Supporting protocol for PROFINET CBAtrue
Supporting protocol for TCP/IPtrue
Supporting protocol for CANfalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Explosion safety category for dustNone
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
With pluggable modules, central modulestrue
Supporting protocol for INTERBUSfalse
With potential separationtrue
Number of HW-interfaces USB0
With pluggable modules, function and technology modulestrue
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Radio standard WLAN 802.11false
Supporting protocol for Foundation Fieldbusfalse
Appendant operation agent (Ex ib)false
With pluggable modules, otherstrue
With optical interfacefalse
Supporting protocol for LONfalse
Rail mounting possibletrue
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Width120 mm
Wall mounting/direct mountingtrue
Suitable for safety functionsfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
With pluggable modules, digital I/Otrue
Radio standard Bluetoothfalse
With pluggable modules, communication modulestrue
Supporting protocol for PROFIBUSfalse
Degree of protection (IP)IP20
Number of interfaces PROFINET3
Supporting protocol for SERCOSfalse
Number of HW-interfaces other0
Rack-assembly possiblefalse
Fieldbus connection over separate bus coupler possibletrue
With integrated power supplytrue
Height119.5 mm
With bus coupler for modular station connectiontrue
Number of slots63
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces RS-4220
System accessorytrue
Supporting protocol for other bus systemstrue
With pluggable modules, analogue I/Otrue
Radio standard GSMfalse
Supporting protocol for EtherNet/IPfalse
Type of voltage (input voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard UMTSfalse
Number of HW-interfaces wireless0
