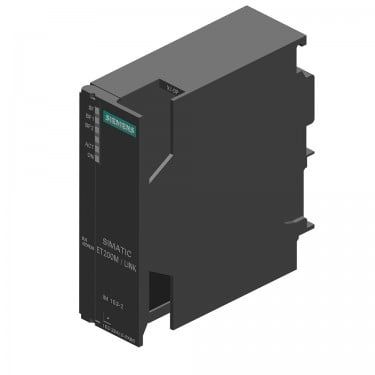

6AG1153-2BA10-7XB0

• SIPLUS ET 200M IM153-2 (*BA02) based on 6ES7153-2BA10-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, connection ET 200M IM 153-2 High Feature for max. 12 S7-300 modules with redundancy capability, time stamp.
• Suitable for isochronous mode.
• New features: up to 12 modules can be used.
• Slave Initiative for Drive ES and Switch ES.
• Expanded quantity structure for HART auxiliary variables.
• Operation of the 64-channel modules 32 signals/slot.
• SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20.
• Can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module.
• As many as 12 IO modules can be inserted into each station.
• The standardized setup of all modules considerably simplifies logistics and stocking of spare parts.
• SIPLUS extreme ensures reliable operation in the field.
• Regardless of whether you need an expanded temperature range, protection against humidity and condensation or physically, biologically and chemically active substances.
• With SIPLUS extreme you are safe and sound, even in harsh ambient conditions.
