Material ID: 6AG1155-5AA00-2AC0

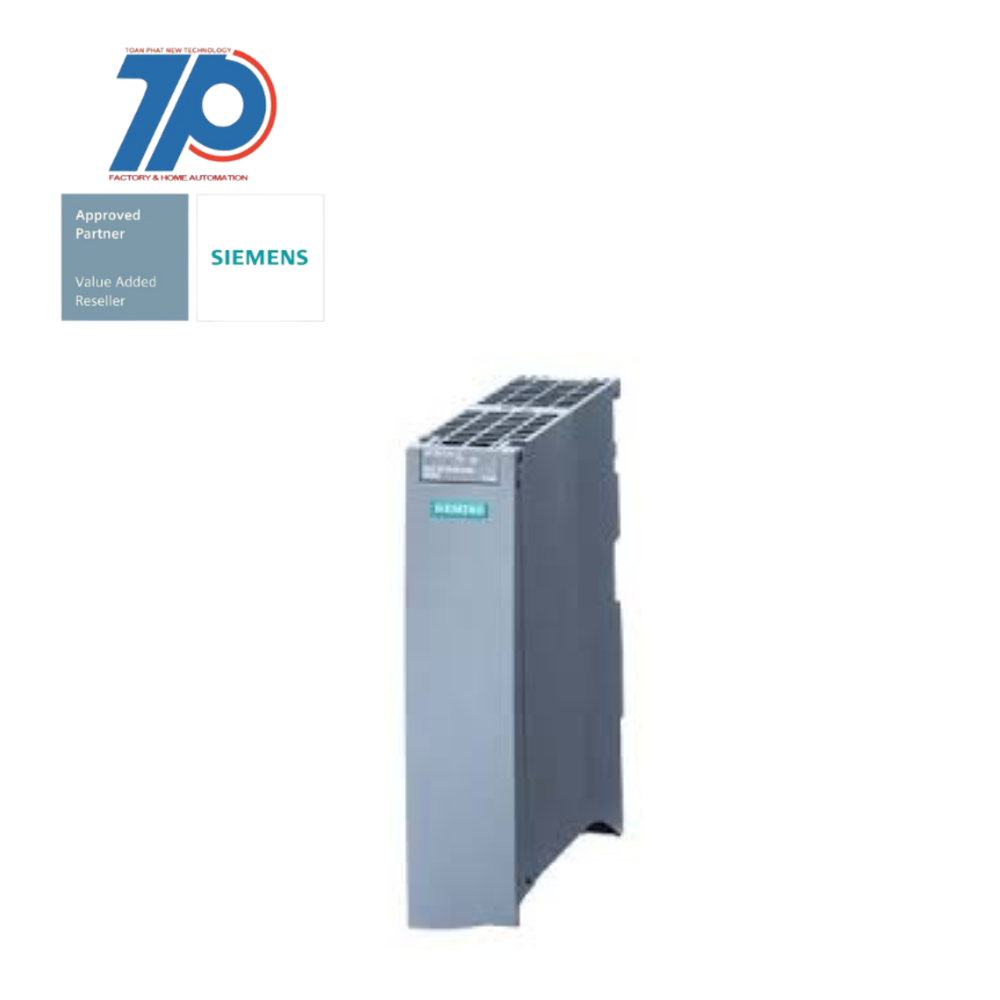

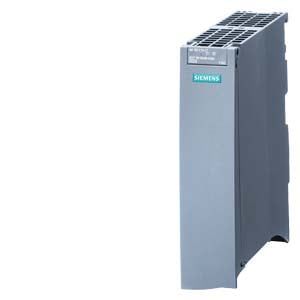

SIPLUS ET 200MP IM155-5 PN HF

The SIPLUS ET 200MP IM155-5 PN HF is a PROFINET IO device interface module for ET 200MP electronic modules. It is based on 6ES7155-5AA00-0AC0 and comes with conformal coating, allowing it to operate in temperatures ranging from -40°C to +60°C.

Key Features:

Product Description

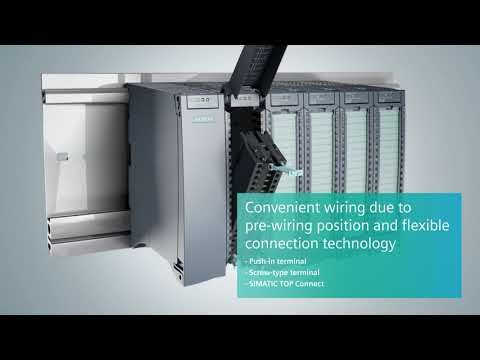

The SIMATIC ET 200MP is a modular and scalable I/O system with high channel density. It allows the use of various technology and AI modules. The system offers easy cabling, enabling quick and simple configuration of stations. It can be directly plugged into the controller, supporting both centralized and distributed configuration options and reducing the number of required components.

The system is flexible, versatile, and easy to commission in a user-friendly programming environment. It is well protected against external influences with an integrated shielding concept. The integrated diagnostics feature helps in quickly locating faults.

Key Benefits

SIPLUS extreme provides reliable operation for distributed I/O, even in unprotected or small control boxes. It ensures safe and sound operation in harsh ambient conditions.

    • Supports up to 12 IO modules without power supply
    • Supports up to 30 IO modules with additional power supply
    • Integrated 2-port switch
    • RJ45 shared device
    • MRP (Media Redundancy Protocol)
    • IRT (Isochronous Real-Time) >=0.25 ms
    • Isochronous mode firmware update
    • IM0...3 (Integrated Motion)
    • Prioritized run-up S2 redundancy
    • Shared device
    • Space-saving and easy-to-install solution for I/Os
    • Reliable operation in harsh ambient conditions
    • Expanded temperature range
    • Protection against humidity, condensation, and physically, biologically, and chemically active substances
    • Maximum flexibility with digital and analog inputs/outputs and motor starters for drives
    • Siemens as a reliable partner in the future, utilizing key technologies like artificial intelligence
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Rail mounting possibletrue
Radio standard eGPRSfalse
Rack-assembly possiblefalse
Radio standard GSMfalse
Radio standard Bluetoothfalse
Front built-in possiblefalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for DeviceNet Safetyfalse
IO link masterfalse
Degree of protection (IP)IP20
Supporting protocol for other bus systemsfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Radio standard GPRSfalse
Suitable for safety functionsfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET IOtrue
Appendant operation agent (Ex ia)false
Depth120 mm
Wall mounting/direct mountingfalse
Supporting protocol for KNXfalse
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for Modbusfalse
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
With potential separationtrue
Supporting protocol for ASIfalse
Appendant operation agent (Ex ib)false
Supporting protocol for INTERBUSfalse
Supporting protocol for DeviceNetfalse
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Width35 mm
Height155 mm
Supporting protocol for PROFIsafefalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard LTEfalse
Supply voltage DC28.8 V
Supply voltage DC19.2 V
Supporting protocol for PROFINET CBAfalse
Supporting protocol for LONfalse
Supporting protocol for TCP/IPtrue
