Material ID: 6AG1155-5AA01-7AB0

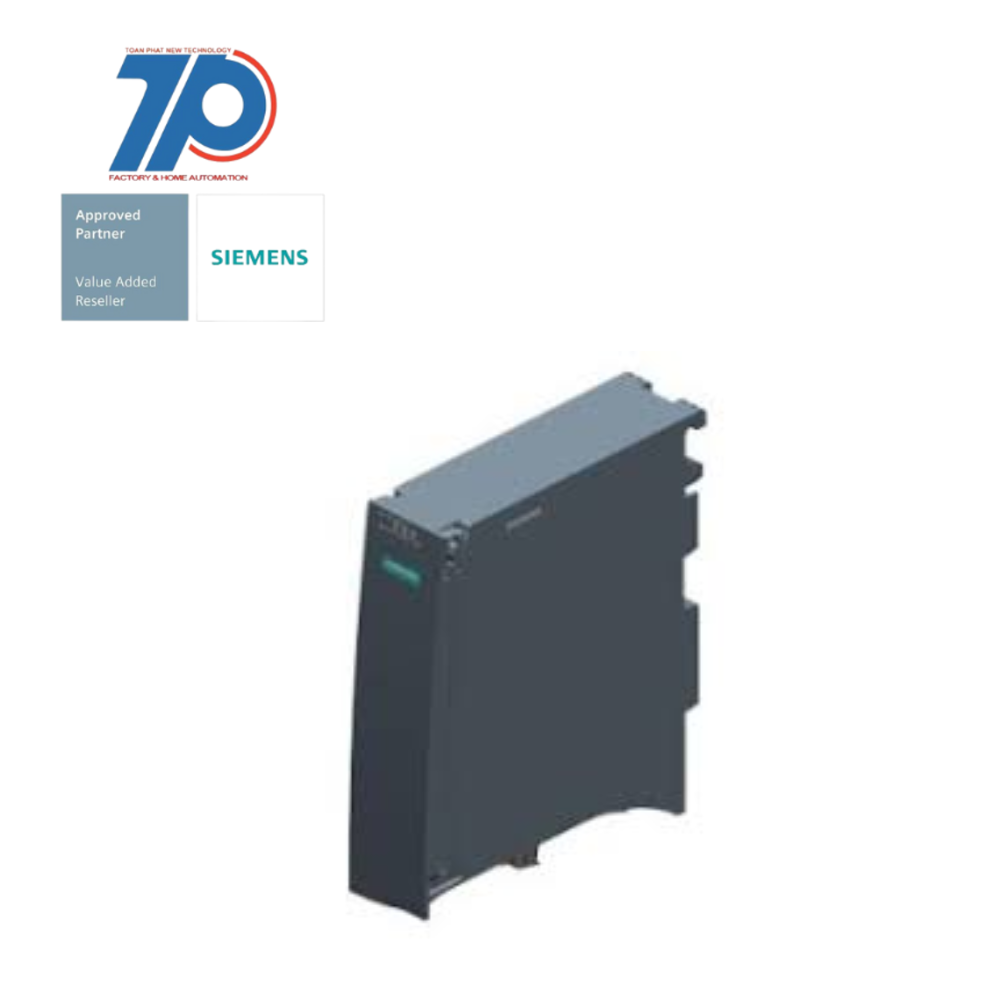

SIPLUS ET 200MP IM155-5 PN ST

SIPLUS ET 200MP IM155-5 PN ST is a PROFINET IO device interface module for ET 200MP electronic modules. It is based on 6ES7155-5AA01-0AB0 and comes with conformal coating, allowing it to operate in temperatures ranging from -40°C to +70°C. The module supports up to 12 IO modules without a power supply and up to 30 IO modules with an additional power supply. It features an integrated 2-port switch and an RJ45 shared device. It also supports MRP, IRT >=0.25 ms, isochronous mode FW update, and I&M0...3. The module has a response time of 500 ms.

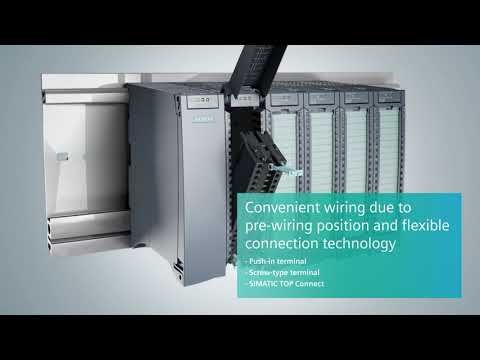

SIMATIC ET 200MP

SIMATIC ET 200MP is a modular and scalable I/O system with high channel density. It allows the use of multiple technology and AI modules. The system offers easy cabling, enabling quick and simple configuration of stations. It can be directly plugged into the controller, supporting both centralized and distributed configuration. This reduces the overall number of components required. The system is flexible, versatile, and can be easily commissioned in a user-friendly programming environment. It is well protected against external influences with an integrated shielding concept. Siemens provides the SIMATIC ET 200MP as a space-saving and easy-to-install solution for I/Os. The system includes integrated diagnostics for quick fault location. It supports digital and analog inputs/outputs and motor starters for drives, providing maximum flexibility for the modular I/O system.

SIPLUS extreme

SIPLUS extreme ensures reliable operation in the field for distributed I/O, whether it is unprotected or installed in small control boxes. It offers protection against harsh ambient conditions, including an expanded temperature range, humidity and condensation, and exposure to physically, biologically, and chemically active substances. With SIPLUS extreme, you can be confident in the safety and reliability of your I/O system, even in challenging environments.

Siemens, as an industry expert, is continuously developing new business segments and leveraging key technologies like artificial intelligence. This makes Siemens a reliable partner for the future.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE

    With potential separationtrue
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Supporting protocol for DeviceNet Safetyfalse
    IO link masterfalse
    Rack-assembly possiblefalse
    Radio standard WLAN 802.11false
    Front built-in possiblefalse
    Radio standard GSMfalse
    Radio standard LTEfalse
    Supporting protocol for SafetyBUS pfalse
    Suitable for safety functionsfalse
    Radio standard Bluetoothfalse
    Supporting protocol for SUCONETfalse
    Supporting protocol for ASIfalse
    Supporting protocol for PROFINET IOtrue
    Radio standard GPRSfalse
    Radio standard eGPRSfalse
    Fieldbus connection over separate bus coupler possiblefalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Supporting protocol for other bus systemsfalse
    Supporting protocol for CANfalse
    Supporting protocol for DeviceNetfalse
    System accessorytrue
    Width35 mm
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for PROFIsafetrue
    Appendant operation agent (Ex ib)false
    Wall mounting/direct mountingfalse
    Supporting protocol for INTERBUSfalse
    Supply voltage DC28.8 V
    Supply voltage DC19.2 V
    Supporting protocol for PROFINET CBAfalse
    Rail mounting possibletrue
    Appendant operation agent (Ex ia)false
    Supporting protocol for KNXfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for Modbusfalse
    Height147 mm
    Supporting protocol for Data-Highwayfalse
    Degree of protection (IP)IP20
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for LONfalse
    Radio standard UMTSfalse
    Supporting protocol for TCP/IPtrue
    Depth129 mm
    Supporting protocol for EtherNet/IPfalse
