Material ID: 6AG1193-4CA30-2AA0SIPLUS ET 200S TM-E15C24-A1

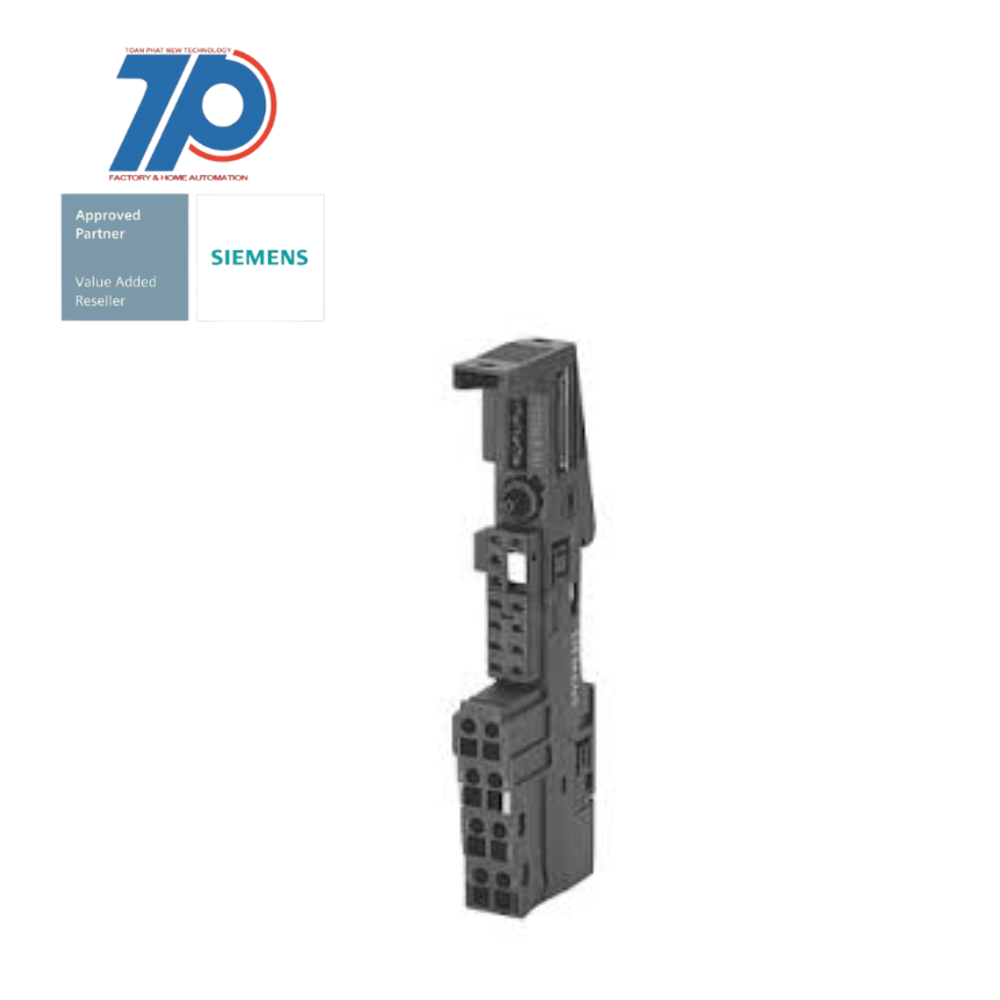

SIPLUS ET 200S TM-E15C24-A1

Technical Features:

Product Description:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping". The conformal coating protects SIPLUS extreme modules from special environmental influences such as biologically, chemically and physically active substances. Thus even your basic automation system is prepared for use in challenging environments.

    • Based on 6ES7193-4CA30-0AA0
    • Conformal coating
    • Temperature range: -40°C to +70°C
    • 5 units per packing unit
    • For electronic modules with 15mm width
    • Spring-loaded terminals
    • 2x4 terminal connections with terminal access to AUX1
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

System accessorytrue
Output voltage AC 60 Hz24 V
Input voltage AC 50 Hz24 V
Width15 mm
With pluggable modules, function and technology modulestrue
Appendant operation agent (Ex ia)false
Input voltage AC 50 Hz230 V
With pluggable modules, communication modulestrue
Number of slots2
Output voltage AC 60 Hz230 V
Rail mounting possibletrue
Output voltage AC 50 Hz230 V
Output voltage DC120 V
Input voltage AC 60 Hz24 V
With pluggable modules, analogue I/Otrue
Output voltage AC 50 Hz24 V
Output voltage DC24 V
Max. output current DC10 A
Max. output current AC 60 Hz10 A
With integrated power supplyfalse
Max. input current AC 60 Hz10 A
With pluggable modules, otherstrue
Height132 mm
Appendant operation agent (Ex ib)false
Max. input current DC10 A
With pluggable modules, digital I/Otrue
Wall mounting/direct mountingtrue
Front built-in possiblefalse
With pluggable modules, central modulesfalse
Input voltage DC120 V
Depth43 mm
Rack-assembly possiblefalse
Max. output current AC 50 Hz10 A
Type of output voltageAC/DC
Type of voltage (input voltage)AC/DC
Input voltage DC24 V
Input voltage AC 60 Hz230 V
Max. input current AC 50 Hz10 A
Suitable for safety functionsfalse
