Material ID: 6AG1193-4CA40-2AA0

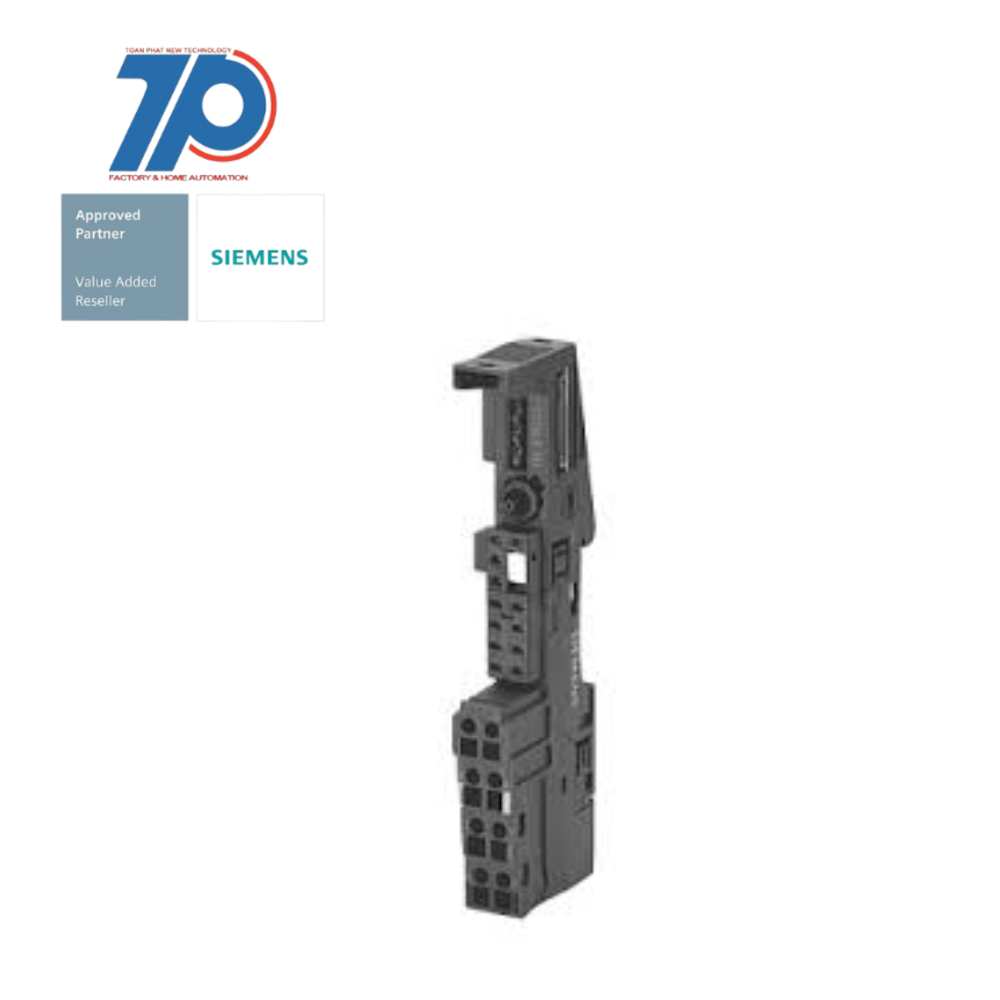

SIPLUS ET 200S TM-E15S26-A1

SIPLUS ET 200S TM-E15S26-A1 is a rugged electronic module designed for installation in small control boxes near the machine. It is based on 6ES7193-4CA40-0AA0 and features a conformal coating, making it suitable for use in challenging environments with temperatures ranging from -40°C to +70°C.

Technical Features:

Commercial Benefits:

With SIPLUS ET 200S TM-E15S26-A1, even your basic automation system is prepared for use in challenging environments.

    • Modularly scalable, distributed I/O system
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Can be expanded with up to 64 I/O modules
    • Modules available with standard functions (ST), extended functions and diagnostics (HF High Feature/ HS High Speed)
    • 2x6 terminal connections with terminal access to AUX1
    • Improved scalability in terms of functionality and price
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine with "hot swapping"
    • Conformal coating protects against biologically, chemically, and physically active substances
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Type of voltage (input voltage)AC/DC
Input voltage AC 50 Hz230 V
Output voltage DC24 V
Max. output current DC10 A
Max. output current AC 50 Hz10 A
Rack-assembly possiblefalse
Front built-in possiblefalse
Max. input current AC 50 Hz10 A
With pluggable modules, digital I/Otrue
With pluggable modules, communication modulestrue
Number of slots2
Depth43 mm
Max. input current AC 60 Hz10 A
Appendant operation agent (Ex ia)false
Input voltage DC24 V
Output voltage AC 60 Hz24 V
With pluggable modules, central modulesfalse
Height157 mm
Output voltage DC120 V
Max. input current DC10 A
Suitable for safety functionsfalse
Input voltage AC 60 Hz24 V
Output voltage AC 50 Hz230 V
System accessorytrue
With pluggable modules, otherstrue
Wall mounting/direct mountingtrue
Type of output voltageAC/DC
With pluggable modules, analogue I/Otrue
Input voltage DC120 V
Output voltage AC 50 Hz24 V
Width15 mm
Output voltage AC 60 Hz230 V
With integrated power supplyfalse
Max. output current AC 60 Hz10 A
With pluggable modules, function and technology modulestrue
Rail mounting possibletrue
Appendant operation agent (Ex ib)false
Input voltage AC 50 Hz24 V
Input voltage AC 60 Hz230 V
