Material ID: 6AG1193-4CB10-7AA0

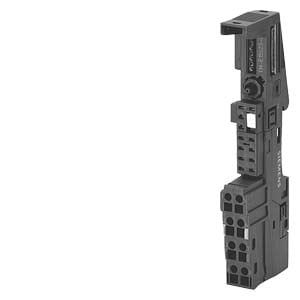

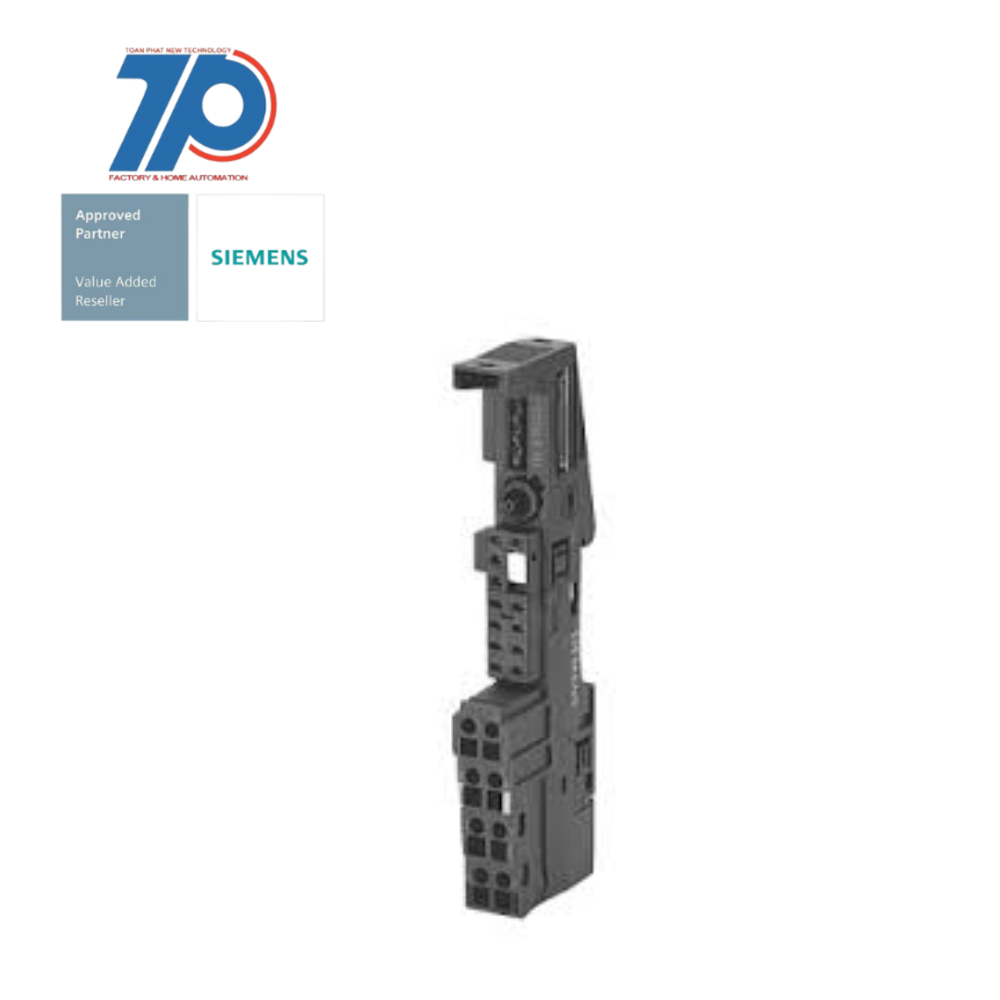

SIPLUS ET 200S TM-E15C23-0
SIPLUS ET 200S TM-E15C23-0 is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It is based on 6ES7193-4CB10-0AA0 and features conformal coating for protection against special environmental influences.
Technical Features:
Commercial Benefits:
The SIPLUS ET 200S system offers modular scalability and can be expanded with up to 64 I/O modules, allowing for flexible configuration. It can be directly plugged into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. The system provides a comprehensive range of modules, including those with extended functions and diagnostics. This improves scalability in terms of functionality and price.
The ET 200S system is known for its ease of application, allowing for module and terminal box swapping during operation. This "hot swapping" capability significantly increases machine availability and productivity.
With its conformal coating, SIPLUS ET 200S TM-E15C23-0 is protected against biologically, chemically, and physically active substances. This makes it suitable for use in challenging environments, ensuring the reliability of your basic automation system.
- Temperature Range: 0...+70 °C
- Number of Units per Packing Unit: 5
- For Electronic Modules with 15 mm Width
- Spring-loaded Terminals
- 2x3 Terminal Connections without Terminal Access to AUX1
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Max. output current DC | 10 A |
| Type of output voltage | AC/DC |
| Rail mounting possible | true |
| Max. input current AC 50 Hz | 10 A |
| Rack-assembly possible | false |
| Max. output current AC 50 Hz | 10 A |
| Depth | 43 mm |
| Input voltage AC 60 Hz | 230 V |
| Appendant operation agent (Ex ib) | false |
| Wall mounting/direct mounting | true |
| With integrated power supply | false |
| Appendant operation agent (Ex ia) | false |
| System accessory | true |
| With pluggable modules, central modules | false |
| Input voltage AC 50 Hz | 24 V |
| Output voltage AC 60 Hz | 24 V |
| Output voltage DC | 120 V |
| Width | 15 mm |
| Height | 120 mm |
| With pluggable modules, communication modules | true |
| Input voltage AC 60 Hz | 24 V |
| Suitable for safety functions | false |
| Max. input current DC | 10 A |
| Output voltage AC 50 Hz | 24 V |
| Max. output current AC 60 Hz | 10 A |
| Type of voltage (input voltage) | AC/DC |
| Input voltage DC | 24 V |
| Output voltage AC 60 Hz | 230 V |
| Input voltage AC 50 Hz | 230 V |
| With pluggable modules, analogue I/O | true |
| Front built-in possible | false |
| Number of slots | 2 |
| With pluggable modules, digital I/O | true |
| Max. input current AC 60 Hz | 10 A |
| With pluggable modules, others | true |
| Output voltage DC | 24 V |
| With pluggable modules, function and technology modules | true |
| Output voltage AC 50 Hz | 230 V |
| Input voltage DC | 120 V |
