Material ID: 6AG1193-4CD20-2AA0

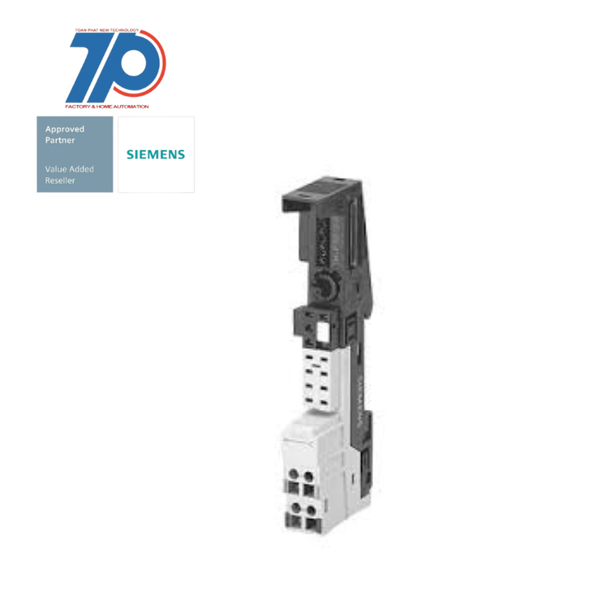

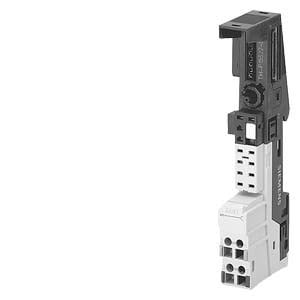

SIPLUS ET 200S TM-P15S23-A0
SIPLUS ET 200S TM-P15S23-A0 is a power module with a width of 15 mm. It is based on 6ES7193-4CD20-0AA0 and is equipped with conformal coating. The module is designed to operate in a temperature range of -40°C to +70°C.
Technical Features:
Commercial Benefits:
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules with various characteristics
- Modules available with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
- Easy application with the capability of swapping modules and terminal boxes during operation
- Improved scalability in terms of functionality and price
- Increased availability and productivity of the machine due to "hot swapping"
- Conformal coating protects the module from special environmental influences
- Prepared for use in challenging environments
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| System accessory | true |
| Width | 15 mm |
| Appendant operation agent (Ex ia) | false |
| Input voltage AC 50 Hz | 230 V |
| With pluggable modules, digital I/O | false |
| Number of slots | 2 |
| Input voltage DC | 48 V |
| Rail mounting possible | true |
| With pluggable modules, function and technology modules | false |
| With pluggable modules, communication modules | false |
| Input voltage AC 60 Hz | 120 V |
| With pluggable modules, analogue I/O | false |
| With integrated power supply | false |
| With pluggable modules, others | true |
| Height | 132 mm |
| Appendant operation agent (Ex ib) | false |
| Max. input current DC | 10 A |
| Input voltage AC 50 Hz | 120 V |
| Wall mounting/direct mounting | true |
| Front built-in possible | false |
| With pluggable modules, central modules | false |
| Depth | 43 mm |
| Rack-assembly possible | false |
| Type of voltage (input voltage) | AC/DC |
| Input voltage DC | 24 V |
| Input voltage AC 60 Hz | 230 V |
| Suitable for safety functions | false |
