Material ID: 6AG1193-4CD30-2AA0

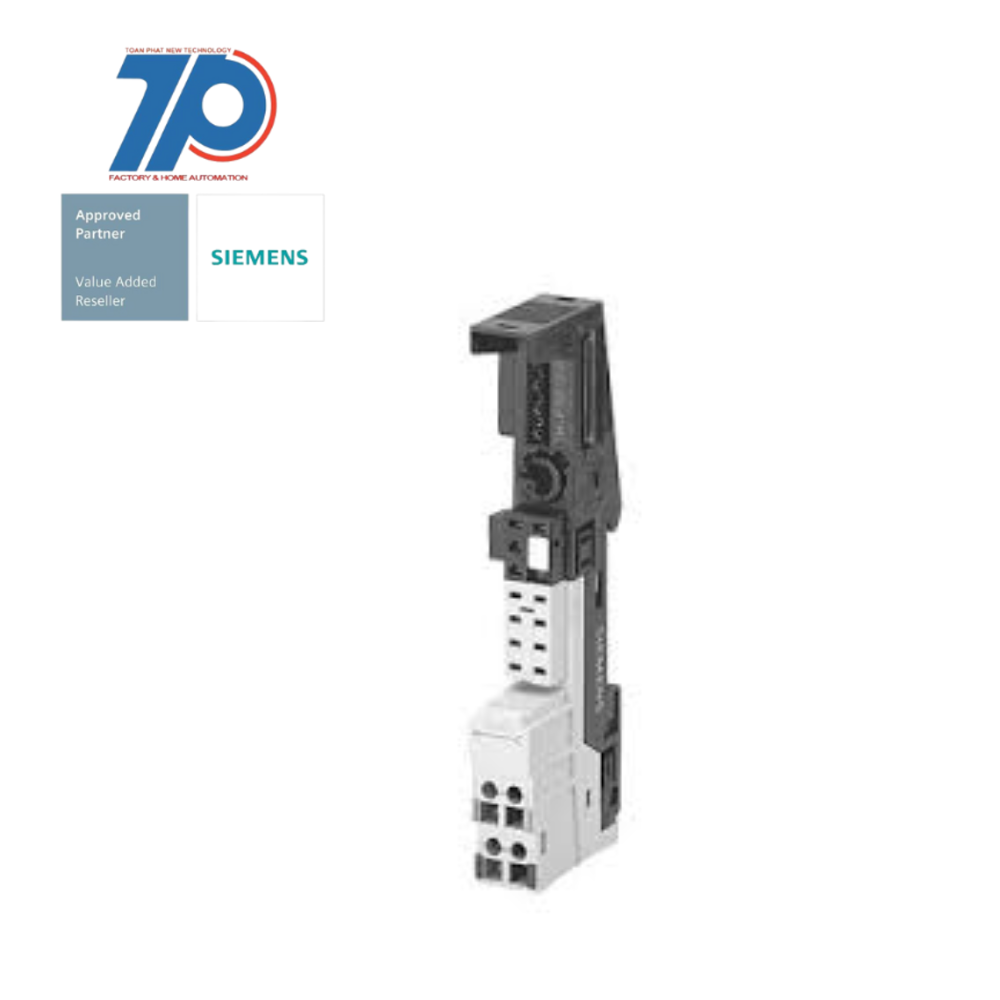

SIPLUS ET 200S TM-P15C23-A0
SIPLUS ET 200S TM-P15C23-A0 is a power module with the following technical features:
SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the following benefits:
The SIPLUS ET 200S TM-P15C23-A0 with conformal coating ensures that your basic automation system is prepared for use in challenging environments, protecting it from biologically, chemically, and physically active substances.
- Based on 6ES7193-4CD30-0AA0
- Conformal coating for protection against special environmental influences
- Operating temperature range: -40°C to +70°C
- 15 mm width
- Spring-loaded terminals (cage clamp)
- 2x3 terminal connections with terminal access to AUX1
- AUX1 interrupted
- Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules in any combination
- Comprehensive range of modules with standard functions (ST) and extended functions and diagnostics (HF High Feature/ HS High Speed)
- Easy application with the capability of swapping modules and terminal boxes during operation
- Increased availability and productivity through "hot swapping"
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Height | 132 mm |
| Wall mounting/direct mounting | true |
| Appendant operation agent (Ex ia) | false |
| Input voltage AC 60 Hz | 120 V |
| Width | 15 mm |
| Input voltage AC 50 Hz | 230 V |
| With pluggable modules, digital I/O | false |
| Suitable for safety functions | false |
| With pluggable modules, central modules | false |
| With pluggable modules, others | true |
| Front built-in possible | false |
| With pluggable modules, analogue I/O | false |
| With integrated power supply | false |
| Input voltage DC | 48 V |
| Rail mounting possible | true |
| With pluggable modules, communication modules | false |
| Input voltage AC 50 Hz | 120 V |
| Rack-assembly possible | false |
| Type of voltage (input voltage) | AC/DC |
| With pluggable modules, function and technology modules | false |
| Appendant operation agent (Ex ib) | false |
| Depth | 43 mm |
| Number of slots | 2 |
| Input voltage AC 60 Hz | 230 V |
| Max. input current DC | 10 A |
| System accessory | true |
| Input voltage DC | 24 V |
