Material ID: 6AG1193-4CE10-2AA0

Technical Features:

Product Description:

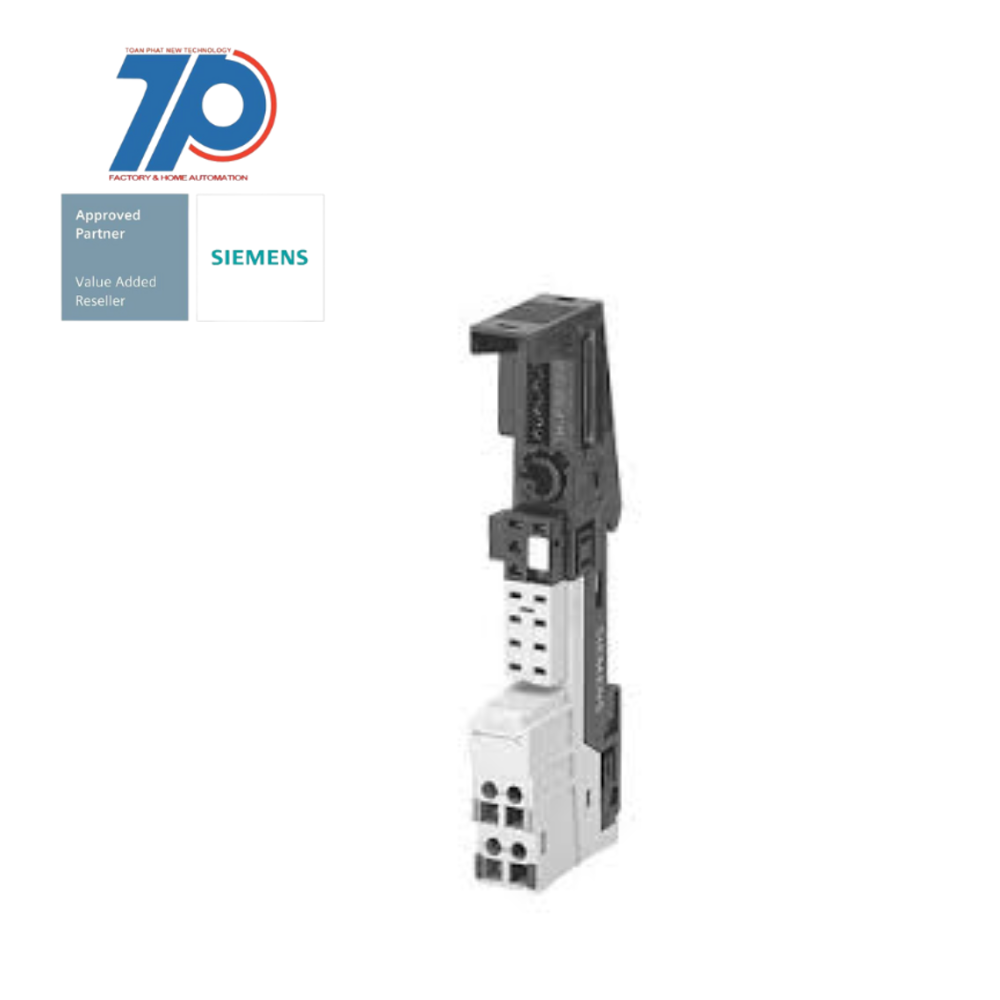

The SIPLUS ET 200S TM-P15C22-01 is a power module designed for use in challenging environments. It is equipped with conformal coating, which protects it from biologically, chemically, and physically active substances. With a temperature range of -40…+70 °C, it can withstand extreme temperatures. The module has a compact design with a width of 15 mm and features spring-loaded terminals (cage clamp) for easy installation.

Commercial Benefits:

The SIMATIC ET 200S is a modularly scalable, distributed I/O system that is ideal for installation in small control boxes near the machine. It offers flexibility in terms of connectivity, as the modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. The system supports up to 64 I/O modules, allowing for a comprehensive range of configurations. Additionally, the availability and productivity of the machine are increased thanks to the "hot swapping" capability, which allows for module and terminal box replacement during operation.

By choosing the SIPLUS ET 200S TM-P15C22-01, you can ensure that your basic automation system is prepared for use in challenging environments, providing reliable performance and protection against environmental influences.

    • Product Name: SIPLUS ET 200S TM-P15C22-01
    • Model Number: 6ES7193-4CE10-0AA0
    • Temperature Range: -40…+70 °C
    • Width: 15 mm
    • Terminal Type: Spring-loaded terminals (cage clamp)
    • Terminal Connections: 2x2
    • Terminal Access: No terminal access to AUX1
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, otherstrue
With pluggable modules, digital I/Ofalse
Max. input current DC10 A
Type of voltage (input voltage)AC/DC
Input voltage DC24 V
With pluggable modules, analogue I/Ofalse
Width15 mm
Input voltage AC 50 Hz230 V
System accessorytrue
Rail mounting possibletrue
Suitable for safety functionsfalse
Input voltage AC 50 Hz120 V
Input voltage AC 60 Hz120 V
Appendant operation agent (Ex ia)false
Rack-assembly possiblefalse
With integrated power supplyfalse
Height119.5 mm
Depth43 mm
With pluggable modules, function and technology modulesfalse
Front built-in possiblefalse
Number of slots2
Wall mounting/direct mountingtrue
With pluggable modules, central modulesfalse
Input voltage AC 60 Hz230 V
Input voltage DC48 V
With pluggable modules, communication modulesfalse
Appendant operation agent (Ex ib)false
