6AG1193-6BP00-7BA0

Thương hiệu: Siemens

Loại: ET200SP

MSP: 6AG1193-6BP00-7BA0

Liên hệ

Cam kết bán hàng

Material ID: 6AG1193-6BP00-7BA0

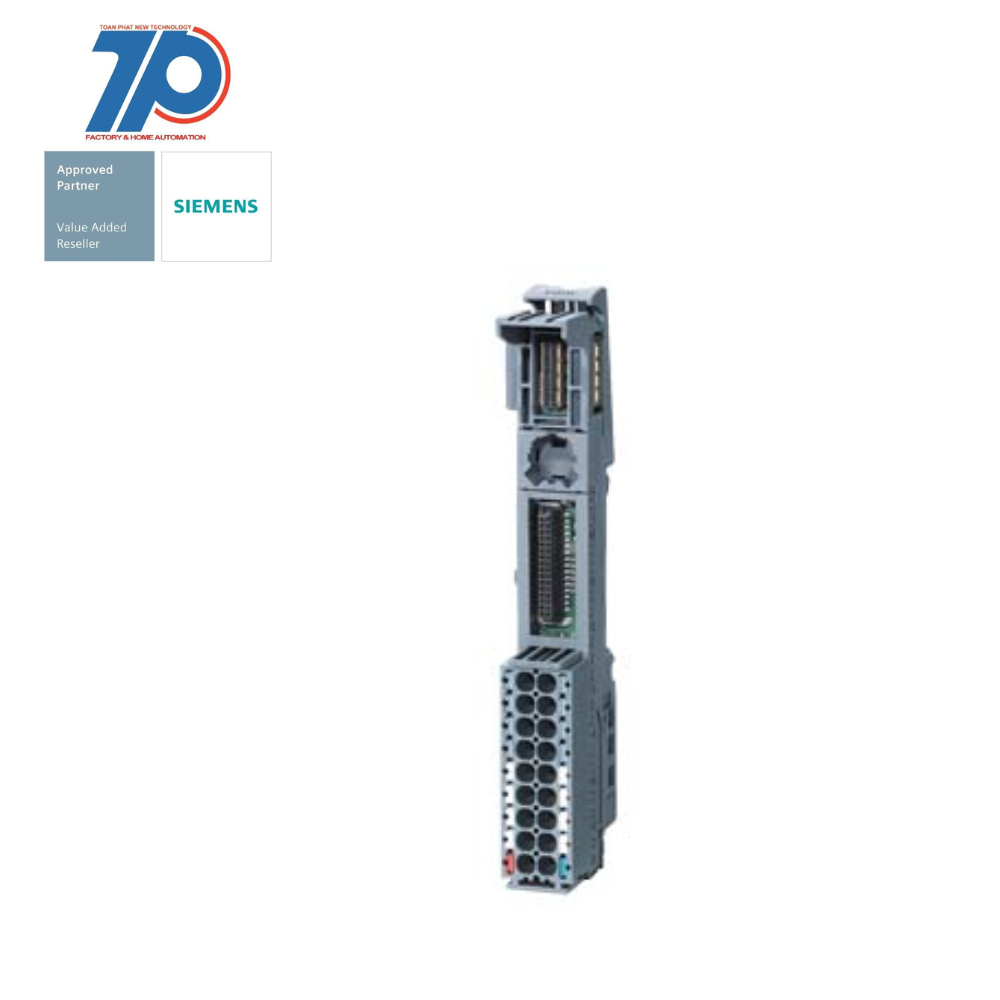

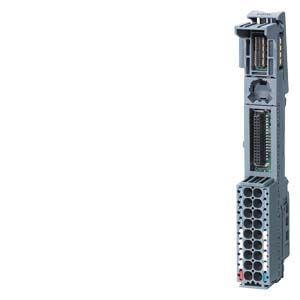

SIPLUS ET 200SP BU15-P16+A0+2B based on 6ES7193-6BP00-0BA0 with conformal coating, -40…+70 °C, BU type A0, push-in terminals, without AUX terminals, bridged to the left, WxH: 15 mm x 117 mm
With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design
Approved for degree of protection IP20 and for installation in a compact control box
Multi hot swapping feature allows for quick and simple replacement of modules
Wide range of different and fast communication methods
Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
Standardized identification system simplifies installation and service
Future-proof investment due to integration of innovative and long-life automation products
Conformal coating protects SIPLUS BaseUnits against special environmental influences
Prepared for use in challenging environments

Additional Information

Thông số kỹ thuật

FEATURE	VALUE
Rail mounting possible	true
Appendant operation agent (Ex ib)	false
Input voltage DC	19.2 V
Type of voltage (input voltage)	DC
With pluggable modules, digital I/O	true
Suitable for safety functions	true
With pluggable modules, analogue I/O	true
Appendant operation agent (Ex ia)	false
Number of slots	1
With pluggable modules, central modules	false
Front built-in possible	false
Output voltage DC	28.8 V
Height	117 mm
With pluggable modules, communication modules	true
With pluggable modules, others	false
Type of output voltage	DC
System accessory	true
Input voltage DC	28.8 V
With pluggable modules, function and technology modules	true
Rack-assembly possible	false
With integrated power supply	false
Wall mounting/direct mounting	false
Width	15 mm
Output voltage DC	19.2 V
Depth	35 mm
