Material ID: 6AG1193-6BP00-7DA0

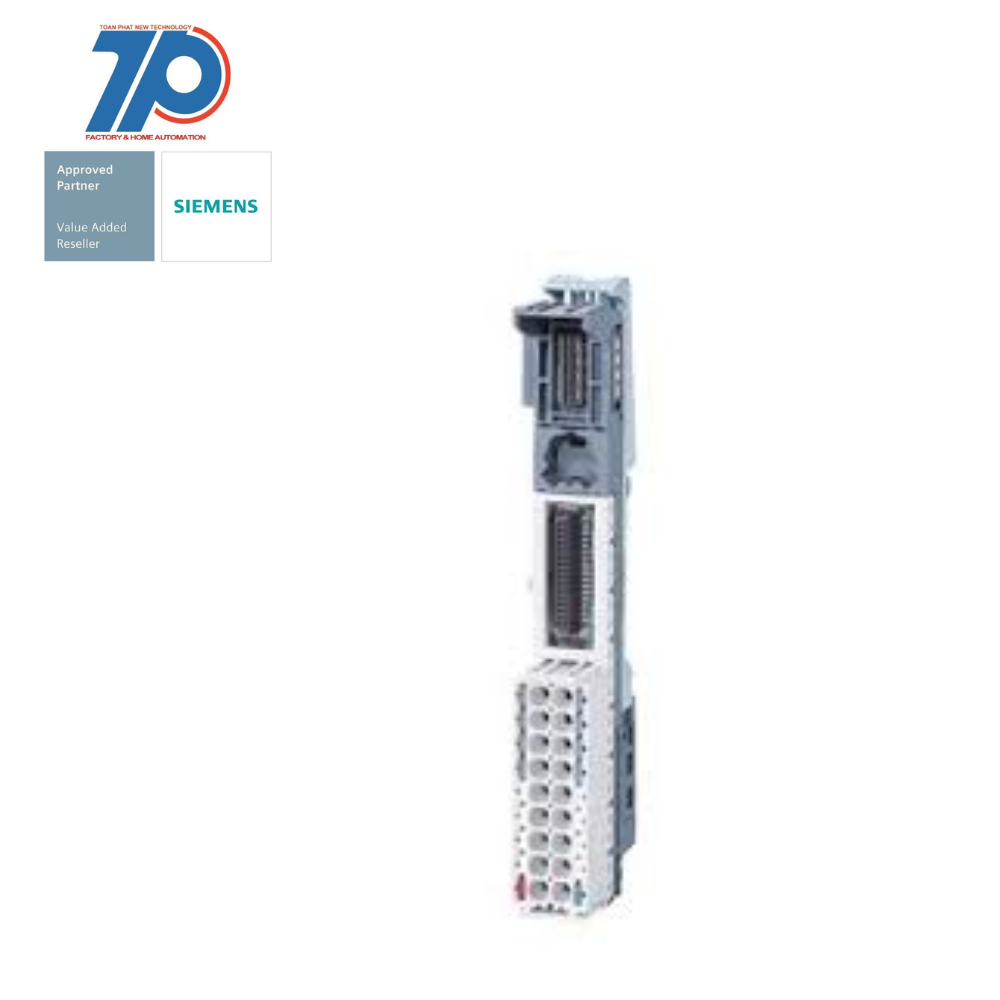

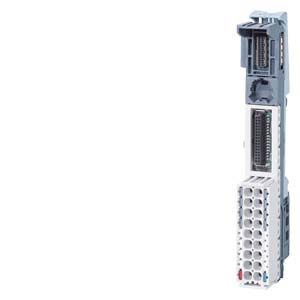

- SIPLUS ET 200SP BU15-P16+A0+2D based on 6ES7193-6BP00-0DA0 with conformal coating, -40…+70 °C, BU type A0, push-in terminals, without AUX terminals, new load group, WxH: 15 mm x 117 mm
- With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design
- Approved for degree of protection IP20 and for installation in a compact control box
- Maximum flexibility with quick and simple module replacement due to multi hot swapping feature
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments simplifies installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products
- Conformal coating protects SIPLUS BaseUnits against special environmental influences
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Width | 15 mm |
| With pluggable modules, analogue I/O | true |
| Input voltage DC | 28.8 V |
| Input voltage DC | 19.2 V |
| Rack-assembly possible | false |
| Output voltage DC | 19.2 V |
| Output voltage DC | 28.8 V |
| With pluggable modules, central modules | false |
| Front built-in possible | false |
| Appendant operation agent (Ex ib) | false |
| Wall mounting/direct mounting | false |
| With pluggable modules, others | false |
| System accessory | true |
| Depth | 35 mm |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| With pluggable modules, communication modules | true |
| With integrated power supply | false |
| Number of slots | 1 |
| Height | 117 mm |
| Rail mounting possible | true |
| Suitable for safety functions | true |
| With pluggable modules, digital I/O | true |
| Appendant operation agent (Ex ia) | false |
| With pluggable modules, function and technology modules | true |
