6AG1193-6BP20-2BF0

Thương hiệu: Siemens

Loại: ET200SP

MSP: 6AG1193-6BP20-2BF0

Liên hệ

Cam kết bán hàng

Material ID: 6AG1193-6BP20-2BF0

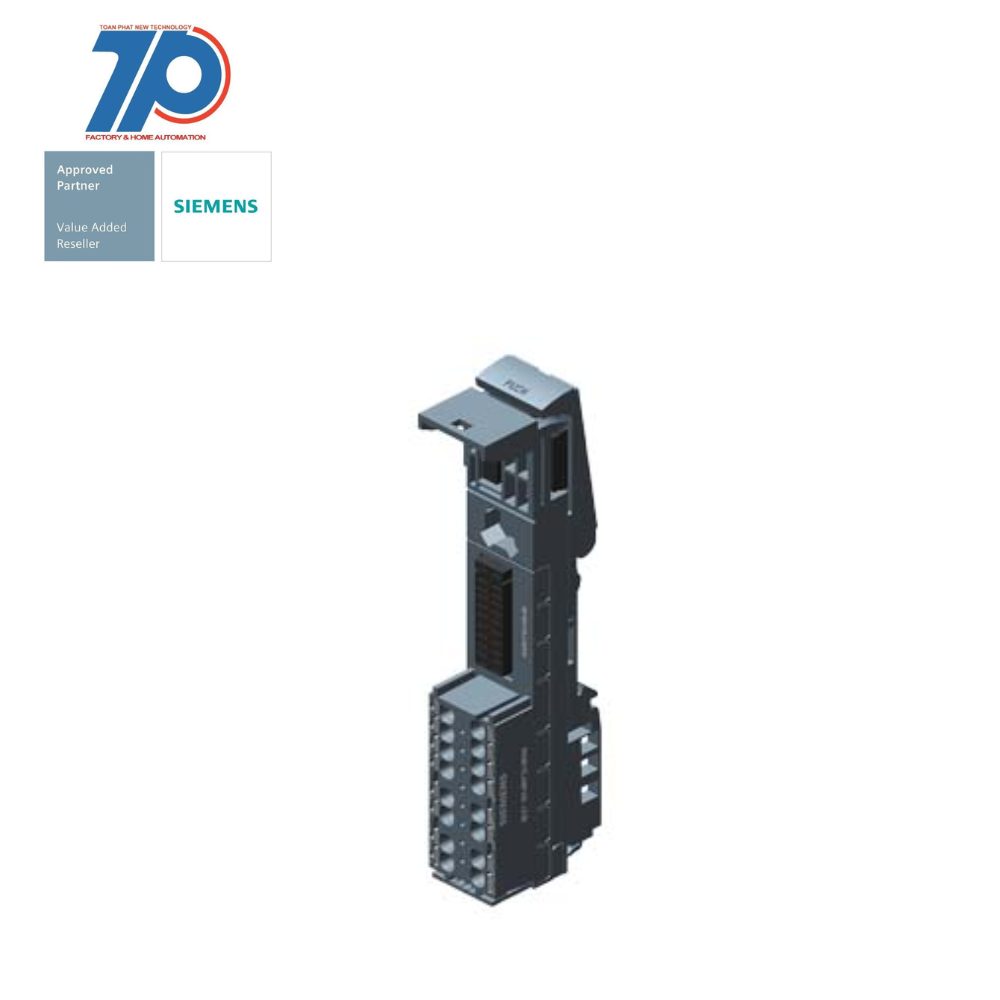

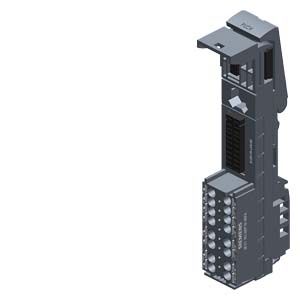

SIPLUS ET 200SP BU20-P8+A4+0B based on 6ES7193-6BP20-0BF0 with conformal coating, -40…+60 °C, BU type F0, push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mm x 117 mm
With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design.
It is approved for degree of protection IP20 and for installation in a compact control box.
The system ensures maximum flexibility because you can quickly and simply replace modules at any time due to the multi hot swapping feature.
SIMATIC ET 200SP also offers a wide range of different and fast communication methods.
With the integrated MultiFieldbus interface module IM155-6MF, you can use the optimum protocol for your application flexibly at any time because this function supports multiple Ethernet protocols.
Installation and service are simplified by a standardized identification system based on equipment labeling plates and color-coded connector assignments.
Siemens guarantees a future-proof investment due to integration of innovative and long-life automation products.
Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products.
The conformal coating protects SIPLUS BaseUnits against special environmental influences such as biologically, chemically and physically active substances.
Thus even your basic automation system is prepared for use in challenging environments.

Additional Information

Thông số kỹ thuật

FEATURE	VALUE
Width	20 mm
Input voltage AC 50 Hz	0 V
With pluggable modules, communication modules	false
Type of output voltage	AC/DC
Input voltage DC	24 V
With pluggable modules, function and technology modules	false
Height	117 mm
Input voltage AC 60 Hz	0 V
Appendant operation agent (Ex ib)	false
Number of slots	1
Output voltage DC	24 V
Front built-in possible	false
Input voltage DC	0 V
Input voltage AC 60 Hz	230 V
Output voltage AC 50 Hz	230 V
With pluggable modules, analogue I/O	false
Rail mounting possible	true
Input voltage AC 50 Hz	230 V
Output voltage AC 60 Hz	230 V
Output voltage AC 50 Hz	0 V
With pluggable modules, central modules	false
Depth	35 mm
Rack-assembly possible	false
Output voltage DC	0 V
Output voltage AC 60 Hz	0 V
With integrated power supply	false
Suitable for safety functions	true
With pluggable modules, digital I/O	true
Appendant operation agent (Ex ia)	false
Type of voltage (input voltage)	AC/DC
Wall mounting/direct mounting	false
With pluggable modules, others	false
System accessory	true
