6AG1195-7HB00-7XA0

Thương hiệu: Siemens

MSP: 6AG1195-7HB00-7XA0

Liên hệ

Cam kết bán hàng

Material ID: 6AG1195-7HB00-7XA0

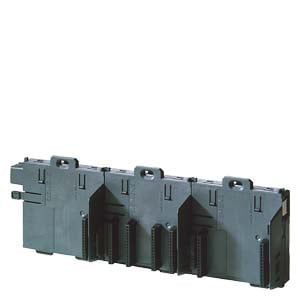

SIPLUS ET 200M active bus module 2x 40 mm modules based on 6ES7195-7HB00-0XA0 with conformal coating, -40…+70 °C, start up -25 °C, for holding 2 IM 153-2 Red for removal and insertion function during RUN operating time
SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module.
As many as 12 IO modules can be inserted into each station.
The standardized setup of all modules considerably simplifies logistics and stocking of spare parts.
SIPLUS extreme BusAdapters are specially designed for harsh ambient conditions to ensure that biologically, chemically and physically active substances do not negatively impact your communication.

Additional Information

Thông số kỹ thuật

FEATURE	VALUE
System accessory	true
Input voltage DC	28.8 V
Height	92 mm
With pluggable modules, digital I/O	true
Wall mounting/direct mounting	true
With pluggable modules, communication modules	true
Appendant operation agent (Ex ia)	false
Input voltage DC	20.4 V
With pluggable modules, central modules	true
Appendant operation agent (Ex ib)	false
Suitable for safety functions	false
With pluggable modules, others	true
Max. input current DC	6 A
Number of slots	2
Depth	30 mm
Rail mounting possible	true
Width	97 mm
Rack-assembly possible	false
With pluggable modules, analogue I/O	true
With pluggable modules, function and technology modules	true
Front built-in possible	false
With integrated power supply	false
Type of voltage (input voltage)	DC
