6AG1314-6CH04-7AB0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Material ID: 6AG1314-6CH04-7AB0

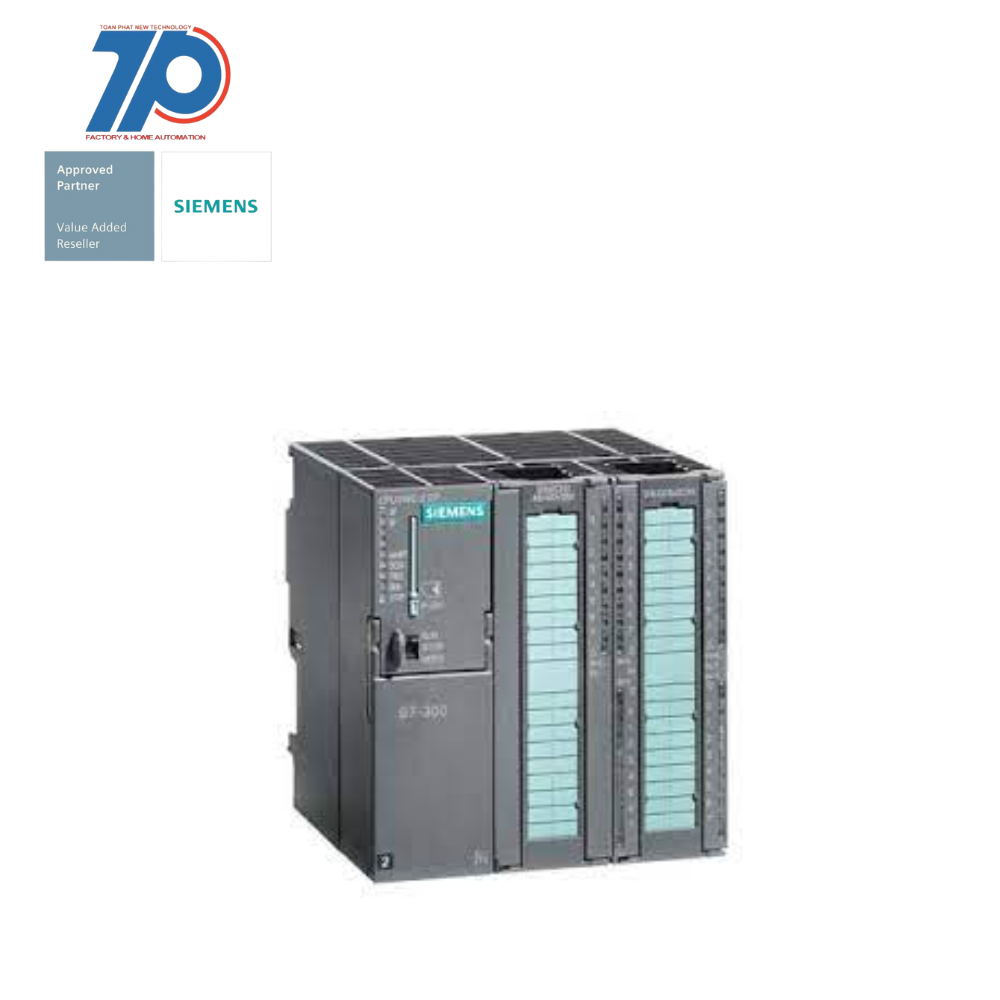

- SIPLUS S7-300 CPU 314C-2DP based on 6ES7314-6CH04-0AB0 with conformal coating
- -25…+70 °C, compact CPU with MPI
- 24 DI/16 DQ, 4 AI, 2 AQ, 1 Pt100
- 4 high-speed counters (60 kHz)
- Integrated DP interface
- Integrated power supply 24 V DC
- Work memory 192 KB
- Front connector (2x 40-pole) and Micro Memory Card required
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This reliably protects your standard and challenging automation tasks and provides additional investment security.
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of analogue outputs | 2 |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET CBA | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| Supply voltage DC | 19.2 V |
| Supply voltage DC | 28.8 V |
| Supporting protocol for EtherNet/IP | false |
| Height | 125 mm |
| Supporting protocol for Data-Highway | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Number of analogue inputs | 5 |
| Number of HW-interfaces RS-485 | 2 |
| Memory size | 192 kByte |
| Supporting protocol for KNX | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| Supporting protocol for PROFINET IO | false |
| Processing time (1K, binary operation) | 0.06 ms |
| Supporting protocol for Foundation Fieldbus | false |
| Number of digital inputs | 24 |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Depth | 130 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIBUS | true |
| IO link master | false |
| Redundancy | true |
| Width | 120 mm |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| With display | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFIsafe | false |
| Front built-in possible | false |
| Supporting protocol for DeviceNet Safety | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for TCP/IP | false |
| Model | Compact |
| Number of digital outputs | 16 |
| Appendant operation agent (Ex ia) | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Type of memory | RAM |
| Supporting protocol for Modbus | false |
| Explosion safety category for dust | None |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard GPRS | false |
| With optical interface | false |
| Supporting protocol for SUCONET | false |
