Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

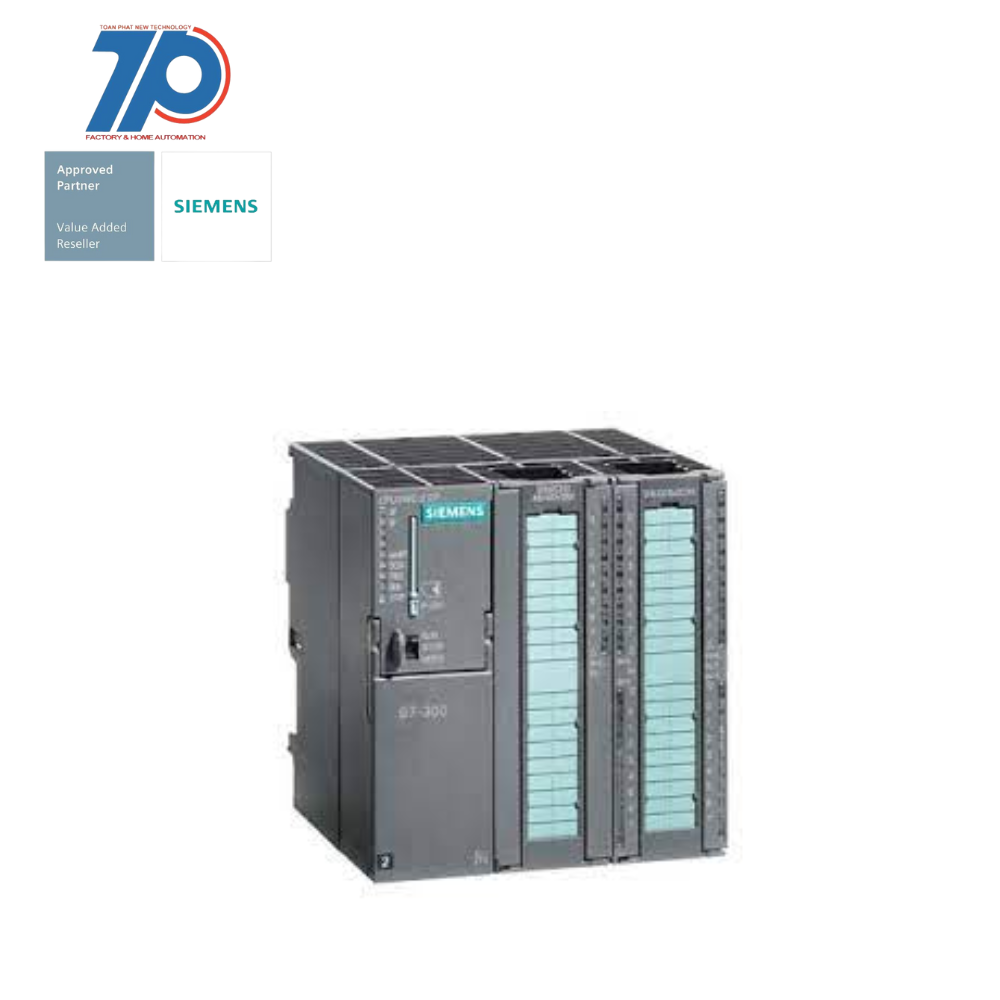

Material ID: 6AG1314-6EH04-7AB0
- SIPLUS S7-300 CPU 314C-2PN/DP based on 6ES7314-6EH04-0AB0 with conformal coating
- -25…+70 °C, compact CPU with 192 KB work memory
- 24 DI/16 DQ, 4 AI, 2 AQ, 1 Pt100
- 4 high-speed counters (60 kHz)
- 1st interface MPI/DP 12 Mbps
- 2nd interface Ethernet PROFINET, with 2-port switch
- Integrated power supply 24 V DC
- Front connector (2x 40-pole) and Micro Memory Card required
- The SIPLUS extreme variant protects automation system components from harsh ambient conditions
- Protects against extremely high and low temperatures, corrosive gases, condensation, frost, and biologically, chemically, and physically active substances
- Provides additional investment security for standard and challenging automation tasks
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for SUCONET | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET IO | true |
| Supply voltage DC | 28.8 V |
| Height | 125 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Model | Compact |
| Memory size | 192 kByte |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for SafetyBUS p | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Supporting protocol for EtherNet/IP | false |
| Rail mounting possible | true |
| Radio standard GSM | false |
| Processing time (1K, binary operation) | 0.06 ms |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for KNX | false |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| With optical interface | false |
| Appendant operation agent (Ex ia) | false |
| Depth | 130 mm |
| Explosion safety category for dust | None |
| Number of analogue inputs | 5 |
| Number of HW-interfaces other | 1 |
| Radio standard GPRS | false |
| Wall mounting/direct mounting | false |
| Redundancy | true |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET CBA | true |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Width | 120 mm |
| Type of memory | RAM |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces RS-485 | 1 |
| Number of digital outputs | 16 |
| Radio standard UMTS | false |
| Supporting protocol for EtherCAT | false |
| Radio standard Bluetooth | false |
| Supporting protocol for LON | false |
| Front built-in possible | false |
| Number of digital inputs | 24 |
| Supporting protocol for SERCOS | false |
| Supporting protocol for CAN | false |
| With display | false |
| Number of analogue outputs | 2 |
| Supporting protocol for PROFIsafe | false |
