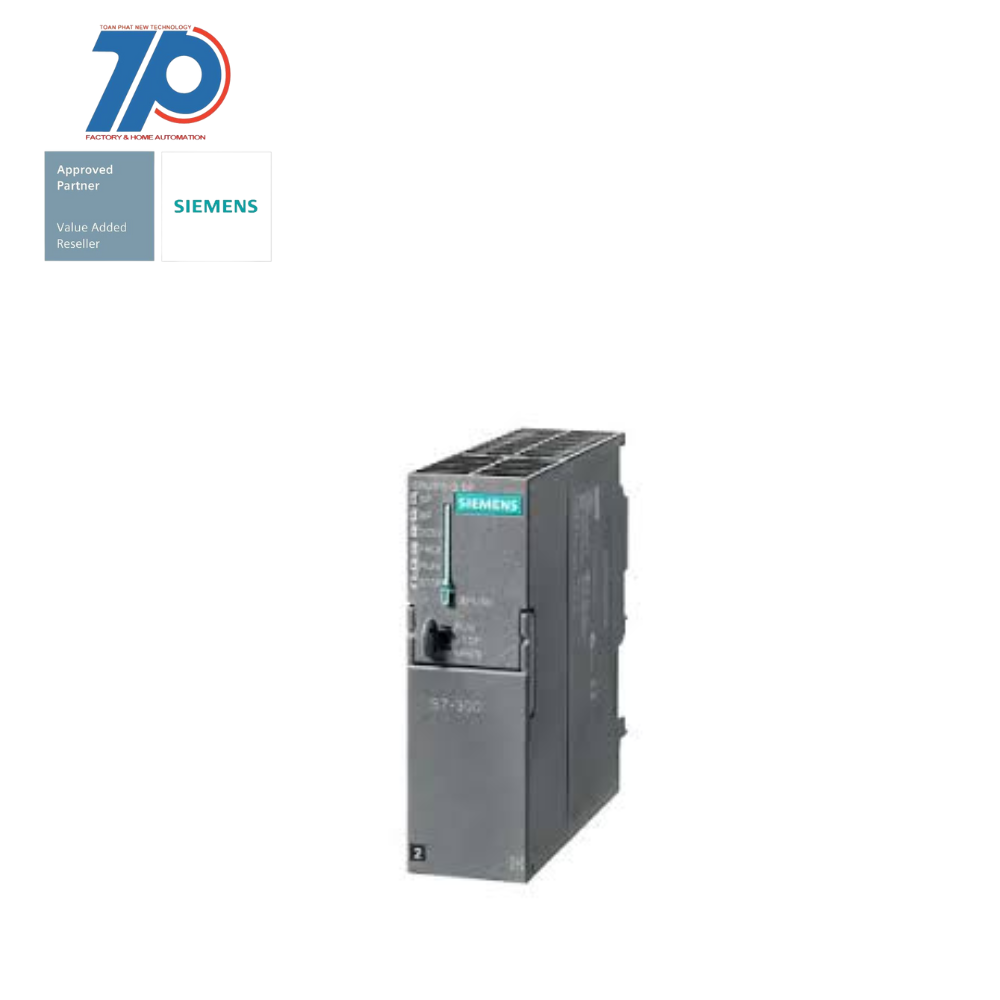

Material ID: 6AG1315-2AH14-7AB0
- SIPLUS S7-300 CPU 315-2DP based on 6ES7315-2AH14-0AB0 with conformal coating, -25…+70 °C
- Central processing unit with MPI integrated power supply 24 V DC
- Work memory 256 KB
- 2nd interface DP master/slave
- Micro Memory Card required
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost, and biologically, chemically, and physically active substances that can occur in control cabinets or container solutions in the production area.
- This reliably protects your standard and challenging automation tasks and provides additional investment security.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIBUS | true |
| Depth | 130 mm |
| Supporting protocol for EtherCAT | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for SERCOS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Supporting protocol for Foundation Fieldbus | false |
| Rack-assembly possible | false |
| IO link master | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Type of memory | RAM |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for LON | false |
| Appendant operation agent (Ex ia) | false |
| Processing time (1K, binary operation) | 0.05 ms |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for PROFINET CBA | false |
| Number of HW-interfaces RS-485 | 2 |
| Suitable for safety functions | false |
| Radio standard Bluetooth | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Model | Modular |
| Redundancy | true |
| Appendant operation agent (Ex ib) | false |
| Front built-in possible | false |
| Memory size | 256 kByte |
| Radio standard GSM | false |
| Supporting protocol for Modbus | false |
| Radio standard GPRS | false |
| Supply voltage DC | 28.8 V |
| Rail mounting possible | true |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard UMTS | false |
| Explosion safety category for dust | None |
| Height | 125 mm |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet Safety | false |
| With display | false |
| With optical interface | false |
| Width | 40 mm |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for CAN | false |
