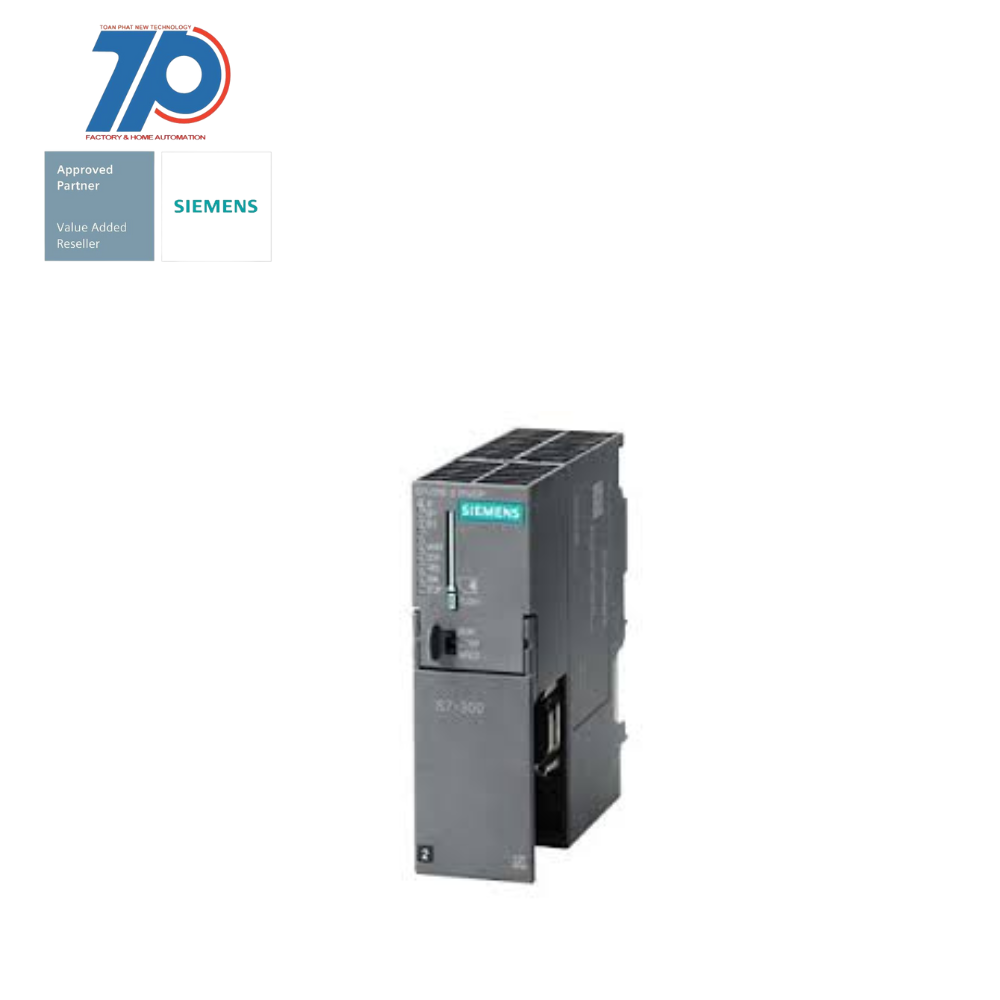

Material ID: 6AG1315-2EH14-7AB0
- SIPLUS S7-300 CPU 315-2PN/DP based on 6ES7315-2EH14-0AB0 with conformal coating, -25…+70 °C
- Central processing unit with 384 KB work memory
- 1st interface MPI/DP 12 Mbps
- 2nd interface Ethernet PROFINET with 2-port switch
- Micro Memory Card required
- SIPLUS extreme variant protects automation system components from harsh ambient conditions
- Protects from extremely high and low temperatures, corrosive gases, condensation, frost, and biologically, chemically, and physically active substances
- Provides additional investment security
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard GSM | false |
| Redundancy | true |
| Supporting protocol for TCP/IP | true |
| Number of interfaces PROFINET | 1 |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for PROFIsafe | false |
| Width | 40 mm |
| Appendant operation agent (Ex ia) | false |
| Number of HW-interfaces other | 1 |
| Memory size | 384 kByte |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for INTERBUS-Safety | false |
| Radio standard UMTS | false |
| Supporting protocol for SUCONET | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for KNX | false |
| Type of memory | RAM |
| Supporting protocol for CAN | false |
| Radio standard GPRS | false |
| Height | 125 mm |
| Front built-in possible | false |
| Radio standard Bluetooth | false |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for DeviceNet Safety | false |
| Rail mounting possible | true |
| Supporting protocol for LON | false |
| Voltage type (supply voltage) | DC |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supply voltage DC | 28.8 V |
| Wall mounting/direct mounting | false |
| Supporting protocol for PROFINET CBA | true |
| With display | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Number of HW-interfaces RS-485 | 1 |
| Processing time (1K, binary operation) | 0.05 ms |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Model | Modular |
| Depth | 130 mm |
| Rack-assembly possible | false |
| With optical interface | false |
| Supply voltage DC | 20.4 V |
| Explosion safety category for dust | None |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for EtherNet/IP | false |
