6AG1315-2FJ14-2AB0
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Material ID: 6AG1315-2FJ14-2AB0

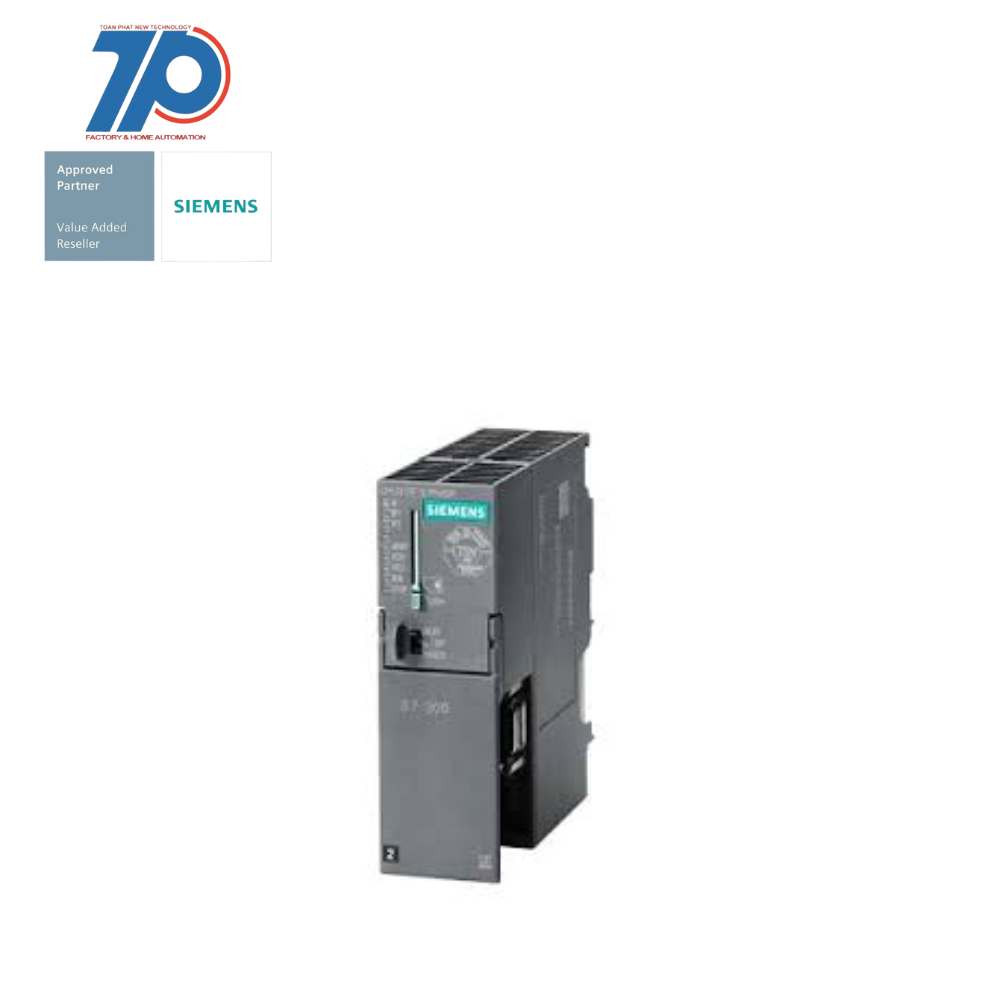

- SIPLUS S7-300 CPU 315F-2PN/DP based on 6ES7315-2FJ14-0AB0 with conformal coating, -25…+60 °C, central processing unit with 512 KB work memory, 1st interface MPI/DP 12 Mbps, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This reliably protects your standard and challenging automation tasks and provides additional investment security.
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Width | 40 mm |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard GSM | false |
| With display | false |
| Radio standard GPRS | false |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard UMTS | false |
| Supporting protocol for ASI | false |
| Supply voltage DC | 20.4 V |
| With optical interface | false |
| Wall mounting/direct mounting | true |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for PROFIsafe | true |
| Redundancy | true |
| Rail mounting possible | true |
| Radio standard Bluetooth | false |
| Supporting protocol for SafetyBUS p | false |
| Depth | 130 mm |
| Explosion safety category for dust | None |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for KNX | false |
| Supporting protocol for EtherNet/IP | false |
| Processing time (1K, binary operation) | 0.05 ms |
| Appendant operation agent (Ex ia) | false |
| Suitable for safety functions | true |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| SIL according to IEC 61508 | 3 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for CAN | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Height | 125 mm |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Model | Modular |
| Supporting protocol for EtherCAT | false |
| Rack-assembly possible | false |
| Memory size | 512 kByte |
| Supporting protocol for PROFINET CBA | true |
| Supply voltage DC | 28.8 V |
| Supporting protocol for INTERBUS | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Type of memory | RAM |
| Supporting protocol for SUCONET | false |
| Front built-in possible | true |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for Modbus | false |
