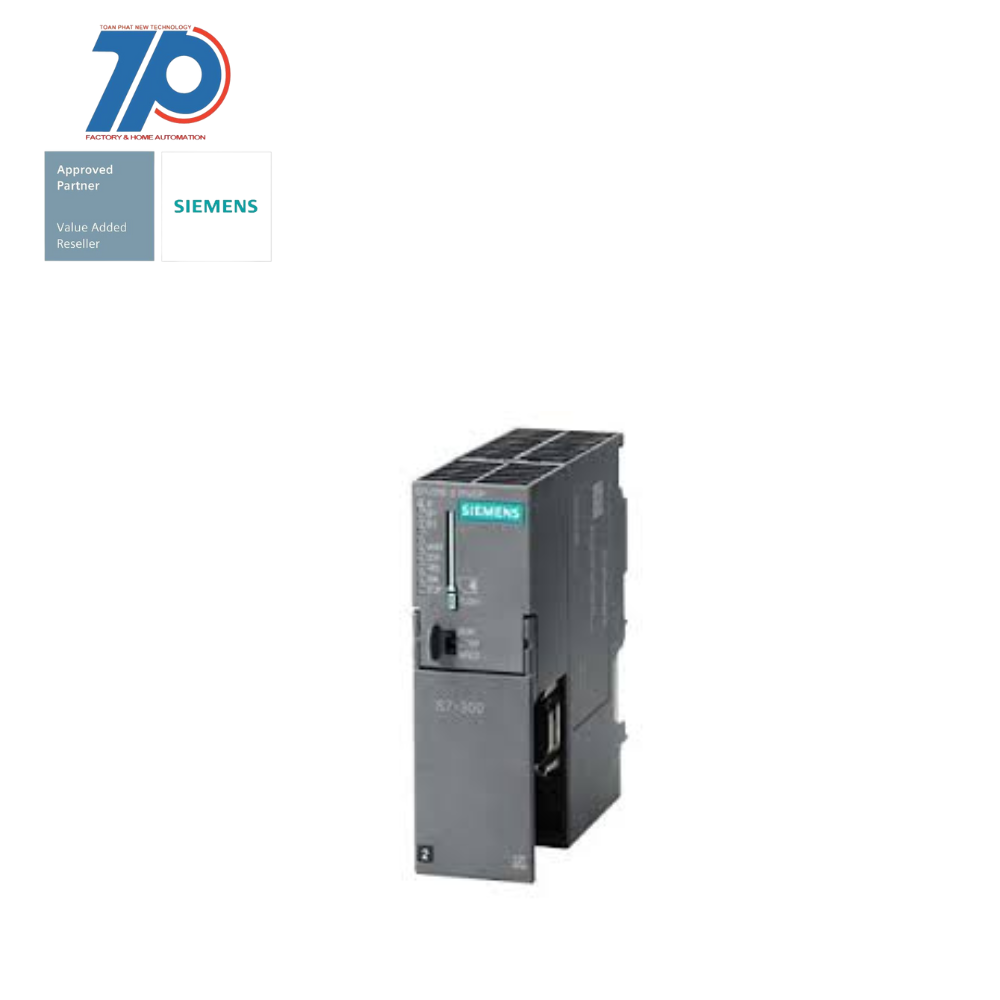

Material ID: 6AG1317-2EK14-7AB0
- SIPLUS S7-300 CPU 317-2PN/DP based on 6ES7317-2EK14-0AB0 with conformal coating, -25…+70 °C, central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbps, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This reliably protects your standard and challenging automation tasks and provides additional investment security.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for EtherCAT | false |
| Type of memory | RAM |
| Supporting protocol for LON | false |
| Model | Modular |
| Supporting protocol for Data-Highway | false |
| Wall mounting/direct mounting | false |
| Depth | 130 mm |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| Supporting protocol for Foundation Fieldbus | false |
| Height | 125 mm |
| Redundancy | true |
| Rail mounting possible | true |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for INTERBUS | false |
| Rack-assembly possible | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | true |
| Number of interfaces PROFINET | 1 |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for PROFINET IO | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| With optical interface | false |
| Supporting protocol for DeviceNet | false |
| Explosion safety category for dust | None |
| Processing time (1K, binary operation) | 0.025 ms |
| Radio standard UMTS | false |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Radio standard Bluetooth | false |
| Front built-in possible | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| With display | false |
| Supporting protocol for PROFIBUS | true |
| Number of HW-interfaces other | 1 |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Suitable for safety functions | false |
| Supply voltage DC | 20.4 V |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for KNX | false |
| Width | 40 mm |
| Memory size | 1024 kByte |
| Supporting protocol for AS-Interface Safety at Work | false |
| Appendant operation agent (Ex ib) | false |
| Supply voltage DC | 28.8 V |
