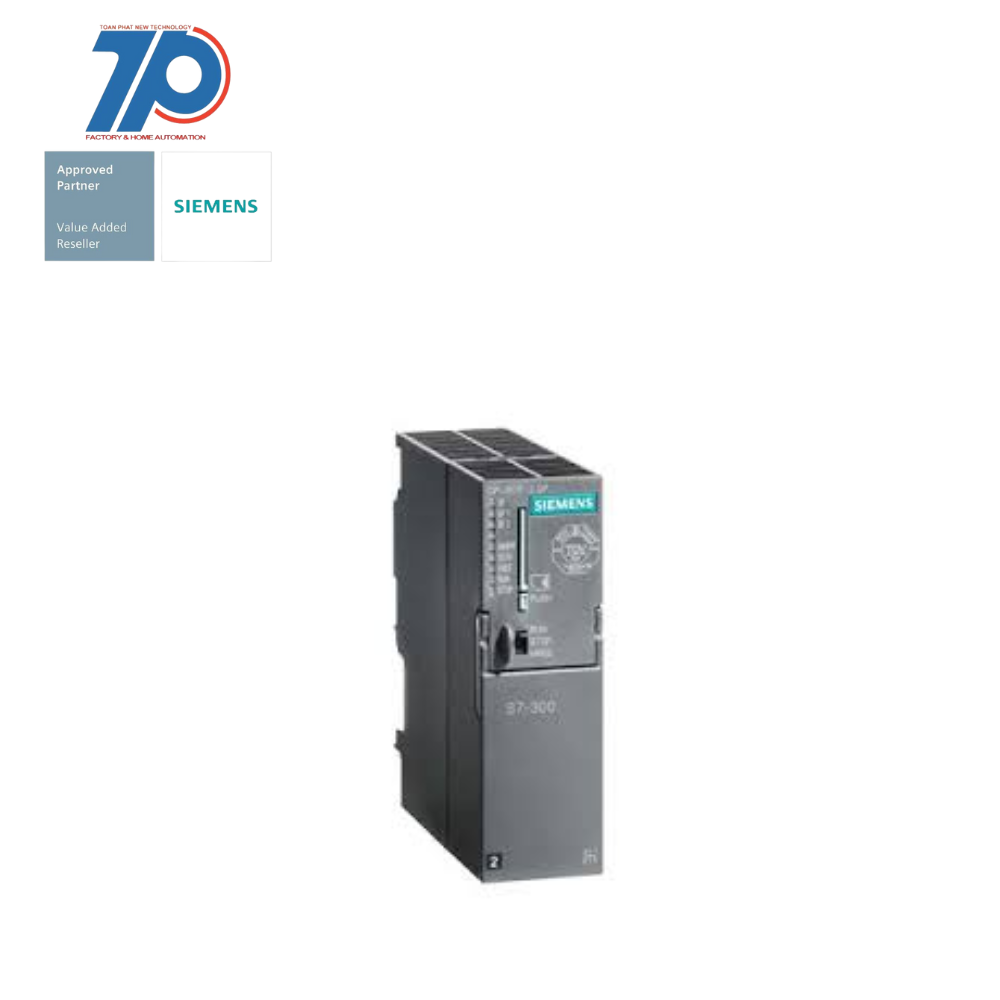

Material ID: 6AG1317-6FF04-2AB0
- SIPLUS S7-300 CPU 317F-2DP based on 6ES7317-6FF04-0AB0 with conformal coating, -25…+60 °C
- Central processing unit with 1.5 MB work memory
- 1st interface MPI/DP 12 Mbps
- 2nd interface DP master/slave
- Micro Memory Card required
- Can be used with software package S7 Distributed Safety V5.2 SP1 or higher
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area
- This reliably protects your standard and challenging automation tasks and provides additional investment security
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for EtherNet/IP | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| SIL according to IEC 61508 | 3 |
| Supporting protocol for PROFINET IO | false |
| Radio standard Bluetooth | false |
| Suitable for safety functions | true |
| Memory size | 1536 kByte |
| Appendant operation agent (Ex ib) | false |
| Type of memory | RAM |
| Number of HW-interfaces RS-485 | 2 |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Width | 40 mm |
| Depth | 130 mm |
| Supporting protocol for KNX | false |
| Height | 125 mm |
| Rail mounting possible | true |
| Supporting protocol for LON | false |
| Explosion safety category for dust | None |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for PROFIBUS | true |
| Radio standard UMTS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for SUCONET | false |
| Radio standard GPRS | false |
| Rack-assembly possible | false |
| Supporting protocol for Modbus | false |
| Front built-in possible | false |
| Supporting protocol for EtherCAT | false |
| With optical interface | false |
| Supporting protocol for DeviceNet Safety | false |
| Supply voltage DC | 19.2 V |
| Processing time (1K, binary operation) | 0.025 ms |
| Wall mounting/direct mounting | false |
| With display | false |
| Radio standard GSM | false |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Supporting protocol for PROFIsafe | false |
| Model | Modular |
| Supporting protocol for Foundation Fieldbus | false |
| Redundancy | true |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | false |
| Supply voltage DC | 28.8 V |
| System accessory | true |
| Supporting protocol for other bus systems | true |
| IO link master | false |
| Supporting protocol for SERCOS | false |
