Material ID: 6AG1331-7TF01-7AB0

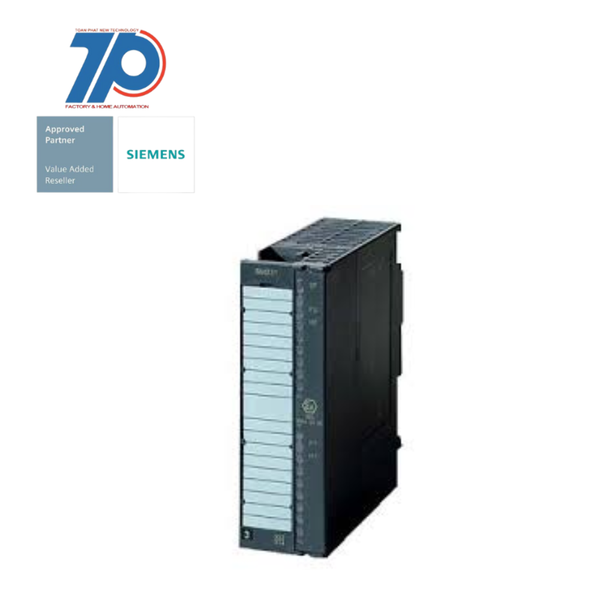

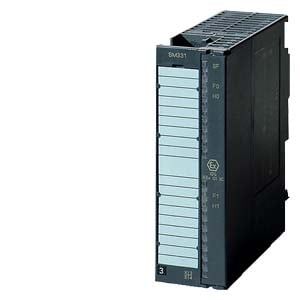

SIPLUS S7-300 SM 331 AI 8x0/4...20mA
The SIPLUS S7-300 SM 331 AI 8x0/4...20mA module, based on 6ES7331-7TF01-0AB0, is designed to reliably record analog signals in extreme ambient conditions.
Technical Features:
Commercial Benefits:
With the SIPLUS S7-300 SM 331 AI 8x0/4...20mA module, you can ensure reliable recording of analog signals regardless of the environmental conditions. The conformal coating and wide temperature range make it suitable for use in harsh and demanding applications.
- Conformal Coating: The module is coated with a 100% conformal coating, providing protection against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases.
- Temperature Range: The module can operate in a temperature range of -25°C to +70°C.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Height | 125 mm |
| Appendant operation agent (Ex ib) | false |
| Number of analogue inputs | 8 |
| Number of analogue outputs | 0 |
| Input, thermocouple | false |
| Appendant operation agent (Ex ia) | false |
| Input signal, configurable | true |
| Analogue inputs configurable | true |
| Input, resistor | false |
| Suitable for safety functions | false |
| Width | 40 mm |
| Resolution of the analogue inputs | 16 Bit |
| Input, voltage | false |
| Input, current | true |
| Depth | 117 mm |
| Input, resistance thermometer | false |
