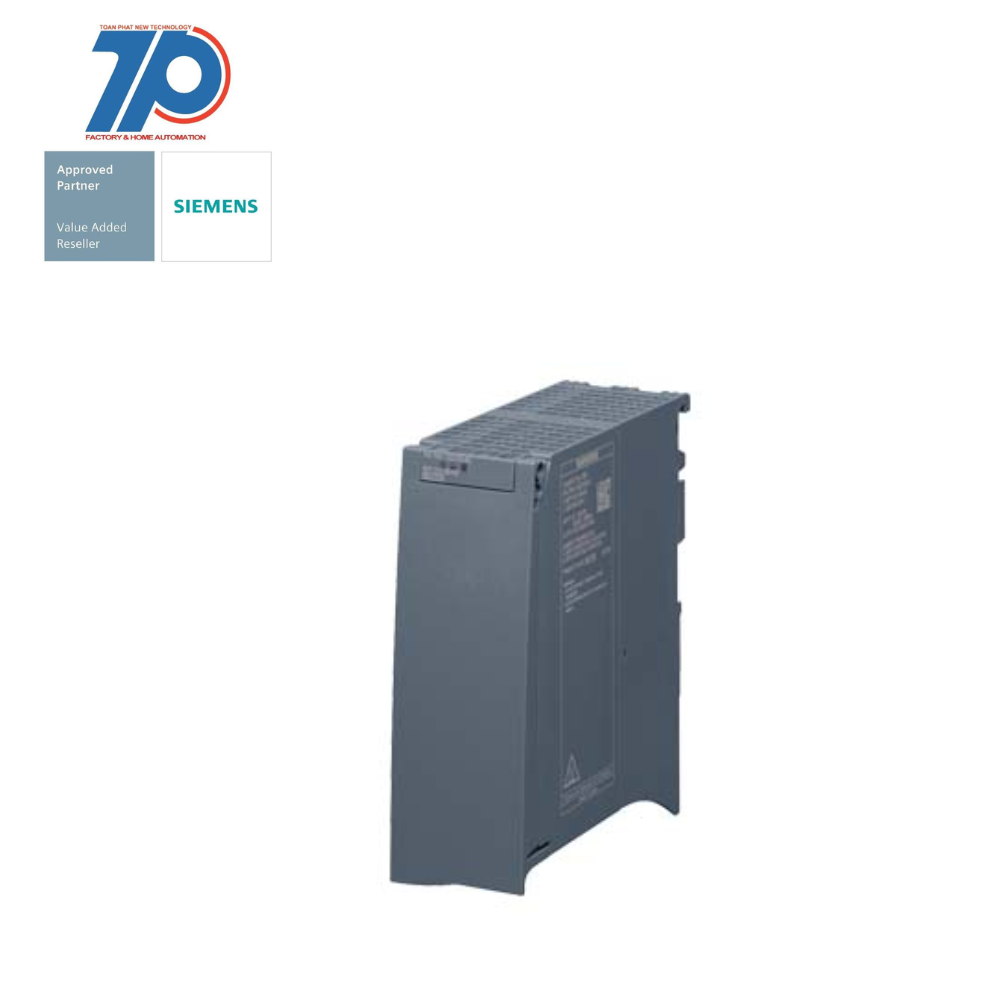

Material ID: 6AG1332-4BA00-7AA0
- SIPLUS S7-1500 PM 1507 24V/3A based on 6EP1332-4BA00 with conformal coating, -40…+70 °C, stabilized power supply
- Input: 120/230 V AC
- Output: 24 V DC/3 A
- The SIPLUS extreme version protects the automation components against harsh environmental conditions
- Harsh conditions include high and low temperatures, corrosive gases, condensation, frost, and biologically, chemically, and mechanically active substances
- These conditions can occur in control cabinets near the production or in container solutions
- Your automation tasks are reliably protected and offer additional investment security
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Stabilized | true |
| Rated supply voltage AC 50 Hz | 230 V |
| Nominal value output current 1 | 3 A |
| Power output | 72 W |
| Output voltage stabilized | true |
| Built-in height | 205 mm |
| Rated supply voltage AC 60 Hz | 120 V |
| Short-circuit-proof | true |
| Direct mounting possible | false |
| Voltage type (supply voltage) | AC |
| Width | 50 mm |
| Rail mounting possible | false |
| Depth | 129 mm |
| Secondary voltage adjustable | false |
| Wall mounting possible | false |
| Type of electric connection | Screw-/spring clamp connection |
| Height | 147 mm |
| Max. output current 1 | 3 A |
| Built-in width | 50 mm |
| Nominal value output voltage 1 | 24 V |
| 1st secondary output voltage | 24 V |
| Modular version | true |
| Degree of protection (IP) | IP20 |
