Material ID: 6AG1332-8TF01-2AB0SIPLUS S7-300 SM 332 8AQ HART

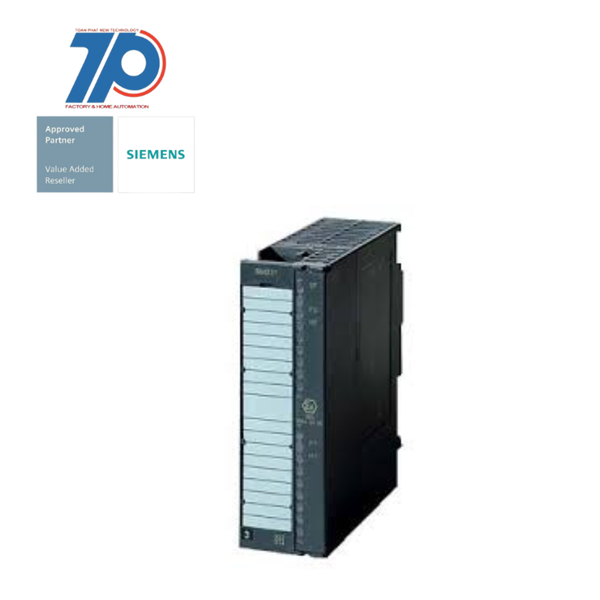

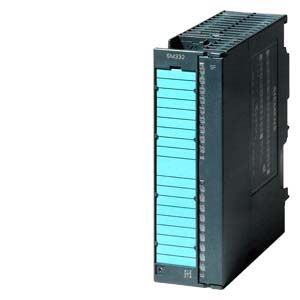

SIPLUS S7-300 SM 332 8AQ HART

Technical Features:

Commercial Benefits:

Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating, they can withstand biologically, chemically, and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.

    • Model: 6ES7332-8TF01-0AB0
    • Conformal Coating: Yes
    • Temperature Range: -25°C to +60°C
    • Analog Output: 8 AQ 0/4 - 20 mA HART
    • Compatibility: ET 200M with IM 153-2
    • Functions: Firmware Update, HART Auxiliary Variables, Redundancy, Local Diagnostic Buffer with Time Stamping
    • Requirement: PCS 7 V7.0, SP1
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Appendant operation agent (Ex ia)false
Output, voltagefalse
Output, currenttrue
Output signal configurabletrue
Appendant operation agent (Ex ib)false
Number of analogue outputs8
Analogue outputs configurabletrue
Suitable for safety functionsfalse
Width40 mm
Number of analogue inputs0
Height125 mm
Depth117 mm
Resolution of the analogue outputs16 Bit
