Material ID: 6AG1414-3EM07-7AB0

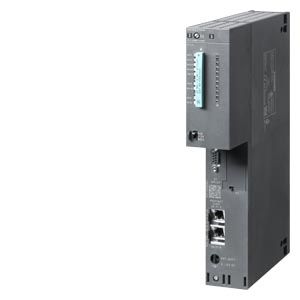

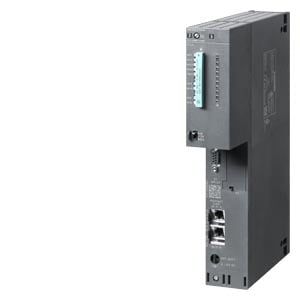

- SIPLUS S7-400 CPU 414-3 PN/DP based on 6ES7414-3EM07-0AB0 with conformal coating, -25…+70 °C
- Central processing unit with: work memory 4 MB, (2 MB code, 2 MB data)
- Interfaces:
- 1st interface MPI/DP 12 Mbps, (X1)
- 2nd interface ETHERNET/PROFINET (X5)
- 3rd interface IF 964-DP plug-in (IF1)
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This also reliably protects your challenging automation tasks and provides additional investment security.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard Bluetooth | false |
| System accessory | true |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for KNX | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard UMTS | false |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for Modbus | false |
| Model | Modular |
| Supporting protocol for CAN | false |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for EtherNet/IP | false |
| With display | false |
| Redundancy | true |
| Width | 50 mm |
| Supporting protocol for SafetyBUS p | false |
| Radio standard GSM | false |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS | false |
| Explosion safety category for dust | None |
| Rail mounting possible | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for PROFIBUS | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for LON | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Front built-in possible | false |
| Number of HW-interfaces other | 1 |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Data-Highway | false |
| Depth | 219 mm |
| Supporting protocol for TCP/IP | true |
| Appendant operation agent (Ex ib) | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Memory size | 4000 kByte |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Supporting protocol for DeviceNet | false |
| Height | 290 mm |
| With optical interface | false |
| Supporting protocol for PROFINET CBA | true |
| Type of memory | RAM |
| Supporting protocol for other bus systems | false |
| Radio standard GPRS | false |
| Processing time (1K, binary operation) | 0.01875 ms |
| Number of HW-interfaces RS-485 | 1 |
