Material ID: 6AG1416-3ES07-7AB0

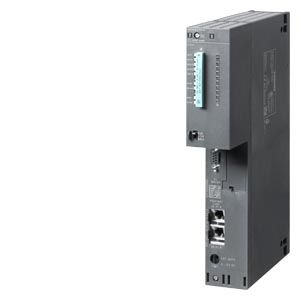

- SIPLUS S7-400 CPU 416-3 PN/DP based on 6ES7416-3ES07-0AB0 with conformal coating, -25…+70 °C, central processing unit with: work memory 16 MB, (8 MB code, 8 MB data)
- Interfaces: 1st interface MPI/DP 12 Mbps, (X1), 2nd interface ETHERNET/PROFINET (X5), 3rd interface IF 964-DP plug-in (IF1)
- The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
- This also reliably protects your challenging automation tasks and provides additional investment security.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard GSM | false |
| Height | 290 mm |
| Supporting protocol for SERCOS | false |
| Supporting protocol for EtherCAT | false |
| Number of HW-interfaces other | 1 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for other bus systems | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for INTERBUS | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for DeviceNet | false |
| Number of interfaces PROFINET | 1 |
| Front built-in possible | false |
| Rack-assembly possible | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for PROFINET CBA | true |
| Rail mounting possible | false |
| Explosion safety category for dust | None |
| Radio standard UMTS | false |
| Width | 50 mm |
| Model | Modular |
| Supporting protocol for TCP/IP | true |
| With optical interface | false |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for KNX | false |
| Supporting protocol for Modbus | false |
| Radio standard GPRS | false |
| Processing time (1K, binary operation) | 0.0125 ms |
| With display | false |
| Memory size | 16000 kByte |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for PROFIBUS | true |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Redundancy | true |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Wall mounting/direct mounting | false |
| Additional program memory possible | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Type of memory | RAM |
| Depth | 219 mm |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Supporting protocol for ASI | false |
| Supporting protocol for DeviceNet Safety | false |
