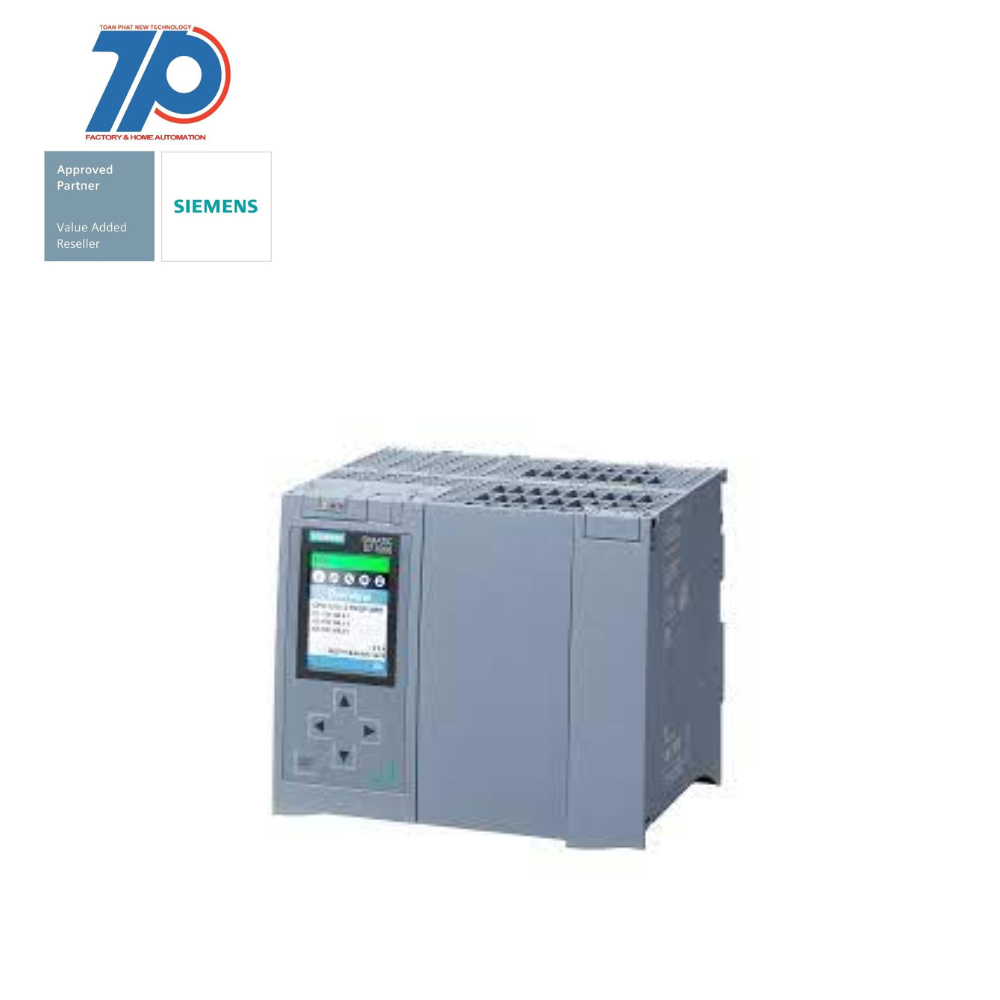

Material ID: 6AG1518-4AP00-4AB0
- SIPLUS S7-1500 CPU 1518-4 PN/DP based on 6ES7518-4AP00-0AB0 with conformal coating, 0…+60 °C
- Central processing unit with work memory 4 MB for program and 20 MB for data
- 1st interface: PROFINET IRT with 2-port switch
- 2nd interface: Ethernet
- 3rd interface: Ethernet
- 4th interface: PROFIBUS
- 1 ns bit performance
- SIMATIC Memory Card required
- The SIMATIC® S7-1500 Advanced Controller sets new standards with regard to system performance and usability
- Seamless integration in the Totally Integrated Automation Portal (TIA Portal)
- Advantages of common data storage, uniform operating concept, and central services
- Easy use of universal functions
- Short system response times for increased productivity
- SIPLUS extreme variant protects components from harsh ambient conditions
- Protects against high and low temperatures, corrosive gases, condensation, frost, and active substances
- Provides additional investment security
- Configured using SIMATIC STEP 7 Professional software
- SIMATIC Memory Card required for operation
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Height | 147 mm |
| Number of interfaces PROFINET | 3 |
| Supporting protocol for CAN | false |
| Supporting protocol for EtherNet/IP | false |
| IO link master | false |
| Radio standard GPRS | false |
| Number of HW-interfaces industrial Ethernet | 3 |
| Model | Modular |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Redundancy | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Number of HW-interfaces RS-485 | 1 |
| Depth | 129 mm |
| Radio standard UMTS | false |
| Rail mounting possible | true |
| Appendant operation agent (Ex ia) | false |
| Radio standard GSM | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for INTERBUS | false |
| System accessory | true |
| Supporting protocol for KNX | false |
| Type of memory | Other |
| Supporting protocol for TCP/IP | true |
| With optical interface | false |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
| Width | 175 mm |
| Supporting protocol for SERCOS | false |
| Rack-assembly possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Explosion safety category for dust | None |
| Wall mounting/direct mounting | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for PROFINET IO | true |
| Processing time (1K, binary operation) | 0.001 ms |
| Supporting protocol for LON | false |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| With display | true |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Memory size | 24000 kByte |
| Front built-in possible | false |
| Appendant operation agent (Ex ib) | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for EtherCAT | false |
