Material ID: 6AG1688-3AF37-2AX0

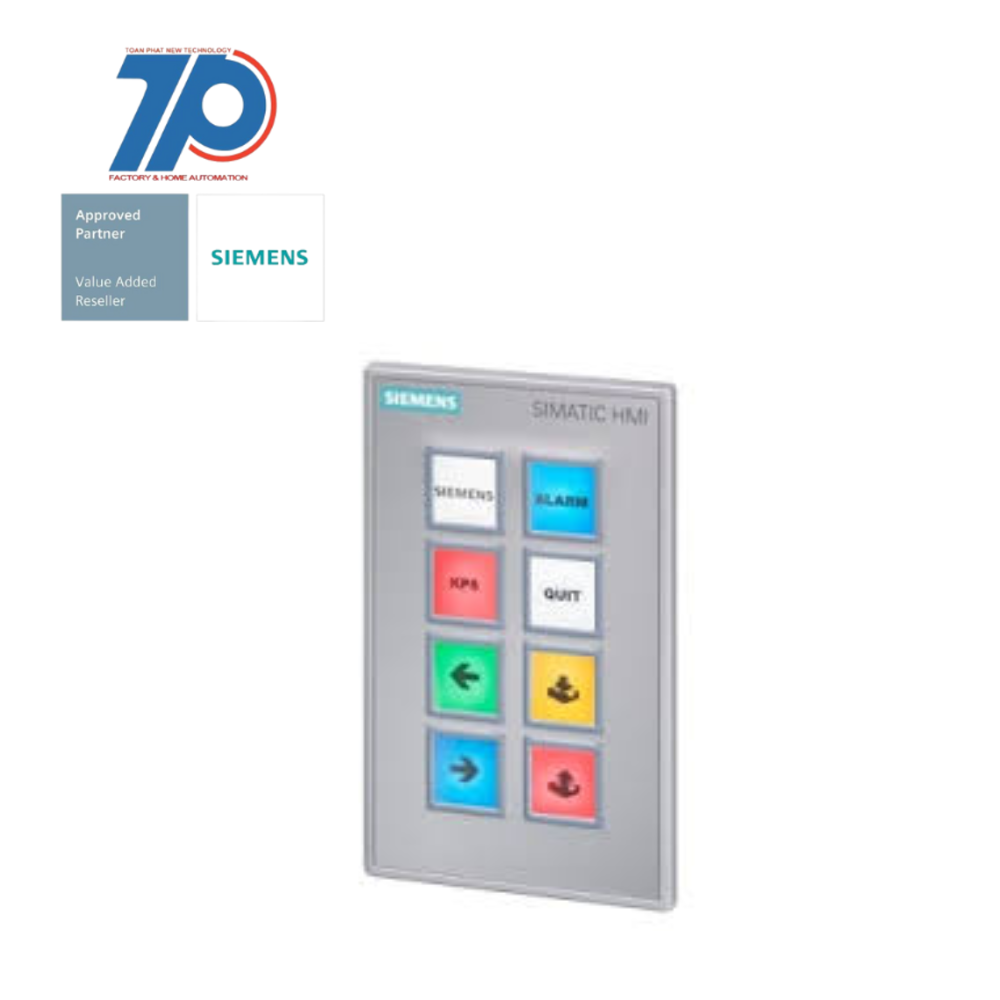

SIPLUS HMI KP8F PN

SIPLUS HMI KP8F PN is a rugged and reliable human-machine interface (HMI) based on 6AV3688-3AF37-0AX0. It is designed to withstand extreme ambient conditions and is ideal for challenging tasks.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KP8F PN offers several commercial benefits:

    • Conformal coating: The SIPLUS HMI KP8F PN is equipped with a conformal coating that protects the internal components from harsh conditions, including 100% relative humidity, condensation, corrosive substances, and gases.
    • Temperature range: It operates in a wide temperature range from -20°C to +55°C, making it suitable for use in both hot and cold environments.
    • Key Panel: The HMI features an 8 short-stroke switches with multi-colored LEDs, providing a user-friendly interface for control and monitoring.
    • PROFINET interfaces with PROFIsafe: It is equipped with PROFINET interfaces that support PROFIsafe, ensuring safe and reliable communication.
    • Digital Inputs/Outputs: The SIPLUS HMI KP8F PN has 8 digital inputs/outputs and 2 safety digital input pins, allowing for flexible connectivity and integration.
    • Loop-through functionality: The device supports loop-through functionality, allowing 24 V DC to be looped through parameterizable as of STEP 7 V5.5.
    • Reliability: With its rugged design and conformal coating, it ensures reliable operation even in harsh ambient conditions.
    • Flexibility: The device's PROFINET interfaces and digital inputs/outputs provide flexibility in system integration and connectivity.
    • User-friendly interface: The Key Panel with multi-colored LEDs offers a user-friendly interface for easy control and monitoring.
    • Cost-effective: SIPLUS extreme devices are cost-effective solutions for demanding applications, reducing downtime and maintenance costs.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces industrial Ethernet2
Degree of protection (IP), front sideIP65
Supporting protocol for Data-Highwayfalse
Number of indicator lamps8
Supporting protocol for PROFIsafetrue
Supporting protocol for INTERBUSfalse
IO link masterfalse
Supporting protocol for Foundation Fieldbusfalse
Built-in depth49 mm
Supporting protocol for Modbusfalse
Supporting protocol for LONfalse
Suitable for safety functionstrue
Supply voltage DC28.8 V
Supporting protocol for other bus systemsfalse
Supporting protocol for PROFINET IOtrue
Number of built-in positions for control circuit devices0
Supporting protocol for TCP/IPfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-2320
Radio standard GPRSfalse
Height of the front155 mm
Number of interfaces PROFINET2
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Front built-in possibletrue
With parameterizable buttonstrue
Number of LED colour modes5
Width of the front98 mm
Wall mounting/direct mountingfalse
Supporting protocol for SUCONETfalse
Supporting protocol for SafetyBUS pfalse
Radio standard Bluetoothfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Rail mounting possiblefalse
Rack-assembly possiblefalse
Number of buttons8
Number of HW-interfaces RS-4220
Supporting protocol for EtherCATfalse
Number of HW-interfaces USB0
Supporting protocol for ASIfalse
Radio standard UMTSfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces parallel0
Number of digital outputs8
Supporting protocol for DeviceNetfalse
Number of digital inputs8
With optical interfacefalse
Supporting protocol for PROFIBUSfalse
Operating temperature-20 °C
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces wireless0
Supporting protocol for CANfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard GSMfalse
Supply voltage DC20.4 V
Operating temperature55 °C
With test for buttons and indicator lampstrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
