Material ID: 6AG1688-3EH47-2AX0

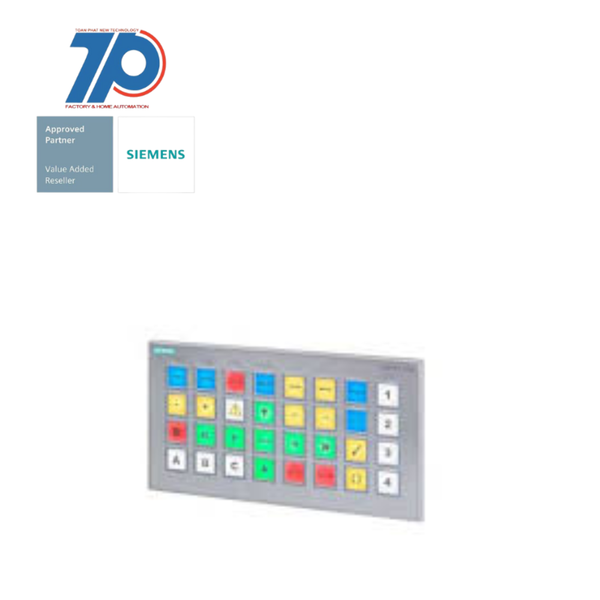

SIPLUS HMI KP32F PN

SIPLUS HMI KP32F PN is a robust and reliable human-machine interface designed for extremely challenging tasks in harsh ambient conditions. With its advanced features and durable construction, it is the perfect choice for demanding industrial applications.

Technical Features:

Commercial Benefits:

SIPLUS HMI KP32F PN offers several commercial benefits that make it an ideal choice for industrial applications:

    • Model: 6AV3688-3EH47-0AX0
    • Temperature Range: -20°C to +55°C
    • Key Panel: 32 short-stroke keys with multi-colored LEDs
    • PROFINET Interfaces with PROFIsafe
    • Digital Inputs: 16 DI + 16 DI/DQ
    • Safety DI Pins: 4
    • 24 V DC Loop-through
    • Parameterizable with STEP 7 V5.5
    • Conformal Coating: The device is equipped with a conformal coating that protects the internal components from harsh environmental conditions, including 100% relative humidity, condensation, corrosive substances, and gases.
    • Durable Construction: The robust construction of SIPLUS HMI KP32F PN ensures long-term reliability and performance even in challenging environments.
    • Enhanced Safety: The PROFINET interfaces with PROFIsafe provide enhanced safety features, making it suitable for applications that require high levels of safety.
    • Easy Integration: The device can be easily integrated into existing systems and is parameterizable with STEP 7 V5.5, allowing for seamless integration and configuration.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces wireless0
Front built-in possibletrue
Operating temperature55 °C
Supply voltage DC20.4 V
Supporting protocol for CANfalse
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
IO link masterfalse
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
Number of HW-interfaces industrial Ethernet2
Height of the front155 mm
Supporting protocol for LONfalse
Width of the front295 mm
Number of HW-interfaces USB0
Supporting protocol for KNXfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Modbusfalse
With parameterizable buttonstrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
With test for buttons and indicator lampstrue
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for SafetyBUS pfalse
Number of buttons32
Wall mounting/direct mountingfalse
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Supporting protocol for PROFIsafetrue
Number of HW-interfaces parallel0
Supporting protocol for Foundation Fieldbusfalse
Suitable for safety functionstrue
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4220
Rail mounting possiblefalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for TCP/IPfalse
Radio standard UMTSfalse
Supporting protocol for EtherCATfalse
Built-in depth69 mm
Number of HW-interfaces serial TTY0
Supporting protocol for Data-Highwayfalse
Supporting protocol for other bus systemsfalse
Operating temperature-20 °C
Supporting protocol for EtherNet/IPfalse
Supporting protocol for PROFINET CBAfalse
Radio standard GSMfalse
Number of HW-interfaces other0
Number of built-in positions for control circuit devices0
Supply voltage DC28.8 V
Number of LED colour modes5
Number of interfaces PROFINET2
Radio standard GPRSfalse
Degree of protection (IP), front sideIP65
Number of digital inputs32
Supporting protocol for PROFINET IOtrue
Number of indicator lamps8
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs16
