Material ID: 6AG4021-0AA11-1BA0

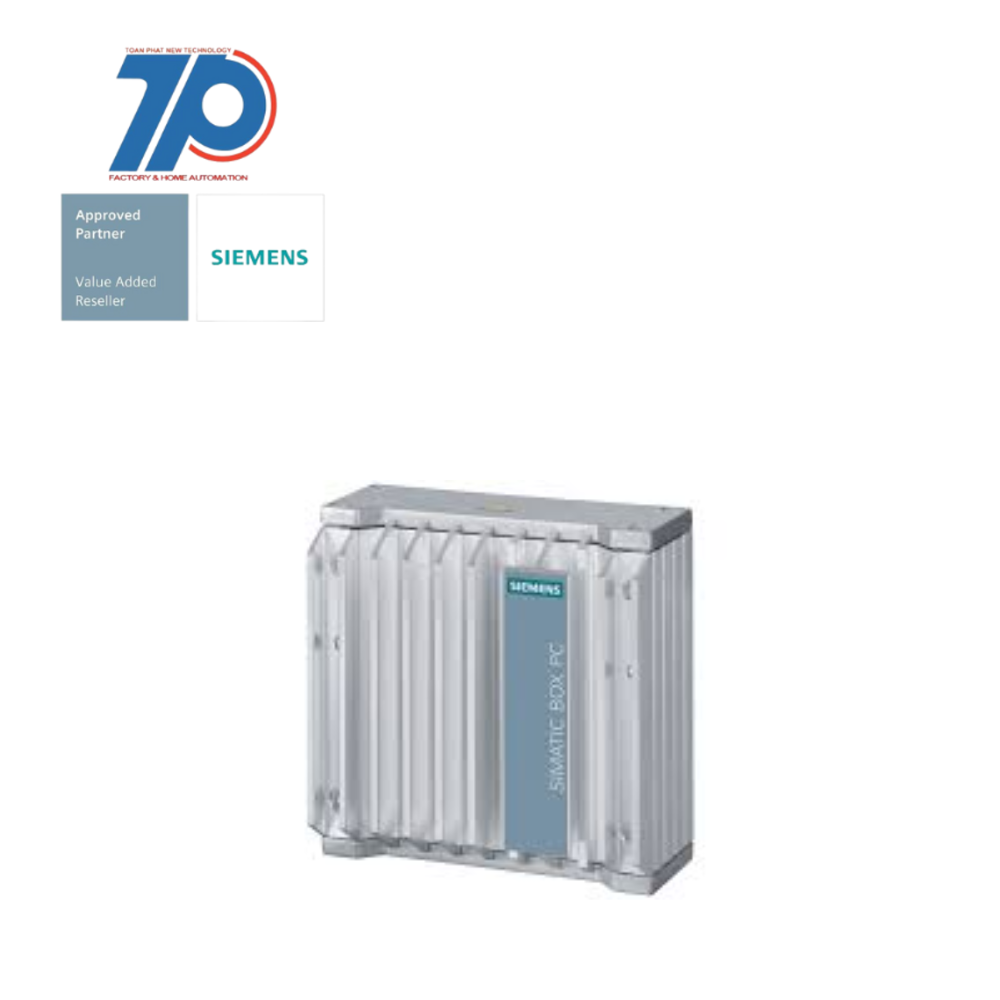

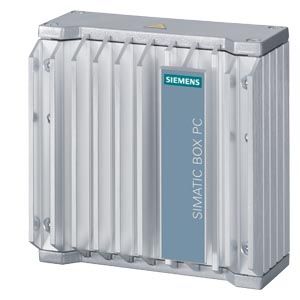

SIMATIC IPC127E
The SIMATIC IPC127E is a compact industrial PC designed for efficient data recording, processing, and sharing in the production environment. With its ultra-compact enclosure of just 0.3 liters volume, it can be easily integrated into control cabinets or directly on machines with minimal space requirements.
Technical Features:
Commercial Benefits:
The SIMATIC IPC127E offers the following commercial benefits:
Please note that the mounting brackets are not included with the product and must be ordered separately.
- Processor: Atom E3930 (2C/2T)
- Memory: 2 GB RAM
- Storage: 64 GB SSD
- Operating System: Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es)
- Connectivity: 2x Ethernet RJ45, 2x USB3.0
- Flexibility: The all-metal enclosure allows for flexible and maintenance-free use even under harsh conditions.
- IoT Gateway: It can be used as an IoT gateway between the Cloud or the company's IT level and production.
- Quick Availability: Pre-configured versions ensure that the right product is available to users in a very short time.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces industrial Ethernet | 2 |
| Radio standard UMTS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Data-Highway | false |
| Number of free PCI-slots | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for other bus systems | true |
| Depth | 41 mm |
| Supporting protocol for PROFINET CBA | false |
| Number of interfaces PROFINET | 2 |
| With sound card | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces RS-485 | 0 |
| With other storage media | false |
| Supporting protocol for DeviceNet | false |
| With floppy disc drive | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet Safety | false |
| Operating temperature | 0 °C |
| Operating temperature | 55 °C |
| Supply voltage DC | 20.4 V |
| Supporting protocol for KNX | false |
| Processor clock rate | 1.3 GHz |
| IO link master | false |
| Supporting protocol for LON | false |
| With graphic card | true |
| Height | 85 mm |
| Supporting protocol for SUCONET | false |
| Radio standard Bluetooth | false |
| Number of free AGP-slots | 0 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for Modbus | false |
| Supporting protocol for EtherCAT | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for INTERBUS-Safety | false |
| Number of HW-interfaces other | 0 |
| Suitable for safety functions | false |
| Width | 85 mm |
| Supporting protocol for PROFIsafe | false |
| Construction type housing | Box |
| Max. main memory | 2000 MB |
| Number of storage media bays | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of other free slots | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of free PCMCIA-slots | 0 |
| Radio standard GPRS | false |
| Supply voltage DC | 28.8 V |
| Degree of protection (IP) | IP40 |
| Supporting protocol for EtherNet/IP | false |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces USB | 2 |
| With optical drive | false |
| Rail mounting possible | true |
| Radio standard GSM | false |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Front built-in possible | false |
| Number of HW-interfaces RS-422 | 0 |
| Number of free ISA-slots | 0 |
| Supporting protocol for PROFIBUS | false |
| Wall mounting/direct mounting | true |
