Material ID: 6AG4021-0AA12-0BA0

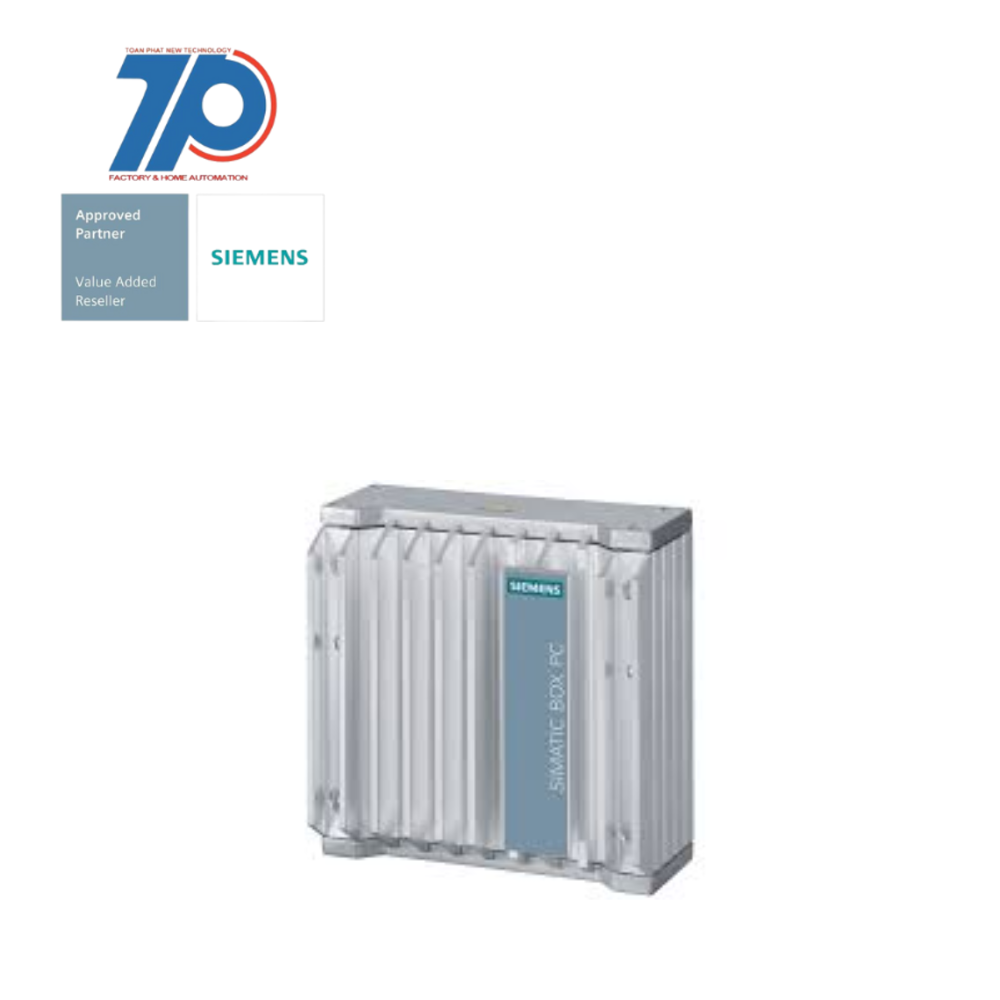

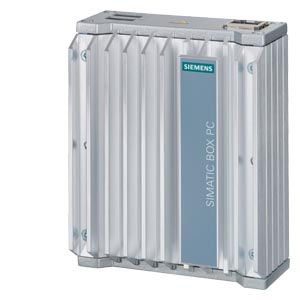

SIMATIC IPC127E

The SIMATIC IPC127E is an ultra-compact industrial PC designed for reliable data recording, collection, processing, and sharing directly in the production environment. With its compact enclosure of just 0.3 liters volume, it can be easily integrated into control cabinets or directly on machines with minimal space requirements.

Key Technical Features:

Commercial Benefits:

Please note that mounting brackets are not included with the product and must be ordered separately.

    • Processor: Atom E3930 (2C/2T)
    • Memory: 2 GB RAM
    • Connectivity: Extended version with 3x Ethernet RJ45, 4x USB3.0
    • Storage: 64 GB SSD
    • Operating System: Not included
    • The all-metal enclosure ensures flexibility and maintenance-free operation even under harsh conditions.
    • Can be used as an IoT gateway between the Cloud or the company's IT level and production.
    • Pre-configured versions are available for quick deployment.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for EtherNet/IPfalse
Max. main memory2000 MB
Supporting protocol for PROFINET CBAfalse
Front built-in possiblefalse
Number of HW-interfaces USB4
Wall mounting/direct mountingtrue
Rail mounting possibletrue
With sound cardfalse
Radio standard GSMfalse
Width85 mm
Number of free PCI-slots0
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-Safetyfalse
Radio standard UMTSfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Degree of protection (IP)IP40
With floppy disc drivefalse
Supporting protocol for EtherCATfalse
With graphic cardtrue
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Suitable for safety functionsfalse
With optical drivefalse
Supporting protocol for KNXfalse
Number of free ISA-slots0
Supporting protocol for DeviceNet Safetyfalse
Radio standard Bluetoothfalse
Supporting protocol for Foundation Fieldbusfalse
Number of interfaces PROFINET3
Number of HW-interfaces RS-4220
Operating temperature0 °C
Supporting protocol for CANfalse
With other storage mediafalse
Radio standard GPRSfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Supporting protocol for other bus systemstrue
Number of HW-interfaces industrial Ethernet3
Supporting protocol for Modbusfalse
IO link masterfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Operating temperature55 °C
Supply voltage DC20.4 V
Supporting protocol for PROFIBUSfalse
Rack-assembly possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Number of HW-interfaces parallel0
Supporting protocol for SUCONETfalse
Supply voltage DC28.8 V
Height104 mm
Supporting protocol for PROFINET IOtrue
Number of other free slots0
Number of HW-interfaces other0
Number of free AGP-slots0
Number of free PCMCIA-slots0
Supporting protocol for PROFIsafefalse
Supporting protocol for LONfalse
Processor clock rate1.3 GHz
Supporting protocol for INTERBUSfalse
Construction type housingBox
Number of storage media bays0
Depth41 mm
