Material ID: 6AG4021-0AB11-0BA0

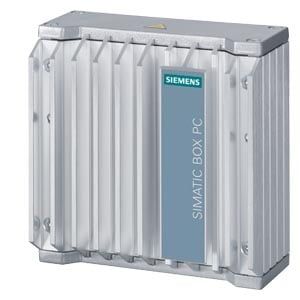

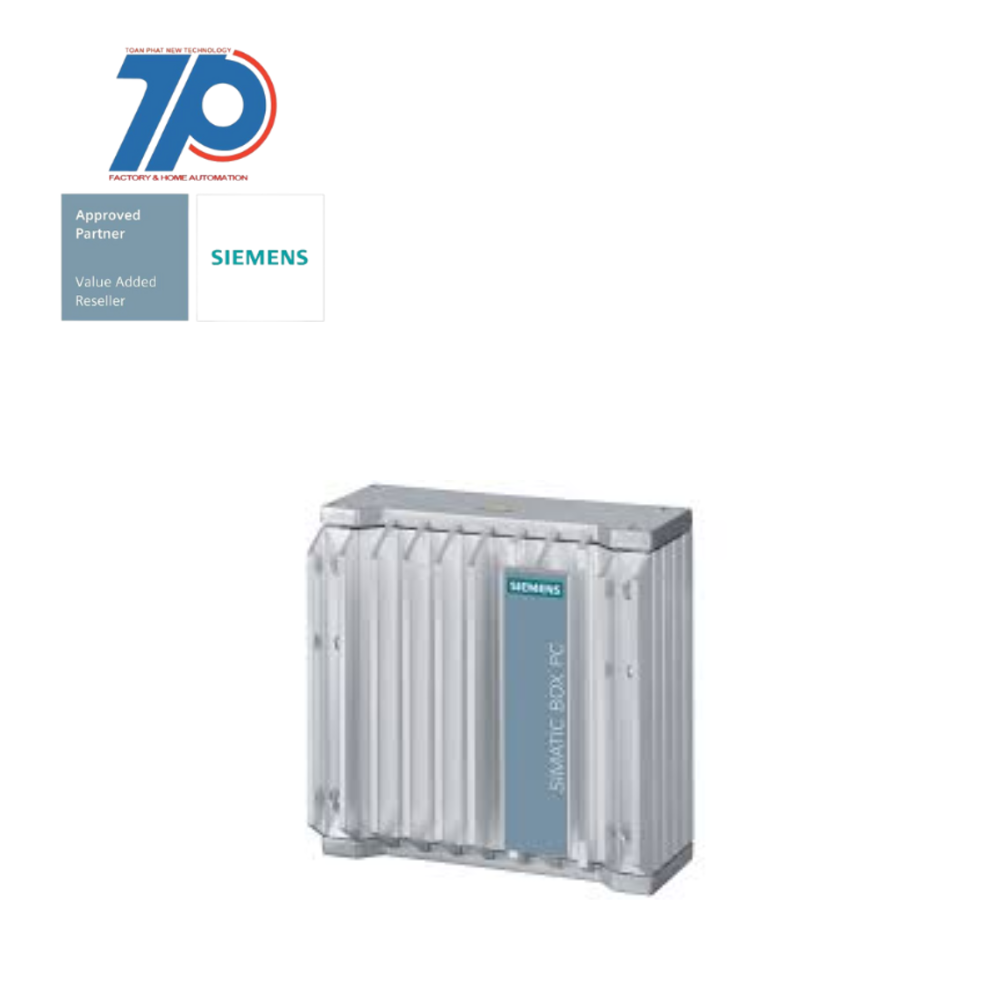

SIMATIC IPC127E

The SIMATIC IPC127E is an ultra-compact industrial PC designed for reliable data recording, collection, processing, and sharing directly in the production environment.

Technical Features:

Commercial Benefits:

Thanks to its ultra-compact enclosure with just 0.3 liters volume, the SIMATIC IPC127E can be easily integrated into control cabinets or directly on machines with minimal space requirements. The all-metal enclosure ensures flexibility and maintenance-free operation even under harsh conditions.

The SIMATIC IPC127E can be used as an IoT gateway between the Cloud or the company's IT level and production. Pre-configured versions are available, allowing users to quickly obtain the right product for their needs.

Please note that mounting brackets are not included with the product and must be ordered separately.

    • Processor: Atom E3940 (4C/4T)
    • RAM: 4 GB
    • Connectivity: 2x Ethernet RJ45, 2x USB3.0
    • Storage: 64 GB SSD
    • Operating System: Not included
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFIBUSfalse
Radio standard WLAN 802.11false
Front built-in possiblefalse
With optical drivefalse
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Supporting protocol for DeviceNetfalse
Supply voltage DC28.8 V
Processor clock rate1.6 GHz
Supporting protocol for ASIfalse
Number of interfaces PROFINET2
Supporting protocol for CANfalse
Suitable for safety functionsfalse
Operating temperature0 °C
Supporting protocol for SUCONETfalse
With sound cardfalse
Radio standard GPRSfalse
Number of storage media bays0
With graphic cardtrue
Number of HW-interfaces USB2
Number of free AGP-slots0
Height85 mm
Number of free PCI-slots0
Supporting protocol for EtherCATfalse
Number of HW-interfaces RS-4850
Rail mounting possibletrue
Number of HW-interfaces wireless0
Supporting protocol for other bus systemstrue
Supporting protocol for Foundation Fieldbusfalse
Width85 mm
Wall mounting/direct mountingtrue
Number of other free slots0
Supporting protocol for LONfalse
Number of HW-interfaces RS-2320
Supporting protocol for INTERBUSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GSMfalse
Number of HW-interfaces parallel0
Supporting protocol for PROFINET CBAfalse
Max. main memory4000 MB
Construction type housingBox
Supporting protocol for PROFINET IOtrue
Number of free PCMCIA-slots0
Supporting protocol for INTERBUS-Safetyfalse
Number of free ISA-slots0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
Supporting protocol for Modbusfalse
With floppy disc drivefalse
Supporting protocol for Data-Highwayfalse
Radio standard UMTSfalse
IO link masterfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Radio standard Bluetoothfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Operating temperature55 °C
Supply voltage DC20.4 V
With other storage mediafalse
Degree of protection (IP)IP40
Supporting protocol for SERCOSfalse
Number of HW-interfaces other0
Supporting protocol for DeviceNet Safetyfalse
Depth41 mm
