Material ID: 6AG4021-0AB11-1BA0

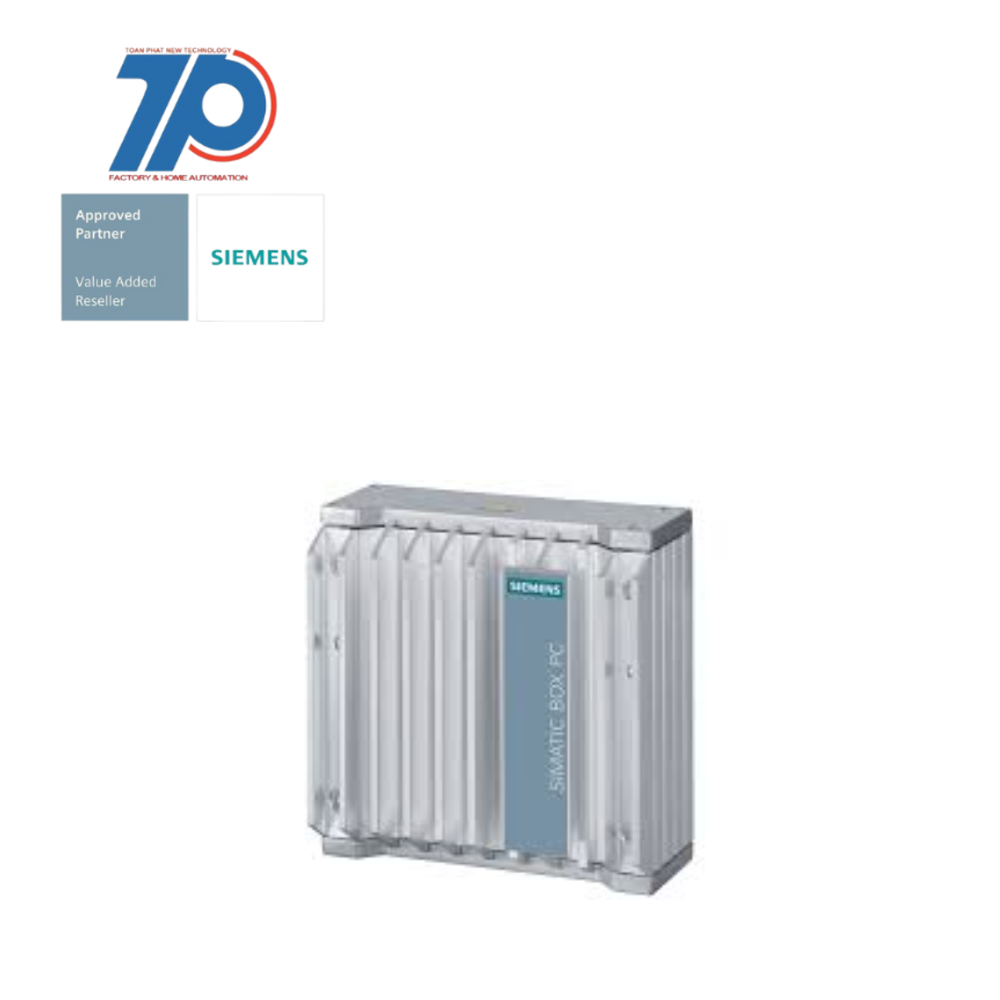

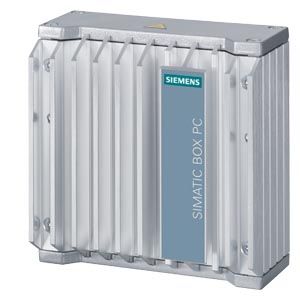

Product Description: SIMATIC IPC127E

Technical Features:

Commercial Benefits:

Thanks to the ultra-compact enclosure with just 0.3 liters volume, the SIMATIC IPC127E can be easily integrated into the control cabinet or directly on the machine with minimal space requirements. The all-metal enclosure ensures flexibility and maintenance-free operation even under harsh conditions. This industrial PC allows reliable recording, collecting, processing, and sharing of data directly in the production environment. It can also serve as an IoT gateway between the Cloud or the company's IT level and production. With pre-configured versions, users can quickly access the right product. Please note that mounting brackets are not included and must be ordered separately.

    • Processor: Atom E3940 (4C/4T)
    • RAM: 4 GB
    • Version: Base version
    • Connectivity: 2x Ethernet RJ45, 2x USB3.0
    • Operating System: Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es)
    • Storage: 64 GB SSD
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Height85 mm
Degree of protection (IP)IP40
Number of free AGP-slots0
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for INTERBUS-Safetyfalse
Number of free ISA-slots0
Number of HW-interfaces RS-2320
Supporting protocol for EtherCATfalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GPRSfalse
Number of HW-interfaces RS-4220
Supporting protocol for SafetyBUS pfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Radio standard Bluetoothfalse
Supply voltage DC20.4 V
Operating temperature55 °C
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for CANfalse
Supporting protocol for PROFINET IOtrue
Number of HW-interfaces USB2
Supporting protocol for LONfalse
Rail mounting possibletrue
Wall mounting/direct mountingtrue
Radio standard GSMfalse
Front built-in possiblefalse
With floppy disc drivefalse
Number of HW-interfaces wireless0
Max. main memory4000 MB
With optical drivefalse
Width85 mm
Number of free PCI-slots0
Suitable for safety functionsfalse
With other storage mediafalse
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Number of HW-interfaces other0
Operating temperature0 °C
Supporting protocol for Modbusfalse
Number of interfaces PROFINET2
Number of HW-interfaces parallel0
Supporting protocol for Foundation Fieldbusfalse
Number of storage media bays0
Depth41 mm
Supply voltage DC28.8 V
Number of HW-interfaces serial TTY0
With graphic cardtrue
Supporting protocol for SERCOSfalse
IO link masterfalse
Supporting protocol for KNXfalse
Construction type housingBox
Radio standard UMTSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for other bus systemstrue
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces industrial Ethernet2
Processor clock rate1.6 GHz
Supporting protocol for Data-Highwayfalse
Number of free PCMCIA-slots0
With sound cardfalse
Number of other free slots0
