Material ID: 6AG4021-0AB11-1CA0

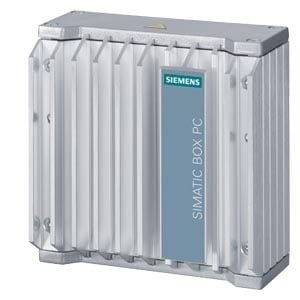

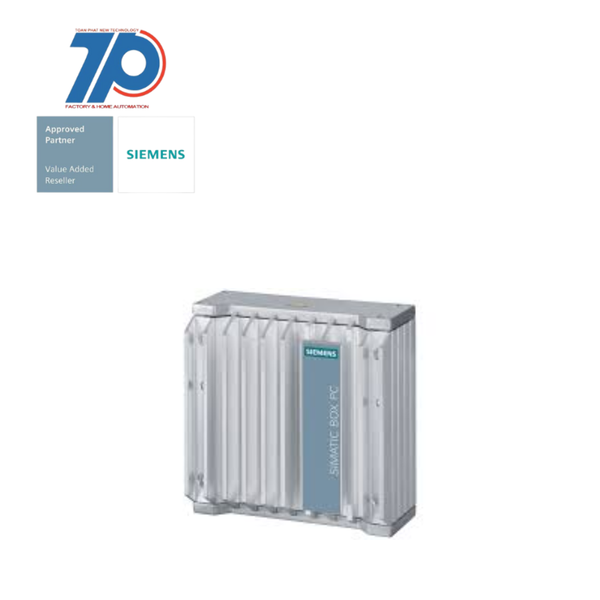

SIMATIC IPC127E

Technical Features:

Commercial Benefits:

Thanks to the ultra-compact enclosure with just 0.3 liters volume, the SIMATIC IPC127E can be easily integrated into the control cabinet or directly on the machine with minimal space requirements. The all-metal enclosure ensures flexibility and maintenance-free operation even under harsh conditions.

The SIMATIC IPC127E allows for reliable recording, collecting, processing, and sharing of data directly in the production environment. It can also be used as an IoT gateway between the Cloud or the company's IT level and production.

With pre-configured versions available, users can quickly obtain the right product for their needs. Please note that mounting brackets are not included with the product and must be ordered separately.

    • Processor: Atom E3940 (4C/4T)
    • RAM: 4 GB
    • Storage: 128 GB SSD
    • Operating System: Windows 10 Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es)
    • Connectivity: 2x Ethernet RJ45, 2x USB3.0
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of free PCMCIA-slots0
Rail mounting possibletrue
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for INTERBUSfalse
Construction type housingBox
With floppy disc drivefalse
With graphic cardtrue
Supporting protocol for KNXfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
Operating temperature55 °C
Supporting protocol for other bus systemstrue
Number of interfaces PROFINET2
Number of free AGP-slots0
With sound cardfalse
Number of storage media bays0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
IO link masterfalse
Supporting protocol for SERCOSfalse
Processor clock rate1.6 GHz
Wall mounting/direct mountingtrue
Supporting protocol for EtherNet/IPfalse
Number of free ISA-slots0
Operating temperature0 °C
Number of HW-interfaces RS-4850
With other storage mediafalse
Suitable for safety functionsfalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Number of free PCI-slots0
With optical drivefalse
Max. main memory4000 MB
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces USB2
Width85 mm
Number of HW-interfaces parallel0
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Supply voltage DC28.8 V
Number of other free slots0
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Rack-assembly possiblefalse
Number of HW-interfaces other0
Supporting protocol for Modbusfalse
Height85 mm
Front built-in possiblefalse
Radio standard Bluetoothfalse
Degree of protection (IP)IP40
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces RS-2320
Depth41 mm
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for EtherCATfalse
Radio standard GSMfalse
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNet Safetyfalse
