Material ID: 6AG4021-0AB12-0CA0

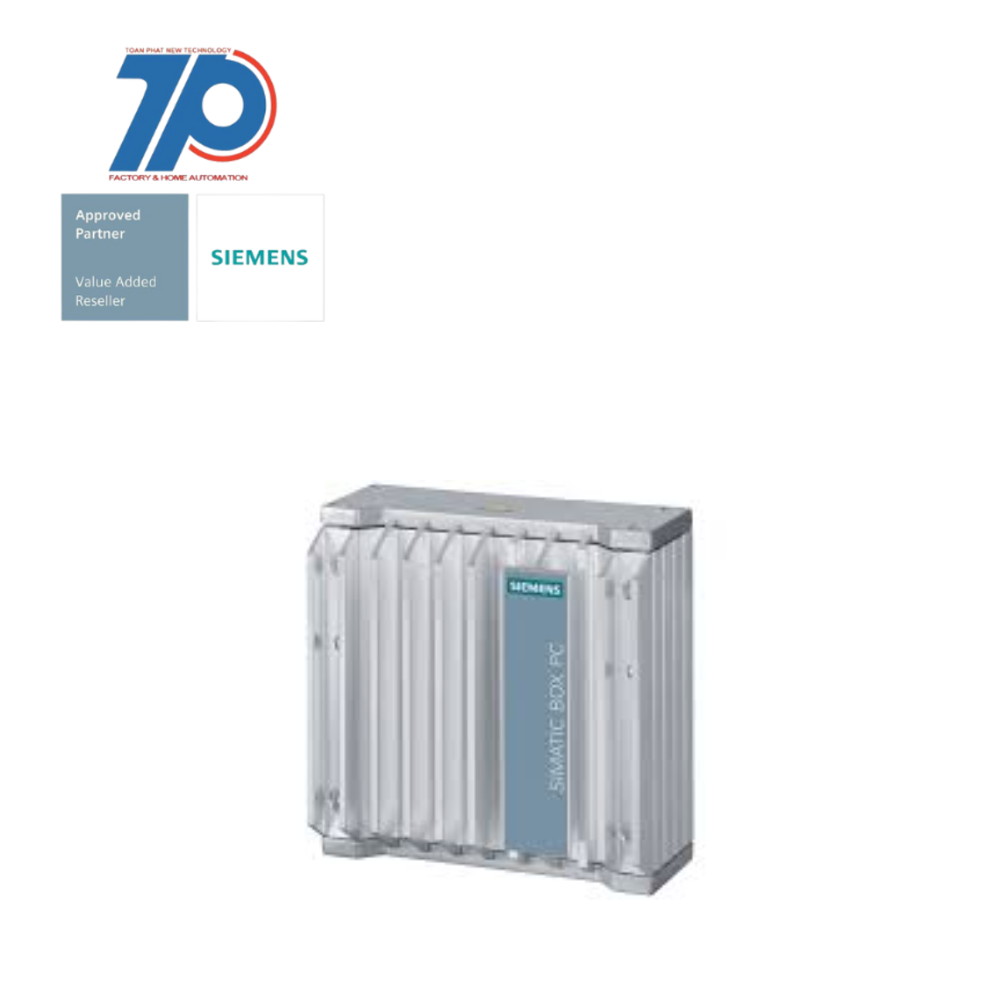

SIMATIC IPC127E

The SIMATIC IPC127E is an ultra-compact industrial PC designed for efficient data recording, collection, processing, and sharing in the production environment. With its small form factor of just 0.3 liters, it can be easily integrated into control cabinets or directly on machines with minimal space requirements.

Technical Features:

Commercial Benefits:

The SIMATIC IPC127E offers the following commercial benefits:

Please note that the mounting brackets are not included with the product and must be ordered separately.

    • Processor: Atom E3940 (4C/4T)
    • Memory: 4 GB RAM
    • Storage: 128 GB SSD
    • Connectivity: 3x Ethernet RJ45, 4x USB3.0
    • Operating System: Not included
    • Flexibility: The all-metal enclosure allows for flexible and maintenance-free use even under harsh conditions.
    • IoT Gateway: It can be used as an IoT gateway between the Cloud or the company's IT level and production.
    • Quick Availability: Pre-configured versions ensure that the right product is available to users in a very short time.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-4220
Radio standard WLAN 802.11false
Supporting protocol for PROFIBUSfalse
Number of interfaces PROFINET3
With floppy disc drivefalse
Number of free PCMCIA-slots0
Supply voltage DC20.4 V
Operating temperature55 °C
Supporting protocol for PROFIsafefalse
Supporting protocol for DeviceNet Safetyfalse
Wall mounting/direct mountingtrue
With sound cardfalse
Number of other free slots0
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GSMfalse
Supporting protocol for ASIfalse
Supporting protocol for EtherCATfalse
Number of HW-interfaces other0
Radio standard Bluetoothfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for INTERBUS-Safetyfalse
Number of free ISA-slots0
Number of storage media bays0
Height104 mm
Front built-in possiblefalse
Depth41 mm
Degree of protection (IP)IP40
Width85 mm
Supporting protocol for PROFINET IOtrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet3
Supporting protocol for Modbusfalse
With optical drivefalse
Max. main memory4000 MB
Radio standard GPRSfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Operating temperature0 °C
Supporting protocol for LONfalse
Number of HW-interfaces wireless0
Supporting protocol for SERCOSfalse
Number of HW-interfaces USB4
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Rack-assembly possiblefalse
With graphic cardtrue
Supporting protocol for INTERBUSfalse
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for other bus systemstrue
Processor clock rate1.6 GHz
Supporting protocol for CANfalse
With other storage mediafalse
Construction type housingBox
Radio standard UMTSfalse
Number of HW-interfaces parallel0
Number of free PCI-slots0
IO link masterfalse
Rail mounting possibletrue
Supporting protocol for Foundation Fieldbusfalse
Suitable for safety functionsfalse
Number of free AGP-slots0
Supporting protocol for KNXfalse
