6AG4104-4CA22-0BX2

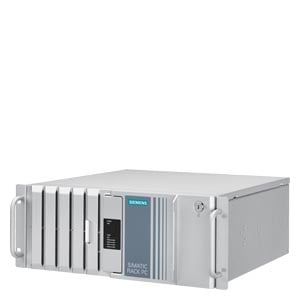

SIMATIC IPC547G

The SIMATIC IPC547G is a powerful Rack PC designed for industrial applications. With its innovative Intel processor technology, it offers maximum performance, user-friendliness, and flexibility.

Technical Features:

Commercial Benefits:

The SIMATIC IPC547G offers an appealing pricing, making it a cost-effective solution for industrial applications. It is ideal for process visualization and industrial image processing, where maximum PC system performance is required. It also provides a high degree of system availability, flexibility, and compactness in 19" IPC technology.

Additionally, the SIMATIC IPC547G can be used as a control cabinet device for horizontal and vertical installation. It also comes with an optional Tower Kit, allowing it to be used as an industrial workstation or server in the process industry and technical offices.

Other Features:

Application Areas:

The SIMATIC IPC547G is suitable for various applications, including:

It can be used not only in industrial environments but also in building automation or public facilities.

• • Form Factor: Rack PC
  • Size: 19", 4HU
  • Interfaces:
    • Front: 2x USB 3.0
    • Rear: 2x Intel Gigabit Ethernet, 2x PS/2, Audio
  • Expansion Slots: 7 slots (5x PCI Express, 2x PCI)
  • Temperature and Fan Monitoring
  • Watchdog
  • Card Retainer
  • Graphic Expansion Options (Multi-monitoring)
  • Front-side Status Indicators
  • UL-certified and CE Marked for Industrial and Commercial Use
  • Installation Depth: 446 mm
  • All-metal Enclosure with Anti-corrosive Surface (Blue Chromatic)
  • EMC Compatibility for Industrial and Office Areas
  • Installation Compatibility Across Generations of Devices
  • Certifications and Approvals: cULus, CE, KC, C-Tick
  • System-tested with SIMATIC Components for Easy Integration into the TIA Environment
  • Long-term Availability: At least 2.5 years
  • Guaranteed Spare Parts Supply: At least 3 years
  • Worldwide Service and Support
  • High-performance Applications and IT Applications at the Control/Cell Level
  • Process and Visualization Applications
  • Industrial High-end Image Processing
  • Quality Assurance and Monitoring Tasks
  • Measurement, Open-loop, and Closed-loop Control Tasks
  • Data Recording and Data Management
