Material ID: 6AG4104-4GN16-4BX0

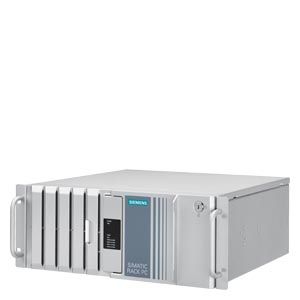

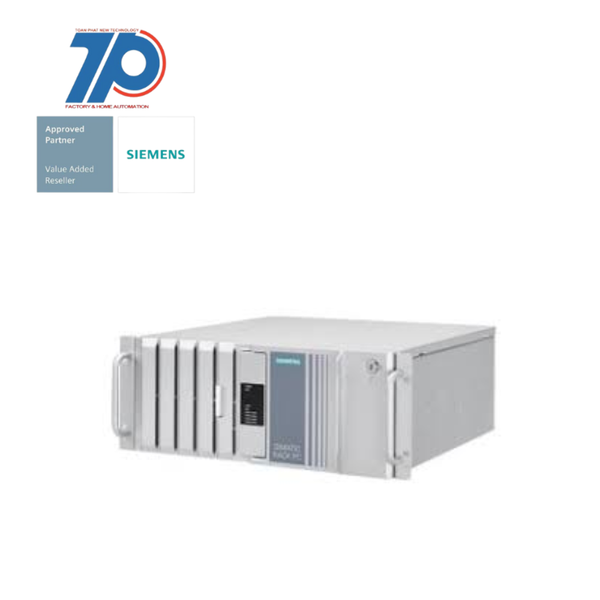

SIMATIC IPC547G

The SIMATIC IPC547G is a powerful Rack PC designed for industrial applications. With its innovative Intel processor technology, it offers maximum performance, user-friendliness, and flexibility.

Technical Features:

Commercial Benefits:

The SIMATIC IPC547G offers an appealing pricing, making it a cost-effective solution for industrial applications. It provides maximum PC system performance, high system availability, flexibility, and compactness in 19" IPC technology.

It can be used as a control cabinet device for horizontal and vertical installation, or with an optional Tower Kit for use as an industrial workstation or server. The SIMATIC IPC547G is suitable for various applications including process visualization, industrial image processing, quality assurance, monitoring tasks, and data management.

Key Features:

Whether it's in industrial applications, building automation, or public facilities, the SIMATIC IPC547G is a reliable and high-performance solution for your computing needs.

    • Processor: Core i5-6500 (4C/4T, 3.2(3.6) GHz, 6 MB cache, iAMT)
    • Memory: 8 GB DDR4 SD-RAM (2x 4 GB)
    • Storage: RAID1 2x 1 TB HDD in interchangeable insert, front
    • Connectivity: MB (CHIPSET C236, 2x Gbit LAN, 2x USB3.0 front, 4x USB3.0 & 4x USB2.0 rear, 1x USB2.0 int. 1x COM 1, 2x PS/2, audio; 2x display ports V1.2, 1x DVI-D, 7 slots: 5x PCI-E, 2x PCI)
    • Operating System: Windows 7 Ultimate 64 bit SP1
    • Graphic Expansion: Supports multi-monitoring for complex visualization tasks
    • System Availability: Front-side status indicators for increased system availability
    • Installation: Compatible with 19" cabinets with a depth of 500 mm
    • Design: All-metal enclosure with anti-corrosive surface (blue chromatic) and optional design surface (paint)
    • Compatibility: EMC compatibility for industrial and office areas
    • Certifications: UL-certified and CE marked for use in industrial, residential, business, and commercial sectors
    • Integration: System-tested with SIMATIC components for easy integration into the TIA environment
    • Long-Term Availability: Guaranteed spare parts supply of at least 3 years and worldwide service and support
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
With sound cardtrue
Operating temperature0 °C
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces wireless0
Radio standard GPRSfalse
Supporting protocol for LONfalse
Supporting protocol for SERCOSfalse
With other storage mediafalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces parallel1
Depth446.6 mm
Supporting protocol for Foundation Fieldbusfalse
With hard disctrue
Supporting protocol for PROFIBUSfalse
With floppy disc drivefalse
Max. main memory8000 MB
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemsfalse
With optical drivetrue
Supporting protocol for Data-Highwayfalse
Supply voltage AC 60 Hz240 V
Radio standard WLAN 802.11false
Number of HW-interfaces serial TTY0
IO link masterfalse
Wall mounting/direct mountingfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for KNXfalse
Operating temperature40 °C
Supporting protocol for PROFINET IOfalse
Radio standard UMTSfalse
Construction type housingRack
Width481.4 mm
Number of other free slots0
Number of HW-interfaces other2
Degree of protection (IP)IP30
Number of free PCI-slots2
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-2322
Height176.6 mm
Supporting protocol for AS-Interface Safety at Workfalse
Number of storage media bays4
Supply voltage AC 50 Hz100 V
Radio standard GSMfalse
Number of HW-interfaces industrial Ethernet2
Supporting protocol for Modbusfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Number of free AGP-slots0
Supply voltage AC 60 Hz100 V
Supply voltage AC 50 Hz240 V
Radio standard Bluetoothfalse
Number of free PCMCIA-slots0
Supporting protocol for INTERBUS-Safetyfalse
Rail mounting possiblefalse
Number of free ISA-slots0
Rack-assembly possibletrue
Number of HW-interfaces USB10
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET CBAfalse
Supporting protocol for ASIfalse
Processor clock rate3.2 GHz
Number of interfaces PROFINET0
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for EtherCATfalse
Front built-in possiblefalse
With graphic cardtrue
