6AG4104-4HP18-5BX0

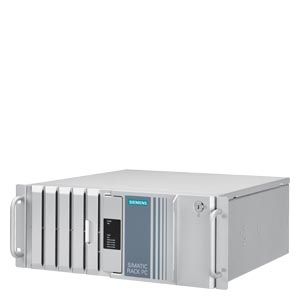

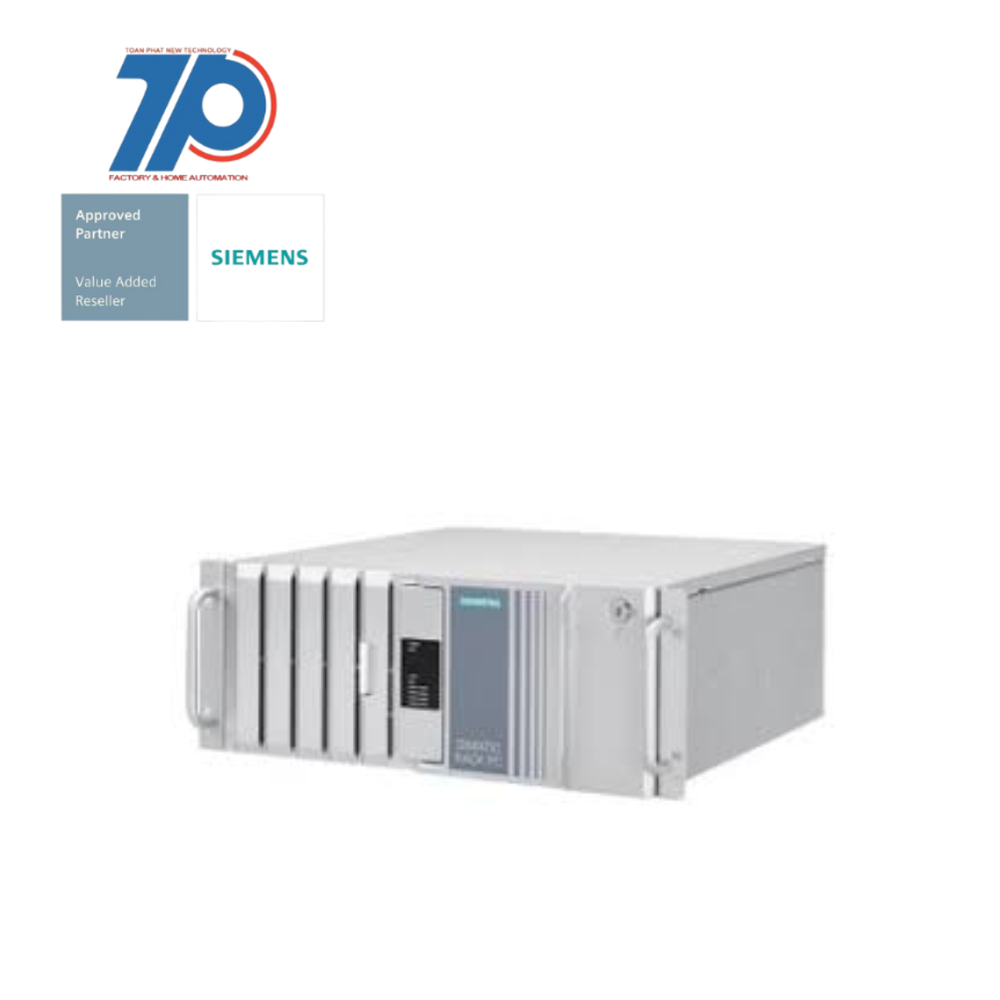

SIMATIC IPC547G

The SIMATIC IPC547G is a powerful Rack PC designed for industrial applications. With its innovative Intel processor technology, it offers maximum performance, user-friendliness, and flexibility.

Technical Features:

Commercial Benefits:

The SIMATIC IPC547G offers a cost-effective solution for industrial applications, such as process visualization and industrial image processing. It provides maximum PC system performance and high system availability. The compact 19" IPC technology allows for flexible installation options, including control cabinet and industrial workstation/server configurations.

Key Features:

Application Areas:

The SIMATIC IPC547G is suitable for various applications, including:

It can be used for high-performance applications, IT applications at the control/cell level, process and visualization applications, industrial high-end image processing, quality assurance and monitoring tasks, measurement, open-loop and closed-loop control tasks, and data recording and data management.

Certifications and Compatibility:

The SIMATIC IPC547G is UL-certified and has the CE mark, making it suitable for use in industrial environments, residential areas, businesses, and commercial sectors. It is compatible with SIMATIC components and offers easy integration into the TIA environment. The device has a long-term availability of at least 2.5 years and a guaranteed spare parts supply of at least 3 years. It also comes with worldwide service and support.

Additional Features:

With its compact size and outstanding performance, the SIMATIC IPC547G is a reliable and versatile solution for industrial applications.

• • Form Factor: Rack PC
  • Size: 19", 4HU
  • Processor: Core i7-6700 (4C/8T, 3.4(4.0) GHz, 8 MB cache, iAMT)
  • Motherboard: CHIPSET C236
  • Network: 2x Gbit LAN
  • USB Ports: 2x USB 3.0 (front), 4x USB 3.0 & 4x USB 2.0 (rear), 1x USB 2.0 (internal)
  • Connectivity: 2x PS/2, 1x COM 1, audio
  • Display Ports: 2x display ports V1.2, 1x DVI-D
  • Expansion Slots: 5x PCI-E, 2x PCI
  • Storage: RAID1 2x 1 TB HDD Enterprise in interchangeable insert (front)
  • Memory: 8 GB DDR4 SD-RAM (2x 4 GB)
  • Enclosure: Painted, COM2+LPT
  • Optical Drive: DVD+/-RW (Slim)
  • Graphics Card: DH: 2x DVI/VGA
  • Power Supply: 2x 100/240V redundant industrial power supply unit (without line cable)
  • Operating System: Windows 7 Ultimate 64 bit SP1
  • Appealing pricing
  • High degree of system availability
  • Flexibility in installation options
  • Graphic expansion options for complex visualization tasks
  • Front-side status indicators for increased system availability
  • System integration
  • Control cabinet design
  • Plant engineering
  • Machine building
  • All-metal enclosure with anti-corrosive surface (blue chromatic)
  • Optional design surface (paint)
  • High degree of EMC compatibility
  • Installation compatibility across generations of devices
  • Certifications and approvals: cULus, CE, KC, C-Tick
