Material ID: 6AG4112-2FS44-2BB3SIMATIC IPC647D

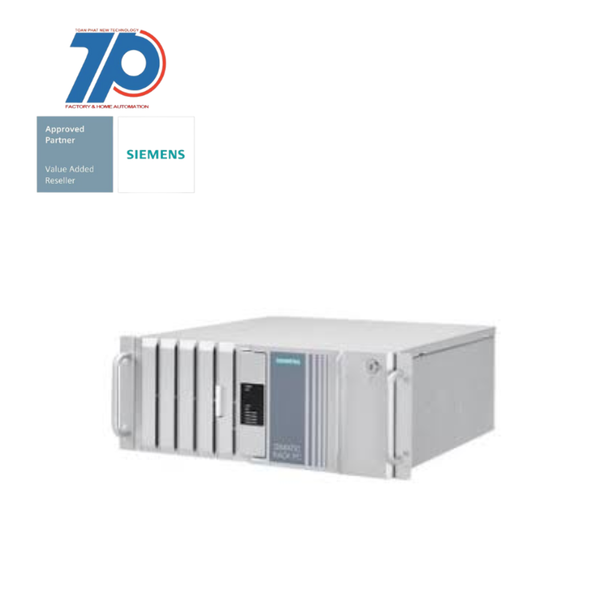

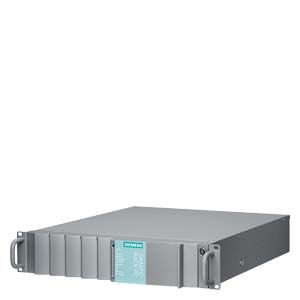

SIMATIC IPC647D

Technical Features:

Commercial Benefits:

The SIMATIC IPC647D offers a range of technical features that make it a versatile and reliable choice for various applications. With its rack PC form factor and 19" size, it provides a compact and space-saving solution. The 2x Gbit Ethernet (IE/PN) with RJ45 connectors ensures high-speed and reliable network connectivity. The DVI-I and display ports allow for flexible display options. The COM 1, PS/2, and audio ports provide additional connectivity options. With 4x USB 3.0 ports, including 1x internal, and 3x USB 2.0 ports, the IPC647D offers ample USB connectivity for peripherals. The temperature and fan monitoring feature ensures optimal performance and reliability. The built-in watchdog and card retainer add an extra layer of security and protection.

    • Form Factor: Rack PC
    • Size: 19", 2 HU
    • 2x Gbit Ethernet (IE/PN), RJ45
    • 1x DVI-I
    • 2x display ports
    • 1x COM 1
    • 2x PS/2
    • Audio
    • 4x USB 3.0, incl. 1x internal
    • 3x USB 2.0
    • Temperature and fan monitoring
    • Watchdog
    • Card retainer
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Front built-in possiblefalse
Number of HW-interfaces wireless0
Operating temperature50 °C
Supporting protocol for Modbusfalse
Supporting protocol for LONfalse
Supporting protocol for CANfalse
Supporting protocol for DeviceNetfalse
Operating temperature0 °C
Supporting protocol for SafetyBUS pfalse
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for INTERBUSfalse
Depth444 mm
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces serial TTY0
Number of free ISA-slots0
Supporting protocol for KNXfalse
Radio standard UMTSfalse
Height88 mm
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Radio standard Bluetoothfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET CBAfalse
Max. main memory32000 MB
Supporting protocol for DeviceNet Safetyfalse
Number of free PCMCIA-slots0
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for EtherCATfalse
With floppy disc drivefalse
Supporting protocol for Data-Highwayfalse
IO link masterfalse
Supporting protocol for PROFIsafefalse
Suitable for safety functionsfalse
Number of free AGP-slots0
Supporting protocol for ASIfalse
Radio standard GSMfalse
Width430 mm
