Material ID: 6AG4112-2GA35-0BC3SIMATIC IPC647D

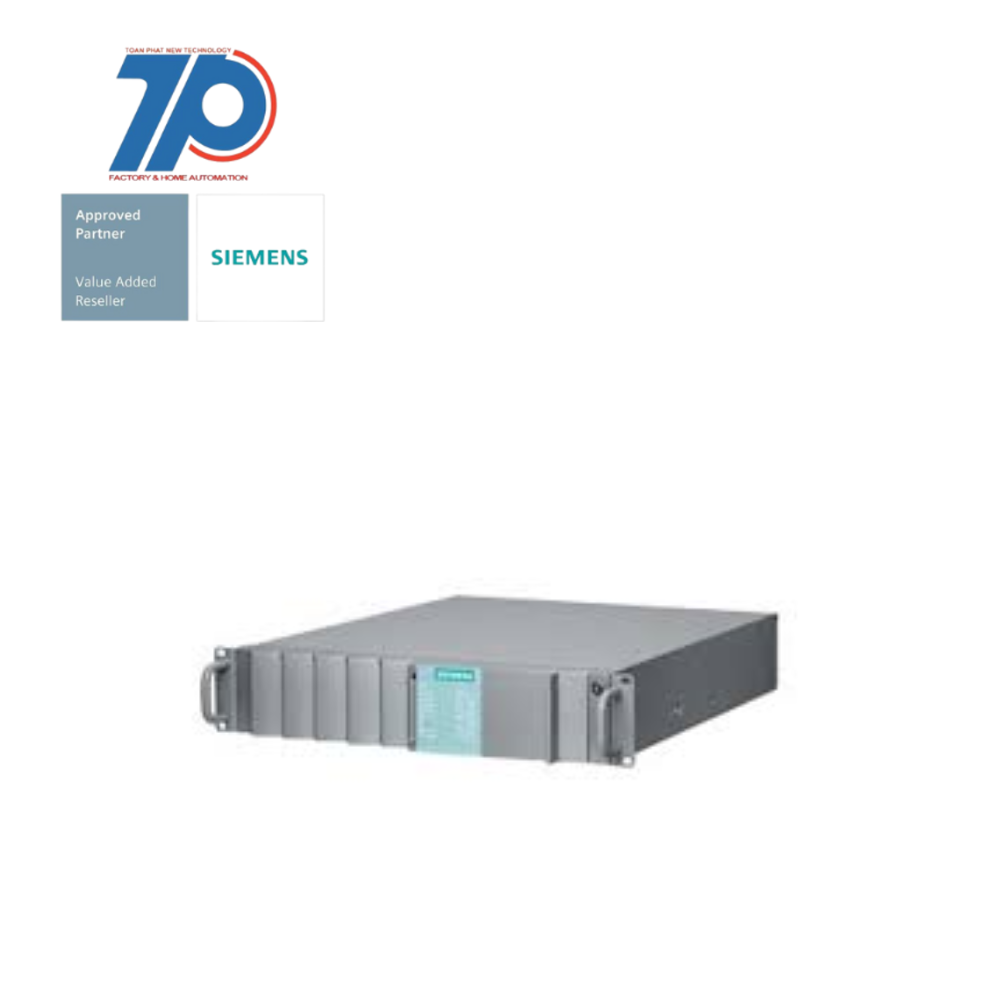

SIMATIC IPC647D

Technical Features:

Commercial Benefits:

The SIMATIC IPC647D offers a range of technical features that make it a versatile and reliable choice for various applications. With its rack PC form factor and 19" size, it provides a compact and space-saving solution. The 2x Gbit Ethernet (IE/PN) with RJ45 connectors ensures high-speed and reliable network connectivity. The DVI-I and display ports allow for flexible display options. The COM 1, PS/2, and audio ports provide additional connectivity options. With 4x USB 3.0 ports, including 1x internal, and 3x USB 2.0 ports, the IPC647D offers ample USB connectivity for peripherals. The temperature and fan monitoring feature ensures optimal performance and reliability. The built-in watchdog and card retainer add an extra layer of security and protection.

    • Form Factor: Rack PC
    • Size: 19", 2 HU
    • 2x Gbit Ethernet (IE/PN), RJ45
    • 1x DVI-I
    • 2x display ports
    • 1x COM 1
    • 2x PS/2
    • Audio
    • 4x USB 3.0, incl. 1x internal
    • 3x USB 2.0
    • Temperature and fan monitoring
    • Watchdog
    • Card retainer
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Height88 mm
IO link masterfalse
Number of free AGP-slots0
Radio standard GSMfalse
Suitable for safety functionsfalse
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Supporting protocol for EtherCATfalse
Number of HW-interfaces wireless0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse
Width430 mm
Radio standard GPRSfalse
Front built-in possiblefalse
Number of free PCMCIA-slots0
Supporting protocol for Foundation Fieldbusfalse
Operating temperature0 °C
Supporting protocol for DeviceNetfalse
Supporting protocol for DeviceNet Safetyfalse
Max. main memory32000 MB
Supporting protocol for SUCONETfalse
Radio standard Bluetoothfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Supporting protocol for Data-Highwayfalse
Depth444 mm
Supporting protocol for KNXfalse
Number of HW-interfaces serial TTY0
Number of free ISA-slots0
Operating temperature50 °C
With floppy disc drivefalse
Supporting protocol for Modbusfalse
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Radio standard UMTSfalse
