Material ID: 6AG4141-1AA14-0FA0

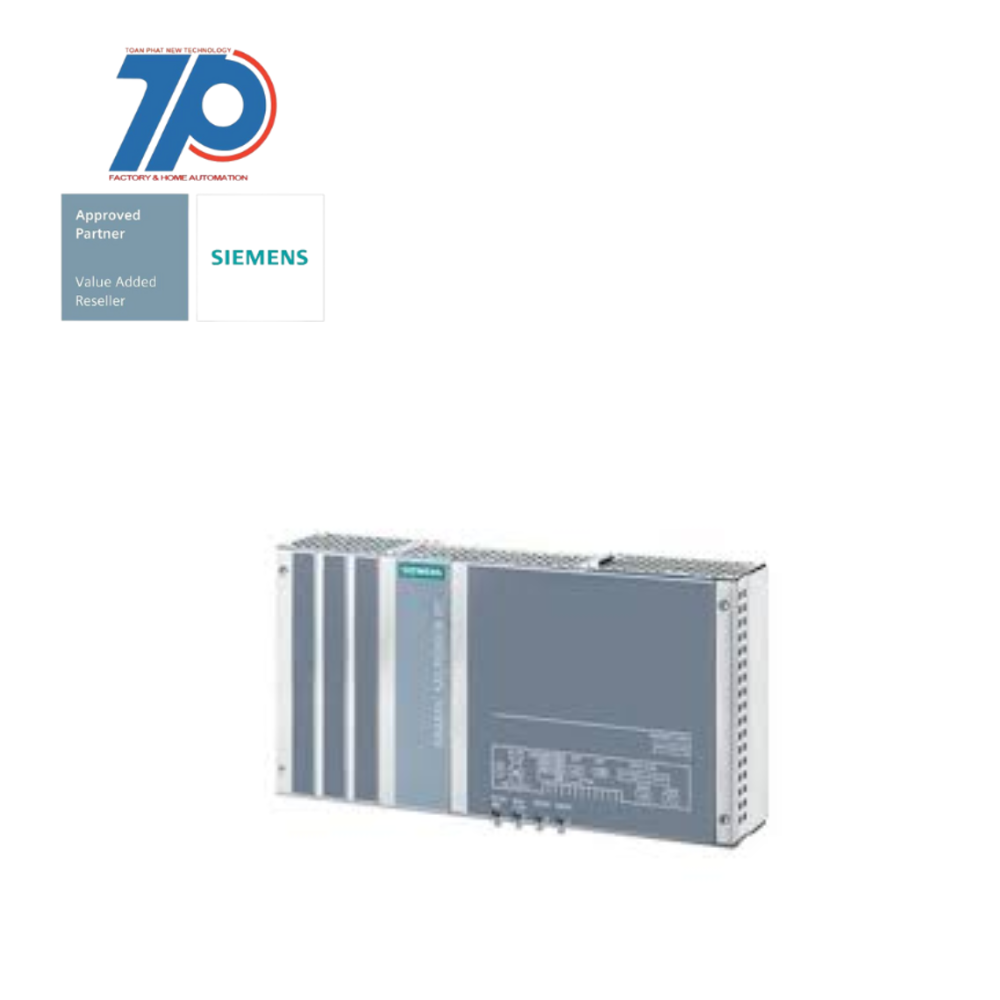

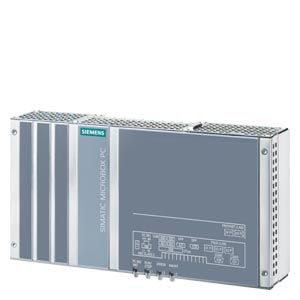

SIMATIC IPC427E (Microbox PC)
The SIMATIC IPC427E is a powerful embedded IPC that offers a versatile configuration and requires no maintenance. It provides machine, plant, and control cabinet builders with a compact and turnkey PC platform for various applications.
Technical Features:
Commercial Benefits:
The SIMATIC IPC427E is suitable for a wide range of applications, from automation computers integrated in TIA to C/C++-based automation solutions with VxWorks, as well as standalone applications for general IT use. It is designed for use in industrial applications, as well as domestic, business, and commercial environments, including building automation systems and public facilities. The device is fan-free, increasing system availability, and can be ordered with SIMATIC HMI packages (WinCC SCADA or WinCC Advanced/Professional) at a discounted price.
- HD graphic onboard
- 4x USB V3.0 (high current)
- PCIE (optional)
- Celeron G3902E
- 3x Gbit Ethernet (IE/PN)
- Working memory 4GB
- 1x PCIe (x4)
- Windows 7 Ultimate SP1, 64 Bit, MUI (ge, en, es, fr, it)
- Internal mass storage: 240 GB Solid-State Drive SATA
- 24 V DC industrial power supply
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of HW-interfaces industrial Ethernet | 3 |
| Supporting protocol for PROFINET CBA | false |
| Height | 133 mm |
| Supporting protocol for Modbus | false |
| Max. main memory | 4000 MB |
| Rack-assembly possible | false |
| With sound card | false |
| Processor clock rate | 1.6 GHz |
| Number of free PCIe-slots | 1 |
| With graphic card | true |
| Number of free PCI-slots | 0 |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Radio standard UMTS | false |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFIBUS | false |
| With hard disc | true |
| Number of HW-interfaces USB | 4 |
| Supply voltage DC | 28.8 V |
| Front built-in possible | false |
| Supporting protocol for PROFINET IO | false |
| Number of HW-interfaces parallel | 0 |
| IO link master | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of free PCMCIA-slots | 0 |
| Number of storage media bays | 0 |
| Supply voltage DC | 19.2 V |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for INTERBUS | false |
| Width | 262 mm |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Operating temperature | 0 °C |
| With floppy disc drive | false |
| Number of HW-interfaces RS-232 | 0 |
| Depth | 55.5 mm |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of free ISA-slots | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for other bus systems | false |
| Supporting protocol for EtherNet/IP | false |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| With optical drive | false |
| Wall mounting/direct mounting | true |
| Number of other free slots | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Construction type housing | Box |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Operating temperature | 45 °C |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Number of free AGP-slots | 0 |
| Radio standard WLAN 802.11 | false |
| Degree of protection (IP) | IP20 |
| Number of HW-interfaces serial TTY | 0 |
| Number of interfaces PROFINET | 3 |
| Supporting protocol for ASI | false |
| Supporting protocol for EtherCAT | false |
| With other storage media | false |
| Rail mounting possible | true |
