6AG4141-1AA17-0FA0

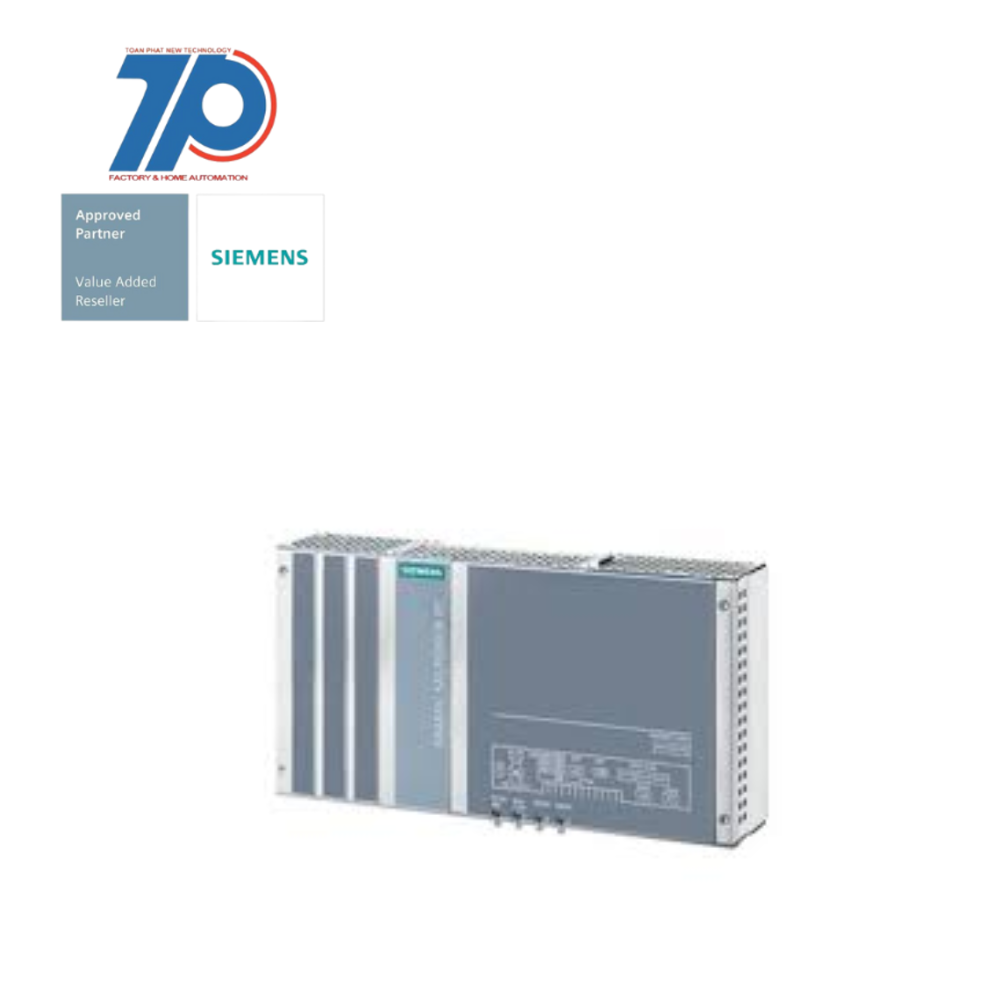

SIMATIC IPC427E (Microbox PC)

Technical Features:

Commercial Benefits:

The SIMATIC IPC427E is a powerful embedded IPC that offers versatile configuration options. It is designed to be maintenance-free and provides machine, plant, and control cabinet builders with a high-performance, compact, and turnkey PC platform. This PC can be used at machine or process level, or in the industrial environment. It supports a wide range of applications, from automation computers fully integrated in TIA to C/C++-based automation solutions with VxWorks, as well as "standalone" applications for general IT applications.

For software products that require Windows 7 Ultimate, the combination of Windows 7 Ultimate is available preinstalled on the hard disk or SSD. The SIMATIC IPC427E has the CE mark for use in industrial applications as well as in domestic, business, and commercial environments. It is suitable for building automation systems or public facilities. The device also has important marine approvals.

Thanks to its fan-free design and the use of SIMATIC PC CFast memories or SSDs, the SIMATIC IPC427E has no rotating parts, which increases system availability. It can be ordered in conjunction with WinCC SCADA or WinCC (Advanced, Professional) as SIMATIC HMI packages with a price advantage.

• • HD graphic onboard
  • 4x USB V3.0 (high current)
  • PCIE (optional)
  • Celeron G3902E
  • 3x Gbit Ethernet (IE/PN)
  • w/o mounting accessories
  • working memory 4GB
  • w/o RS232/485
  • 1x PCIe (x4)
  • Windows 10 IoT Enterprise 2016 LTSB (64Bit) f. Celeron, I3/I5
  • w/o replaceable mass storage
  • Internal mass storage: 240 GB Solid-State Drive SATA
  • w/o SIMATIC Software
  • 24 V DC industrial power supply
