Material ID: 6AG4141-5AB14-0FA0

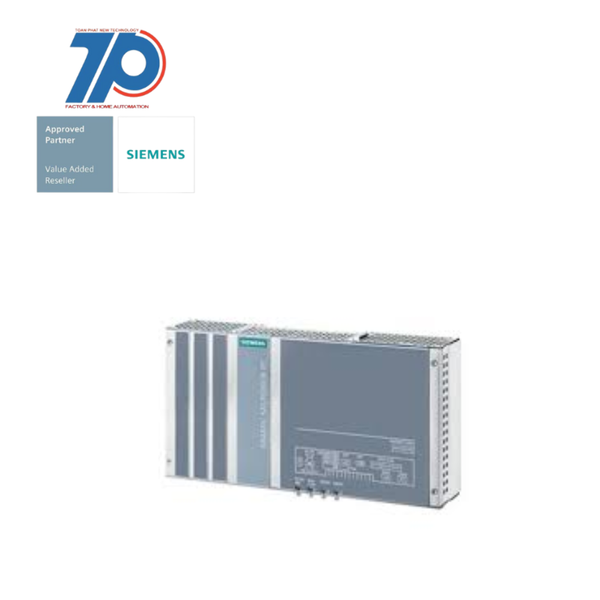

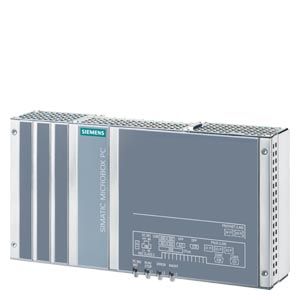

SIMATIC IPC427E (Microbox PC)

Technical Features:

Commercial Benefits:

The SIMATIC IPC427E is a powerful embedded IPC that offers versatile configuration options. It is maintenance-free and provides machine, plant, and control cabinet builders with a high-performance, compact, and turnkey PC platform. It can be used at machine or process level, as well as in the industrial environment.

The SIMATIC IPC427E supports a wide range of applications, from automation computers fully integrated in TIA to C/C++-based automation solutions with VxWorks. It is also suitable for "standalone" applications for general IT purposes.

For software products that require Windows 7 Ultimate, the SIMATIC IPC427E comes preinstalled with Windows 7 Ultimate on a hard disk or SSD.

The SIMATIC IPC427E is CE marked for use in industrial applications, as well as in domestic, business, and commercial environments. It is suitable for building automation systems and public facilities. It also has important marine approvals.

Thanks to its fan-free design and the use of SIMATIC PC CFast memories or SSDs, the SIMATIC IPC427E has no rotating parts, which increases system availability.

The SIMATIC IPC427E can be ordered with WinCC SCADA or WinCC (Advanced, Professional) as SIMATIC HMI packages, offering a price advantage.

    • HD graphic onboard
    • 4x USB V3.0 (high current)
    • PCIE (optional)
    • Core i5-6442EQ
    • 3x Gbit Ethernet (IE/PN)
    • Working memory 8GB
    • 1x PCIe (x4)
    • Windows 7 Ultimate SP1, 64 Bit, MUI (ge, en, es, fr, it)
    • Internal mass storage: 240 GB Solid-State Drive SATA
    • 24 V DC industrial power supply
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of free PCIe-slots1
Number of HW-interfaces wireless0
Radio standard GSMfalse
Radio standard Bluetoothfalse
Max. main memory8000 MB
Supporting protocol for PROFINET IOfalse
IO link masterfalse
With sound cardfalse
Number of free AGP-slots0
Radio standard GPRSfalse
With hard disctrue
Supporting protocol for PROFIBUSfalse
Supporting protocol for INTERBUS-Safetyfalse
Width262 mm
Supporting protocol for DeviceNetfalse
Supporting protocol for Foundation Fieldbusfalse
Number of storage media bays0
Supporting protocol for KNXfalse
Number of HW-interfaces parallel0
Number of HW-interfaces USB4
Supporting protocol for DeviceNet Safetyfalse
Processor clock rate1.9 GHz
Supporting protocol for SERCOSfalse
Operating temperature0 °C
Number of interfaces PROFINET3
Supporting protocol for Modbusfalse
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Supporting protocol for CANfalse
Construction type housingBox
Number of free PCI-slots0
Supporting protocol for other bus systemsfalse
Number of free PCMCIA-slots0
With floppy disc drivefalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Wall mounting/direct mountingtrue
With other storage mediafalse
Number of other free slots0
With graphic cardtrue
Front built-in possiblefalse
Supply voltage DC28.8 V
Degree of protection (IP)IP20
Number of HW-interfaces RS-4220
Number of free ISA-slots0
Supporting protocol for ASIfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for EtherCATfalse
Rack-assembly possiblefalse
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Number of HW-interfaces industrial Ethernet3
Number of HW-interfaces serial TTY0
Height133 mm
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Supply voltage DC19.2 V
Supporting protocol for LONfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFIsafefalse
Supporting protocol for AS-Interface Safety at Workfalse
With optical drivefalse
Number of HW-interfaces other0
Depth55.5 mm
Operating temperature45 °C
