Material ID: 6AG4141-5AB17-0FA0

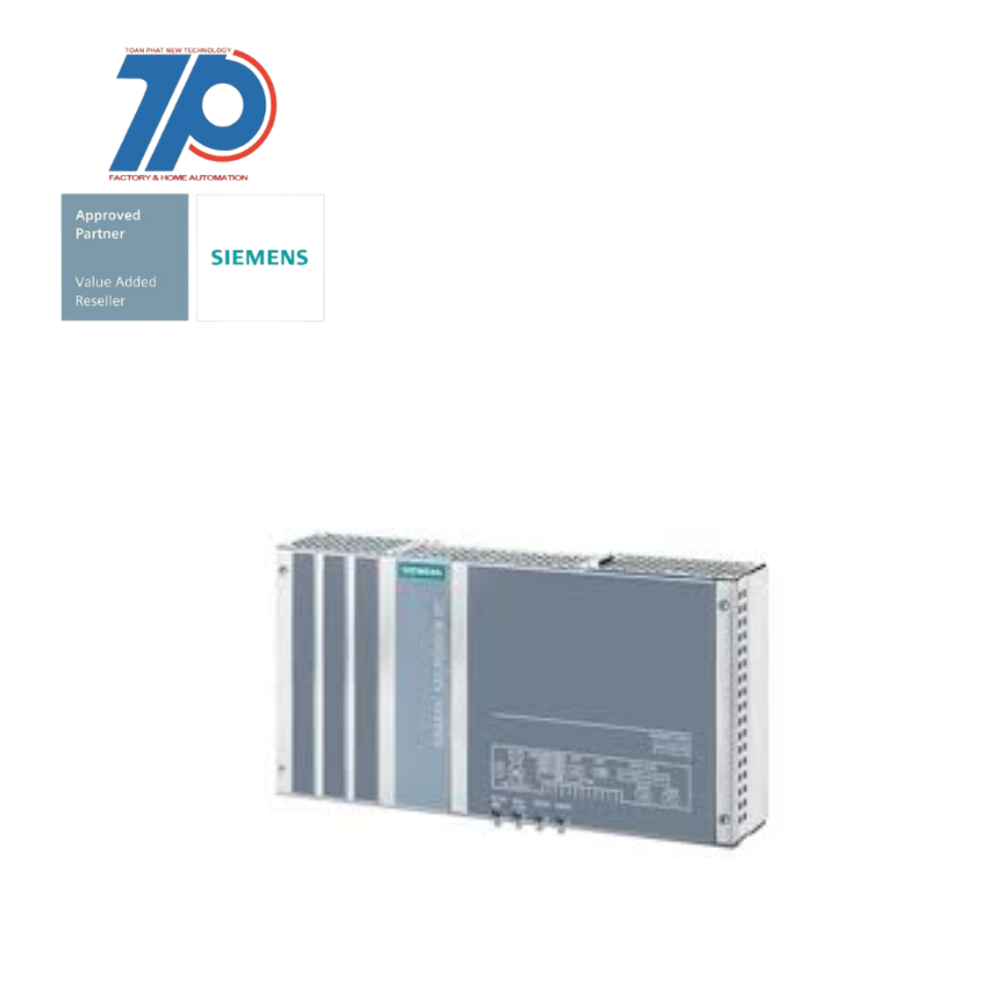

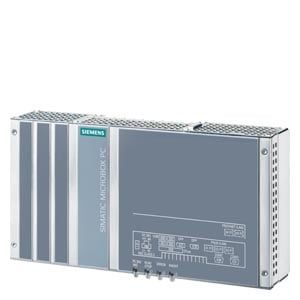

SIMATIC IPC427E (Microbox PC)

The SIMATIC IPC427E is a powerful embedded IPC that offers versatile configuration options. It is designed for machine, plant, and control cabinet builders, providing a high-performance and compact PC platform for various applications in the industrial environment.

Technical Features:

Commercial Benefits:

The SIMATIC IPC427E offers the following commercial benefits:

    • HD graphic onboard
    • 4x USB V3.0 (high current)
    • PCIE (optional)
    • Core i5-6442EQ
    • 3x Gbit Ethernet (IE/PN)
    • Working memory 8GB
    • 1x PCIe (x4)
    • Windows 10 IoT Enterprise 2016 LTSB (64Bit) f. Celeron, I3/I5
    • Internal mass storage: 240 GB Solid-State Drive SATA
    • 24 V DC industrial power supply
    • Maintenance-free design
    • Turnkey PC platform
    • Wide application spectrum
    • Compatibility with TIA automation computers
    • Support for C/C++-based automation solutions with VxWorks
    • Availability of "standalone" applications for general IT applications
    • Preinstalled Windows 7 Ultimate for software products that require it
    • CE mark for industrial, domestic, business, and commercial use
    • Marine approvals
    • Fan-free design for increased system availability
    • Option to order with SIMATIC HMI packages (WinCC SCADA or WinCC)
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces industrial Ethernet3
Number of free AGP-slots0
Supporting protocol for KNXfalse
Number of storage media bays0
Processor clock rate1.9 GHz
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Supporting protocol for other bus systemsfalse
Supporting protocol for Modbusfalse
IO link masterfalse
Number of interfaces PROFINET3
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Operating temperature0 °C
Degree of protection (IP)IP20
Depth55.5 mm
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
Max. main memory8000 MB
Number of HW-interfaces RS-2320
Number of other free slots0
Number of HW-interfaces other0
Supply voltage DC28.8 V
Number of free PCMCIA-slots0
Supporting protocol for INTERBUSfalse
Radio standard GSMfalse
Supporting protocol for CANfalse
Number of HW-interfaces parallel0
Supporting protocol for SUCONETfalse
Construction type housingBox
Radio standard UMTSfalse
Number of free ISA-slots0
Number of HW-interfaces USB4
With hard disctrue
Supporting protocol for PROFIBUSfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
Front built-in possiblefalse
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingtrue
With other storage mediafalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
With sound cardfalse
Supporting protocol for EtherNet/IPfalse
With floppy disc drivefalse
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-Safetyfalse
Width262 mm
Number of free PCI-slots0
Radio standard GPRSfalse
Operating temperature45 °C
Supply voltage DC19.2 V
Supporting protocol for EtherCATfalse
Supporting protocol for DeviceNet Safetyfalse
Radio standard WLAN 802.11false
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4850
With optical drivefalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Height133 mm
With graphic cardtrue
Number of free PCIe-slots1
