Material ID: 6AV2124-0QC02-0AX0

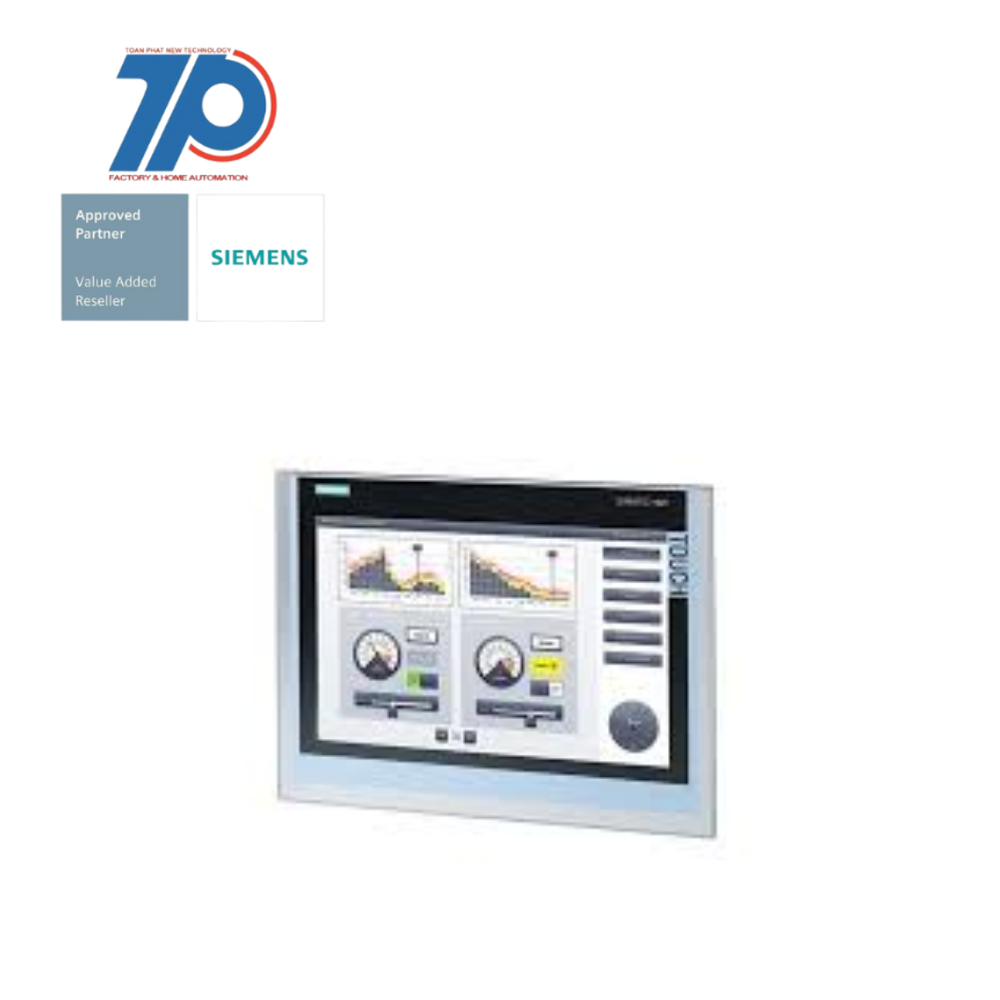

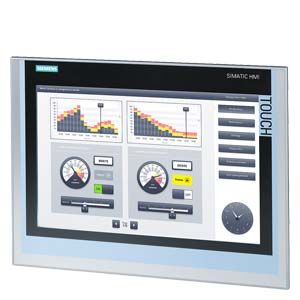

Spare Part: SIMATIC HMI TP1500 Comfort

The SIMATIC HMI TP1500 Comfort is a spare part designed for high-performance visualization tasks at the machine level.

Technical Features:

Commercial Benefits:

The SIMATIC HMI TP1500 Comfort offers the following commercial benefits:

    • Comfort Panel
    • Touch operation
    • 15" widescreen TFT display
    • 16 million colors
    • PROFINET interface
    • MPI/PROFIBUS DP interface
    • 24 MB configuration memory
    • Windows CE 6.0
    • Configurable as of WinCC Comfort V11 SP2
    • Successor: 6AV2124-0QC02-0AX1 configurable from V14 SP1
    • High-performance visualization
    • Enhanced user experience with touch operation
    • Clear and vibrant display with 16 million colors
    • Seamless integration with PROFINET and MPI/PROFIBUS DP interfaces
    • Ample configuration memory of 24 MB
    • Compatible with Windows CE 6.0
    • Easy configuration starting from WinCC Comfort V11 SP2
    • Smooth transition to successor model 6AV2124-0QC02-0AX1 from V14 SP1
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of buttons with LED0
Operating temperature50 °C
Radio standard GPRSfalse
Number of HW-interfaces RS-4220
With numeric keyboardtrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for other bus systemstrue
Supporting protocol for EtherNet/IPtrue
Number of pixels, horizontal1280
Type of displayTFT
With message indicationtrue
Supporting protocol for Data-Highwayfalse
Supporting protocol for DeviceNet Safetyfalse

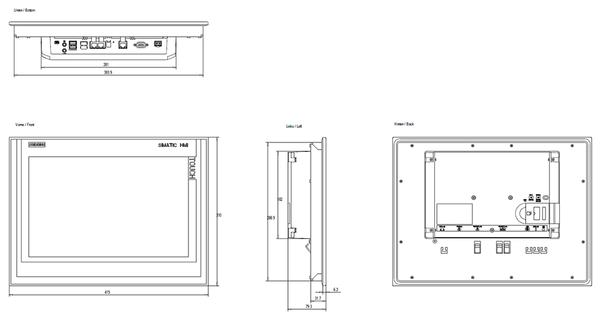

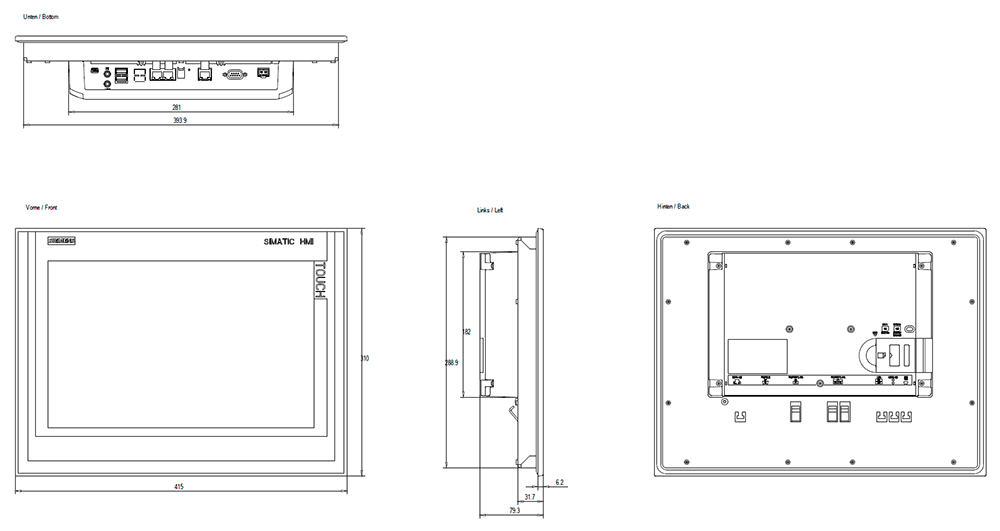

Width of the front415 mm
Rail mounting possiblefalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Degree of protection (IP), front sideIP65
Supporting protocol for SERCOSfalse
Number of colours of the display16777216
Radio standard GSMfalse
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
With printer outputtrue
Supporting protocol for AS-Interface Safety at Workfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFIBUStrue
With alpha numeric keyboardtrue
Radio standard WLAN 802.11false
Height of the front310 mm
Number of system buttons0
Radio standard Bluetoothfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
IO link masterfalse
Number of HW-interfaces industrial Ethernet2
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Built-in depth75 mm
Supply voltage DC19.2 V
Supporting protocol for INTERBUSfalse
With recipestrue
Number of HW-interfaces USB2
Supporting protocol for PROFINET CBAfalse
Touch technologyResistive touch
Wall mounting/direct mountingfalse
Supply voltage DC28.8 V
Colour displaytrue
Process value representation (output) possibletrue
Number of pixels, vertical800
Supporting protocol for LONfalse
Number of HW-interfaces other0
Supporting protocol for TCP/IPtrue
Process default value (input) possibletrue
With SW interfacesfalse
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Number of grey-scales/blue-scales of display0
Supporting protocol for DeviceNetfalse
Number of function buttons, programmable0
Supporting protocol for CANfalse
Number of interfaces PROFINET2
Number of online languages32
Supporting protocol for PROFINET IOtrue
Additional software components, loadabletrue
Operating temperature0 °C
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Useful project memory/user memory24000 kByte
Supporting protocol for KNXfalse
Screen diagonal15.4 inch
Number of password levels50
