Material ID: 6AV2124-0QC13-0AX0

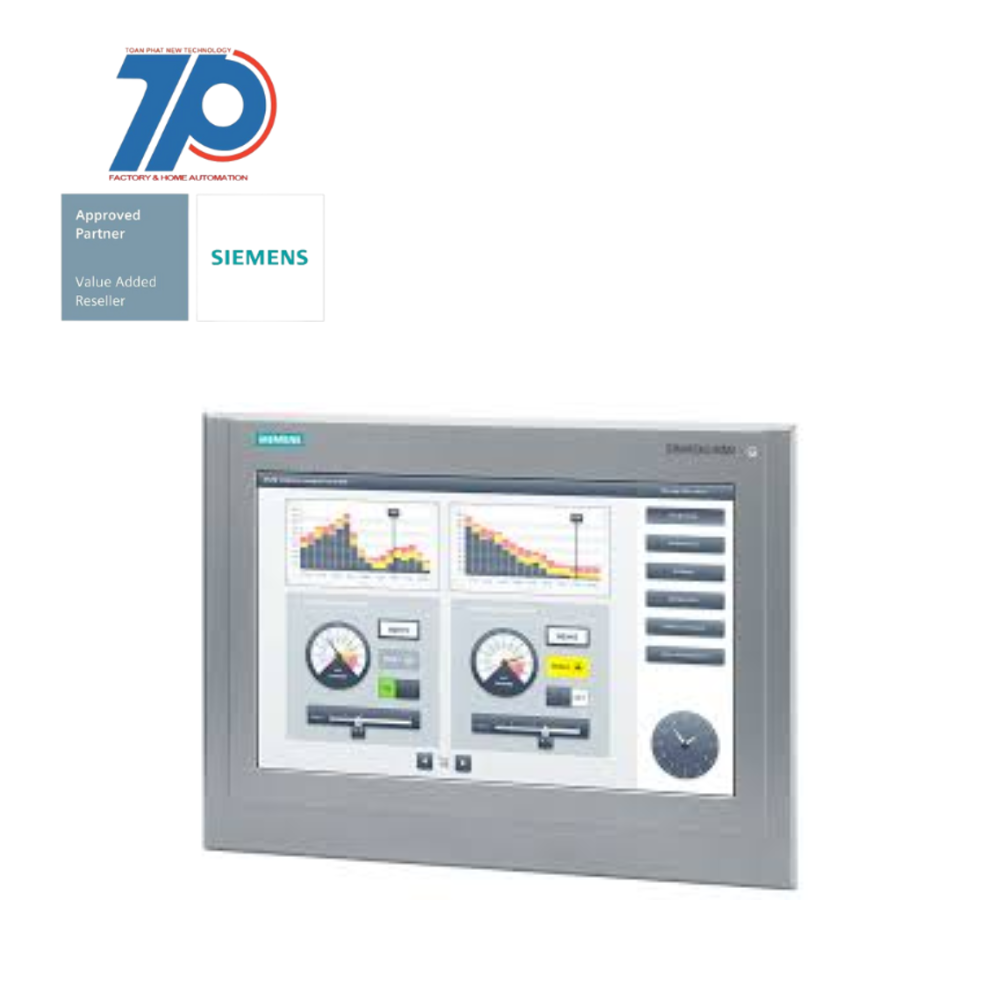

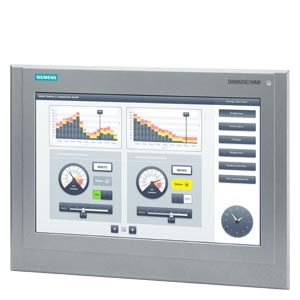

SIMATIC HMI TP1500 Comfort Outdoor

The SIMATIC HMI TP1500 Comfort Outdoor is a high-performance visualization panel designed for machine-level tasks. It features a 15" widescreen TFT display with 16 million colors, providing a vibrant and detailed visual experience.

Technical Features:

Commercial Benefits:

The SIMATIC HMI TP1500 Comfort Outdoor offers several commercial benefits:

    • Touch operation for intuitive and user-friendly interaction.
    • PROFINET interface for seamless integration into industrial networks.
    • MPI/PROFIBUS DP interface for versatile communication options.
    • 12 MB configuration memory for storing project data.
    • Windows CE 6.0 operating system for reliable performance.
    • Configurable from WinCC Comfort V13 SP1 for easy setup and customization.
    • HSP (Hardware Support Package) included for comprehensive support.
    • Designed for outdoor applications, making it suitable for various industries.
    • Certified for many industries, ensuring compliance with industry standards.
    • Appealing and dynamic design enhances the visual appeal of your machine.
    • Intuitive touch operation improves user experience and productivity.
    • Seamless integration into industrial networks simplifies installation and maintenance.
    • Reliable performance and support ensure uninterrupted operation.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces other0
With alpha numeric keyboardtrue
Number of HW-interfaces RS-4221
Wall mounting/direct mountingfalse
Supporting protocol for Foundation Fieldbusfalse
Radio standard GSMfalse
Radio standard WLAN 802.11false
Supporting protocol for EtherNet/IPtrue
Number of function buttons, programmable0
Number of grey-scales/blue-scales of display0
Additional software components, loadabletrue
Number of HW-interfaces USB2
Supporting protocol for PROFINET IOtrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for DeviceNetfalse
With numeric keyboardtrue
Built-in depth77 mm
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUStrue
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Supporting protocol for DeviceNet Safetyfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Radio standard Bluetoothfalse
With SW interfacesfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of password levels50
With recipestrue
Supporting protocol for SUCONETfalse
Width of the front415 mm
Radio standard GPRSfalse
Screen diagonal15.4 inch
Supporting protocol for CANfalse
With message indicationtrue
Supply voltage DC28.8 V
Operating temperature-30 °C
Process default value (input) possibletrue
Number of HW-interfaces RS-2320
Supply voltage DC19.2 V
Number of buttons with LED0
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of interfaces PROFINET2
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Number of system buttons0
Rail mounting possiblefalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Number of HW-interfaces industrial Ethernet2
Height of the front310 mm
IO link masterfalse
Number of colours of the display16777216
Supporting protocol for SERCOSfalse
Useful project memory/user memory12000 kByte
Number of pixels, horizontal1280
Degree of protection (IP), front sideIP66
Number of pixels, vertical800
Process value representation (output) possibletrue
Suitable for safety functionsfalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Operating temperature60 °C
Supporting protocol for LONfalse
Number of online languages32
Supporting protocol for KNXfalse
Colour displaytrue
Supporting protocol for TCP/IPtrue
