Material ID: 6AV2124-0UC02-0AX0

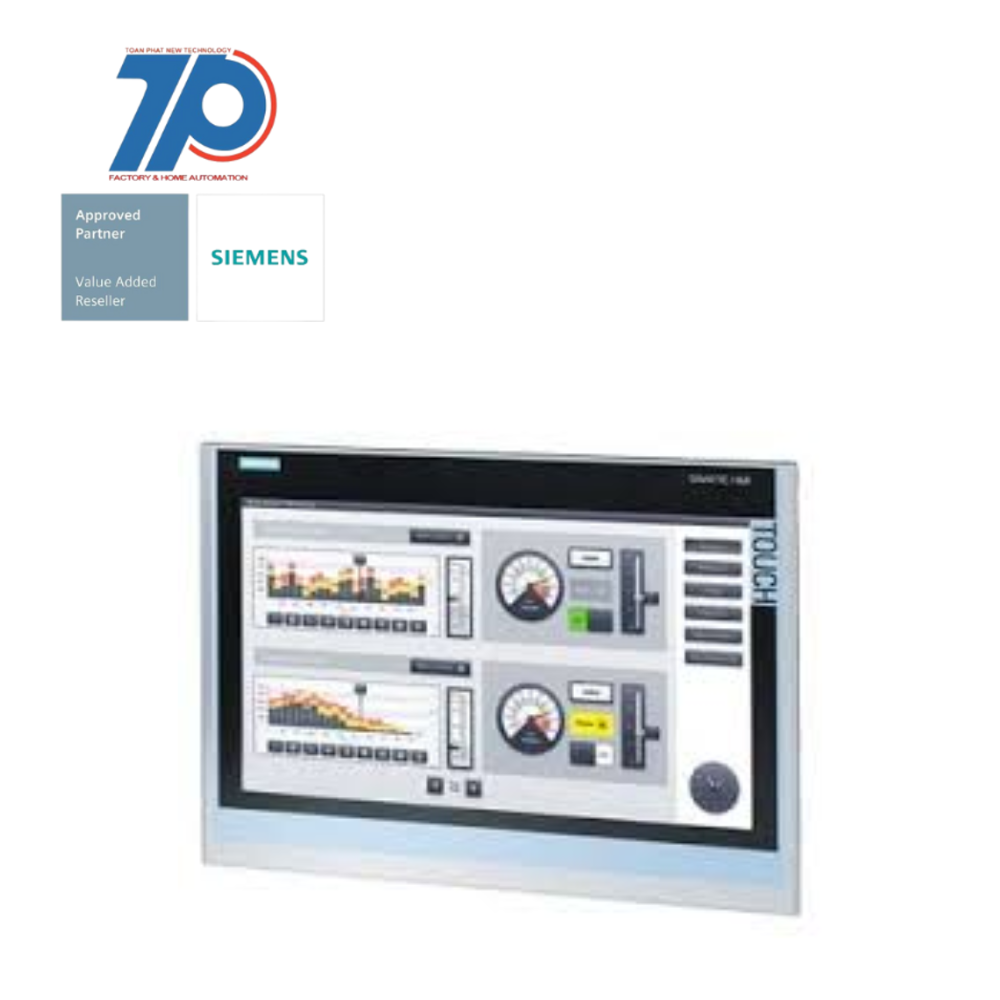

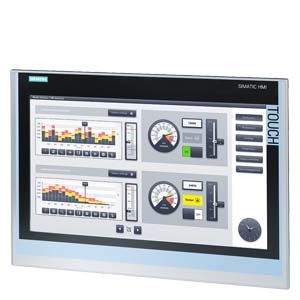

Spare Part: SIMATIC HMI TP1900 Comfort

The SIMATIC HMI TP1900 Comfort is a spare part designed for high-performance visualization tasks at the machine-level. It features a 19" widescreen TFT display with a resolution of 16 million colors, providing a vibrant and detailed visual experience.

Key Technical Features:

Commercial Benefits:

    • Touch operation for intuitive and user-friendly interaction.
    • PROFINET interface for seamless integration into industrial networks.
    • MPI/PROFIBUS DP interface for flexible communication with other devices.
    • 24 MB configuration memory for storing and accessing project data.
    • Windows CE 6.0 operating system for reliable and efficient performance.
    • Configurable as of WinCC Comfort V11 SP2, ensuring compatibility with the latest software.
    • Successor: 6AV2124-0UC02-0AX1, configurable from V14 SP1.
    • Enhanced productivity and efficiency with intuitive touch operation.
    • Seamless integration into existing industrial networks, thanks to the PROFINET interface.
    • Flexible communication options with other devices through the MPI/PROFIBUS DP interface.
    • Ample configuration memory for storing and accessing project data.
    • Reliable and efficient performance with the Windows CE 6.0 operating system.
    • Compatibility with the latest software for easy configuration and updates.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Degree of protection (IP), front sideIP65
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
With alpha numeric keyboardtrue
Supporting protocol for EtherNet/IPtrue
Number of pixels, vertical768
Supporting protocol for SafetyBUS pfalse
Number of pixels, horizontal1366
Suitable for safety functionsfalse
Width of the front483 mm
Supporting protocol for PROFIBUStrue
Supporting protocol for SUCONETfalse
Process value representation (output) possibletrue
Radio standard UMTSfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of buttons with LED0
Rail mounting possiblefalse
Number of HW-interfaces RS-4220
Number of password levels50
Number of HW-interfaces parallel0
Number of online languages32
With message indicationtrue
Radio standard GPRSfalse
Height of the front337 mm
Useful project memory/user memory24000 kByte
Operating temperature0 °C
Supporting protocol for DeviceNet Safetyfalse
Number of grey-scales/blue-scales of display0
Type of displayTFT
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Supporting protocol for INTERBUSfalse
Process default value (input) possibletrue
Number of HW-interfaces RS-2320
Number of HW-interfaces USB2
Supporting protocol for SERCOSfalse
With SW interfacesfalse
Supporting protocol for AS-Interface Safety at Workfalse
Colour displaytrue
Supply voltage DC28.8 V
IO link masterfalse
With numeric keyboardtrue
Supporting protocol for other bus systemstrue
Supporting protocol for Foundation Fieldbusfalse
Operating temperature45 °C
Supporting protocol for DeviceNetfalse
Number of function buttons, programmable0
With printer outputtrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
Additional software components, loadabletrue
Number of colours of the display16777216
Number of HW-interfaces other0
Supporting protocol for PROFINET IOtrue
Supporting protocol for KNXfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Radio standard WLAN 802.11false
With recipestrue
Supply voltage DC19.2 V
Built-in depth75 mm
Screen diagonal18.5 inch
Wall mounting/direct mountingfalse
Supporting protocol for PROFIsafefalse
Number of system buttons0
Number of HW-interfaces wireless0
Supporting protocol for TCP/IPtrue
Number of interfaces PROFINET2
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Touch technologyResistive touch
