Material ID: 6AV2124-1DC01-0AX0

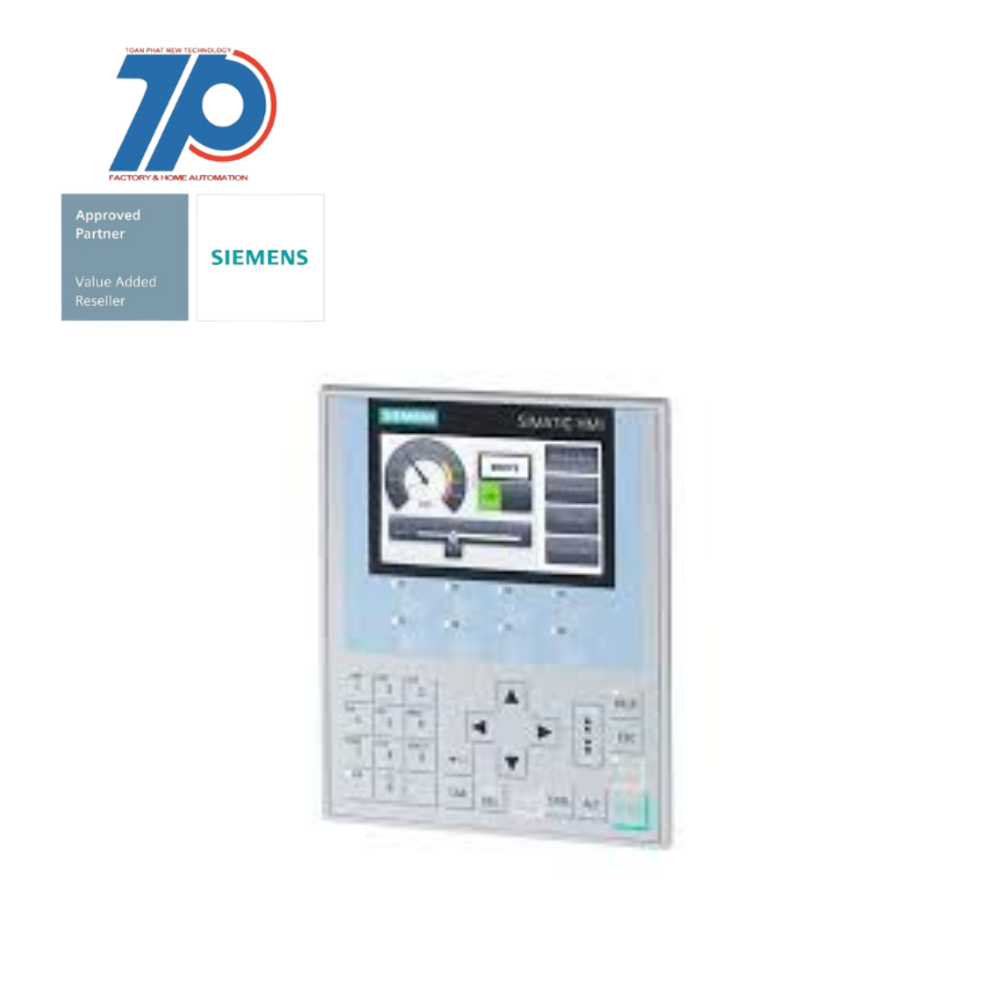

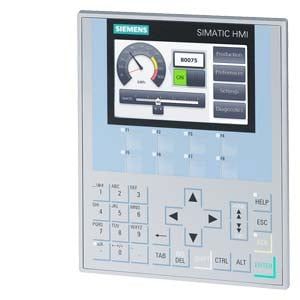

SIMATIC HMI KP400 Comfort

The SIMATIC HMI KP400 Comfort is a key-operated Comfort Panel with a 4" widescreen TFT display capable of displaying 16 million colors. It features a PROFINET interface and an MPI/PROFIBUS DP interface for seamless communication. With 4 MB configuration memory and running on Windows CE 6.0, it can be easily configured using WinCC Comfort V11.

Technical Features:

Commercial Benefits:

The SIMATIC HMI KP400 Comfort is designed to handle high-performance visualization tasks at the machine level. Its key-operated design provides intuitive and efficient operation. The 4" widescreen TFT display with 16 million colors ensures vibrant and clear visualizations. The PROFINET and MPI/PROFIBUS DP interfaces enable seamless communication with other devices. With 4 MB configuration memory and compatibility with WinCC Comfort V11, it offers easy and flexible configuration options.

    • Key operation
    • 4" widescreen TFT display
    • 16 million colors
    • PROFINET interface
    • MPI/PROFIBUS DP interface
    • 4 MB configuration memory
    • Windows CE 6.0
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Supporting protocol for LONfalse
Operating temperature0 °C
Degree of protection (IP), front sideIP65
Number of pixels, vertical272
Number of online languages32
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
Number of HW-interfaces other0
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemstrue
With recipestrue
Suitable for safety functionsfalse
Supporting protocol for AS-Interface Safety at Workfalse
Height of the front188 mm
Number of function buttons, programmable8
Number of pixels, horizontal480
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for TCP/IPtrue
Operating temperature50 °C
Number of system buttons28
Number of password levels50
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Process default value (input) possibletrue
Width of the front152 mm
Supporting protocol for SUCONETfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
With SW interfacesfalse
Number of buttons with LED8
Number of HW-interfaces serial TTY0
With printer outputtrue
Number of interfaces PROFINET1
Process value representation (output) possibletrue
Supporting protocol for PROFINET IOtrue
Additional software components, loadabletrue
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
With alpha numeric keyboardtrue
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Touch technologyNone
Supply voltage DC19.2 V
Supporting protocol for Foundation Fieldbusfalse
Screen diagonal4.3 inch
Supporting protocol for PROFIBUStrue
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Supporting protocol for KNXfalse
Number of HW-interfaces USB1
Number of grey-scales/blue-scales of display0
Supporting protocol for SERCOSfalse
Number of colours of the display16777216
Number of HW-interfaces parallel0
With numeric keyboardtrue
Rail mounting possiblefalse
Supporting protocol for EtherNet/IPtrue
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4221
Built-in depth48 mm
Type of displayTFT
Wall mounting/direct mountingfalse
Supply voltage DC28.8 V
With message indicationtrue
Useful project memory/user memory4000 kByte
Colour displaytrue
