Material ID: 6AV2124-2DC01-0AX0

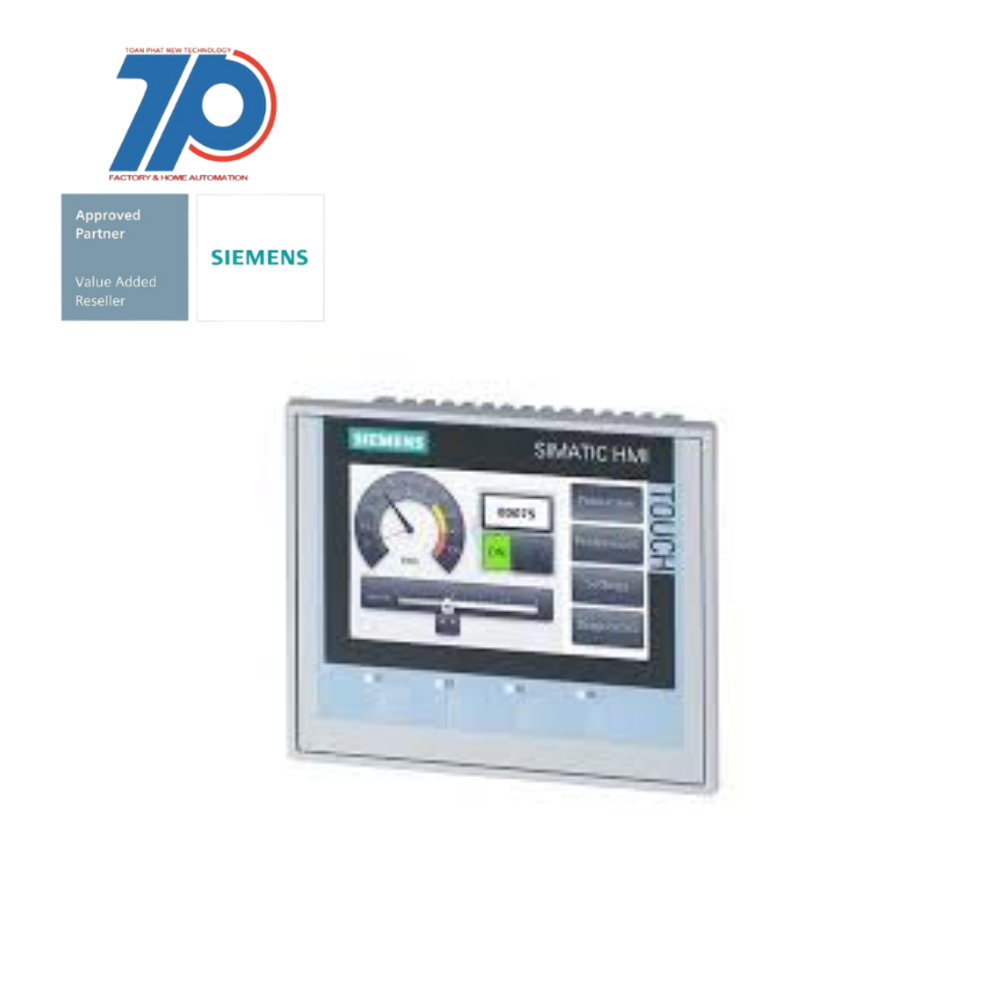

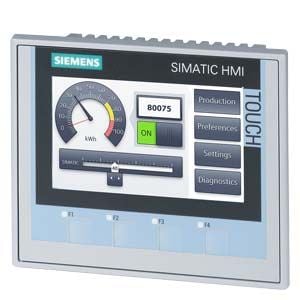

SIMATIC HMI KTP400 Comfort
The SIMATIC HMI KTP400 Comfort is a high-performance Comfort Panel designed for machine-level visualization tasks.
Technical Features:
Commercial Benefits:
The SIMATIC HMI KTP400 Comfort offers the following commercial benefits:
- Key/touch operation
- 4" widescreen TFT display
- 16 million colors
- PROFINET interface
- MPI/PROFIBUS DP interface
- 4 MB configuration memory
- Windows CE 6.0
- Configurable from WinCC Comfort V11
- High-performance visualization
- Easy and intuitive operation
- Clear and vibrant display with 16 million colors
- Seamless integration with PROFINET and MPI/PROFIBUS DP interfaces
- Ample configuration memory of 4 MB
- Compatible with Windows CE 6.0
- Configurable from WinCC Comfort V11
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet Safety | false |
| Operating temperature | 50 °C |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Rail mounting possible | false |
| With SW interfaces | false |
| Suitable for safety functions | false |
| Process default value (input) possible | true |
| Number of HW-interfaces RS-232 | 0 |
| Number of colours of the display | 16777216 |
| With message system (incl. buffer and confirmation) | true |
| Number of HW-interfaces RS-485 | 1 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Screen diagonal | 4.3 inch |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for EtherNet/IP | true |
| Width of the front | 140 mm |
| Height of the front | 116 mm |
| Type of display | TFT |
| Degree of protection (IP), front side | IP65 |
| Number of pixels, vertical | 272 |
| Supporting protocol for Modbus | true |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| Radio standard Bluetooth | false |
| With alpha numeric keyboard | true |
| Number of HW-interfaces parallel | 0 |
| Additional software components, loadable | true |
| Number of HW-interfaces wireless | 0 |
| Number of HW-interfaces USB | 1 |
| Supporting protocol for KNX | false |
| With printer output | true |
| Number of HW-interfaces serial TTY | 0 |
| Wall mounting/direct mounting | false |
| Useful project memory/user memory | 4000 kByte |
| Colour display | true |
| Supply voltage DC | 28.8 V |
| Built-in depth | 48 mm |
| Number of grey-scales/blue-scales of display | 0 |
| Number of HW-interfaces other | 0 |
| Number of buttons with LED | 4 |
| Supporting protocol for SERCOS | false |
| Operating temperature | 0 °C |
| Number of HW-interfaces RS-422 | 1 |
| Number of system buttons | 0 |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for TCP/IP | true |
| With message indication | true |
| Radio standard GPRS | false |
| Supporting protocol for CAN | false |
| Number of function buttons, programmable | 4 |
| With numeric keyboard | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for other bus systems | true |
| Supporting protocol for Foundation Fieldbus | false |
| With recipes | true |
| Number of password levels | 50 |
| Supply voltage DC | 19.2 V |
| Touch technology | Resistive touch |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for LON | false |
| Process value representation (output) possible | true |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Number of pixels, horizontal | 480 |
| Number of online languages | 32 |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supporting protocol for SUCONET | false |
| Radio standard UMTS | false |
