Material ID: 6AV2128-3GB06-0AX1

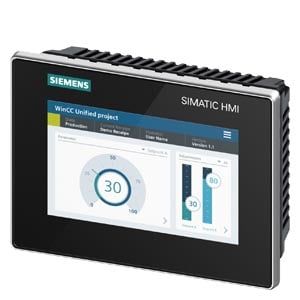

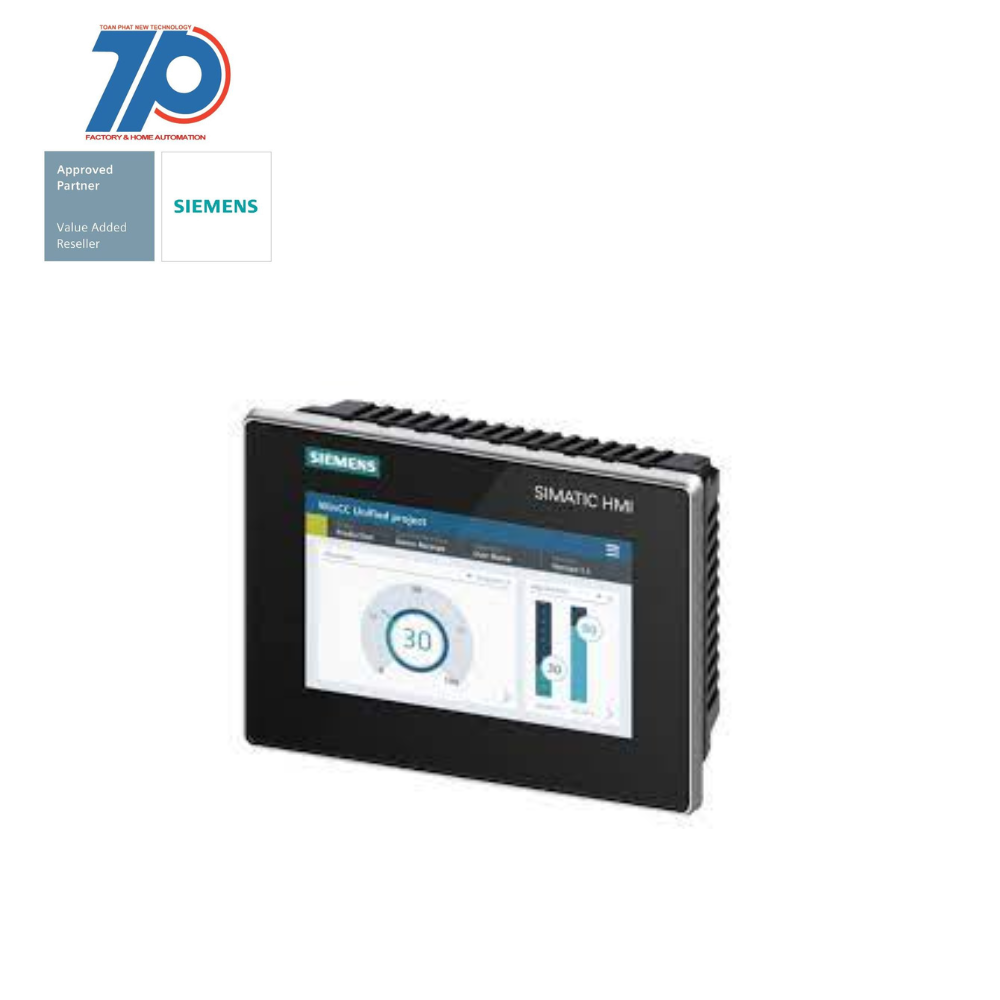

- SIMATIC HMI MTP700 Unified Comfort Panel
- Touch operation
- 7"" widescreen TFT display
- 16 million colors
- PROFINET interface
- Configurable as of WinCC Unified Comfort V16
- Contains open-source software provided free of charge
- SIMATIC HMI Unified Comfort Panels enable innovative operating concepts based on SIMATIC WinCC Unified visualization software
- All devices offer same number of interfaces and maximum operating comfort with modern multi-touch technology in sizes from 7 to 22 inches
- New hardware offers significantly more performance for implementing visualization, with system limits doubled at minimum and even tripled in some cases for larger applications
- Functionality can be extended by integrated Edge functionality as required
- Siemens guarantees IT security with proprietary operating system and ability to deactivate unnecessary functions or interfaces
- Every Unified Comfort Panel available in two design variants
- Standard design: Siemens and SIMATIC HMI branding with silver aluminum frame
Additional Information
Support
Technical Data
Manuals / Links
| Feature | VALUE | UNIT |
| Supporting protocol for CAN | FALSE | A |
| With recipes | TRUE | |
| Process default value (input) possible | TRUE | |
| With alpha numeric keyboard | TRUE | |
| Supporting protocol for ASI | FALSE | |
| With numeric keyboard | TRUE | |
| Supporting protocol for DeviceNet | FALSE | |
| Supporting protocol for INTERBUS | FALSE | |
| Radio standard GSM | FALSE | |
| Suitable for safety functions | FALSE | |
| Number of HW-interfaces wireless | 0 | |
| Supply voltage DC | 28.8 | |
| Supporting protocol for LON | FALSE | |
| Supporting protocol for SUCONET | FALSE | |
| Rail mounting possible | FALSE | |
| Radio standard GPRS | FALSE | |
| IO link master | FALSE | |
| Wall mounting/direct mounting | FALSE | |
| Radio standard UMTS | FALSE | |
| Operating temperature | 0 | |
| Number of HW-interfaces RS-485 | 1 | |
| Supporting protocol for INTERBUS-Safety | FALSE | |
| Height of the front | 158 | |
| Operating temperature | 50 | |
| Supporting protocol for PROFIBUS | FALSE | |
| Additional software components, loadable | TRUE | |
| Number of colours of the display | 16777216 | |
| Number of online languages | 32 | |
| Supporting protocol for DeviceNet Safety | FALSE | |
| Supporting protocol for PROFINET CBA | FALSE | |
| Number of pixels, horizontal | 800 | |
| Supporting protocol for SafetyBUS p | FALSE | |
| Degree of protection (IP), front side | EV006421 | |
| Supporting protocol for AS-Interface Safety at Work | FALSE | |
| Supply voltage DC | 19.2 | |
| Supporting protocol for TCP/IP | TRUE | |
| Supporting protocol for PROFINET IO | FALSE | |
| Radio standard WLAN 802.11 | FALSE | |
| Type of display | EV005759 | |
| Supporting protocol for Foundation Fieldbus | FALSE | |
| Number of HW-interfaces other | 0 | |
| Process value representation (output) possible | TRUE | |
| Supporting protocol for Data-Highway | FALSE | |
| Supporting protocol for EtherNet/IP | TRUE | |
| Number of HW-interfaces USB | 4 | |
| Number of HW-interfaces RS-232 | 0 | |
| Supporting protocol for other bus systems | TRUE | |
| Supporting protocol for SERCOS | FALSE | |
| Width of the front | 214 | |
| Radio standard Bluetooth | FALSE | |
| Supporting protocol for KNX | FALSE | |
| Number of HW-interfaces industrial Ethernet | 2 | |
| With message indication | TRUE | |
| Number of HW-interfaces serial TTY | 0 | |
| Number of HW-interfaces parallel | 0 | |
| With printer output | TRUE | |
| Number of pixels, vertical | 480 | |
| Colour display | TRUE | |
| Supporting protocol for Modbus | TRUE | |
| With message system (incl. buffer and confirmation) | TRUE | |
| Built-in depth | 64 | |
| Screen diagonal | 7 | |
| Number of HW-interfaces RS-422 | 0 | |
| Supporting protocol for PROFIsafe | FALSE | |
| Voltage type (supply voltage) | EV000461 |
Thông số kỹ thuật
| FEATURE | VALUE |
| Operating temperature | 50 °C |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for PROFIsafe | false |
| Number of colours of the display | 16777216 |
| Process value representation (output) possible | true |
| Number of pixels, vertical | 480 |
| Rail mounting possible | false |
| Type of display | TFT |
| Supporting protocol for TCP/IP | true |
| Supply voltage DC | 28.8 V |
| With message system (incl. buffer and confirmation) | true |
| Width of the front | 214 mm |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for CAN | false |
| Radio standard WLAN 802.11 | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Wall mounting/direct mounting | false |
| Radio standard GSM | false |
| IO link master | false |
| Supporting protocol for Modbus | true |
| With recipes | true |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for INTERBUS | false |
| Additional software components, loadable | true |
| With numeric keyboard | true |
| Height of the front | 158 mm |
| Supporting protocol for KNX | false |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| With printer output | true |
| Radio standard Bluetooth | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for Foundation Fieldbus | false |
| Colour display | true |
| Process default value (input) possible | true |
| Supporting protocol for SafetyBUS p | false |
| Number of online languages | 32 |
| Built-in depth | 64 mm |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Operating temperature | 0 °C |
| Radio standard GPRS | false |
| Supporting protocol for PROFINET CBA | false |
| Number of pixels, horizontal | 800 |
| Supporting protocol for Data-Highway | false |
| With message indication | true |
| Screen diagonal | 7 inch |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| With alpha numeric keyboard | true |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for ASI | false |
| Number of HW-interfaces USB | 4 |
| Supporting protocol for other bus systems | true |
| Supply voltage DC | 19.2 V |
